0.6HP-1HP JET-S Series Self-Priming Water Pump

Short Description:

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
JET-60S/SH 0.68 0.46 0.6 3.2 40 38 9
JET-80S/SH 0.88 0.6 0.8 4.2 46 45
JET-100S/SH 1.1 0.75 1 5.2 52 50

Product Detail

Product Tags

APPLICATION

product-description1

Jet-S series Self-priming Water Pump

With its cutting-edge technology and unmatched performance, this pump is designed to meet all your domestic and commercial water pumping needs.

The Jet-S Series water jet pumps are highly efficient and ruggedly designed to deliver exceptional results. Powered by a high-performance motor, the pump is capable of providing a reliable and steady flow of water in a variety of applications. Whether you need to pump water from a well, tank or irrigation system, the Jet-S Series jet water pump is the perfect solution.

One of the outstanding features of this pump is its versatility. It is equipped with a built-in pressure switch for automatic start and stop functions. This feature ensures that the pump only runs when water is needed, saving energy and resources. Additionally, the adjustable pressure control feature enables you to customize the water pressure to your specific requirements, giving you maximum control and convenience.

Jet-S Series water jet pumps are also engineered to last. It is made of high-quality materials that can withstand continuous operation and is durable. Its corrosion-resistant components ensure longevity, making it ideal for both indoor and outdoor use. Plus, its compact design makes installation a breeze, delivering powerful performance while taking up minimal space.

Safety is also a top priority for Jet-S Series water jet pumps. With its built-in thermal overload protection, the pump will automatically shut off if it overheats, preventing any potential damage. This feature provides peace of mind knowing your pump is protected and running smoothly.

Whether you need to boost your shower pressure, supply your garden, or move water from one place to another, the Jet-S Series Jet Pump is the ultimate solution. Experience unrivaled performance, reliability and convenience with this exceptional water pump.

WORKING CONDITIONS

Max Suction: 9M
Max Liquid Temperature: 50○C
Max Ambient Temperature: +45○C
Continuous duty

PUMP

Pump Body: Cast Iron
Impeller: Brass/P.P.O
Diffuser: Techno-polymer (P.P.O.)
Mechanical Seal: Carbon/Ceramic/Stainless Steel

MOTOR

Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel/Stainless Steel
Insulation: Class B/Class F
Protection: IP44/IP54
Cooling: External Ventilation Motor Housing: Aluminum

PICTURES OF PUMP

0.6HP 0.46KW JET-60S Self-Priming Water Pump01

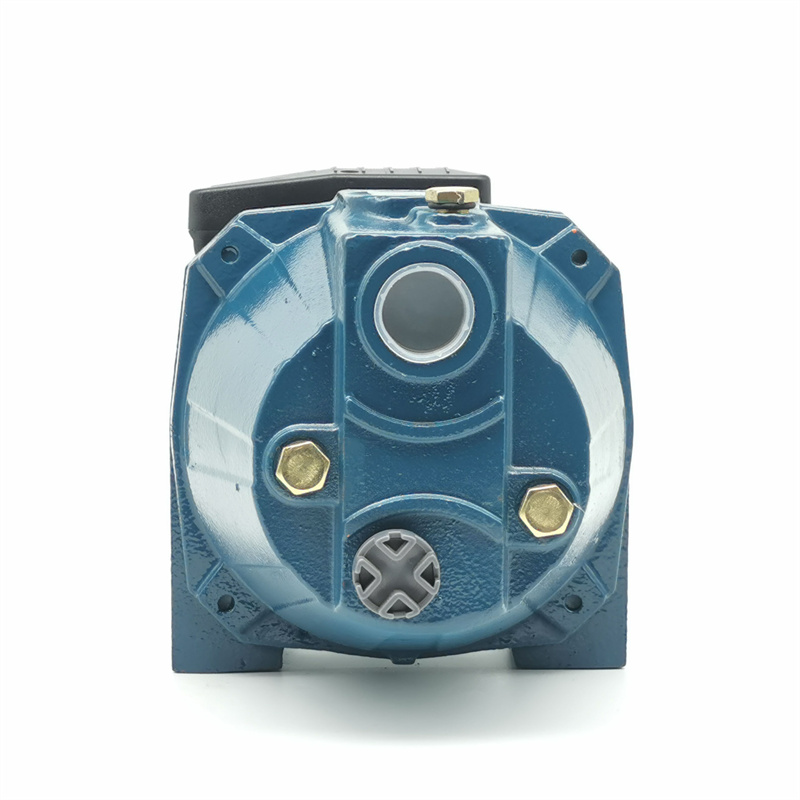

0.6HP 0.46KW JET-60S Self-Priming Water Pump02

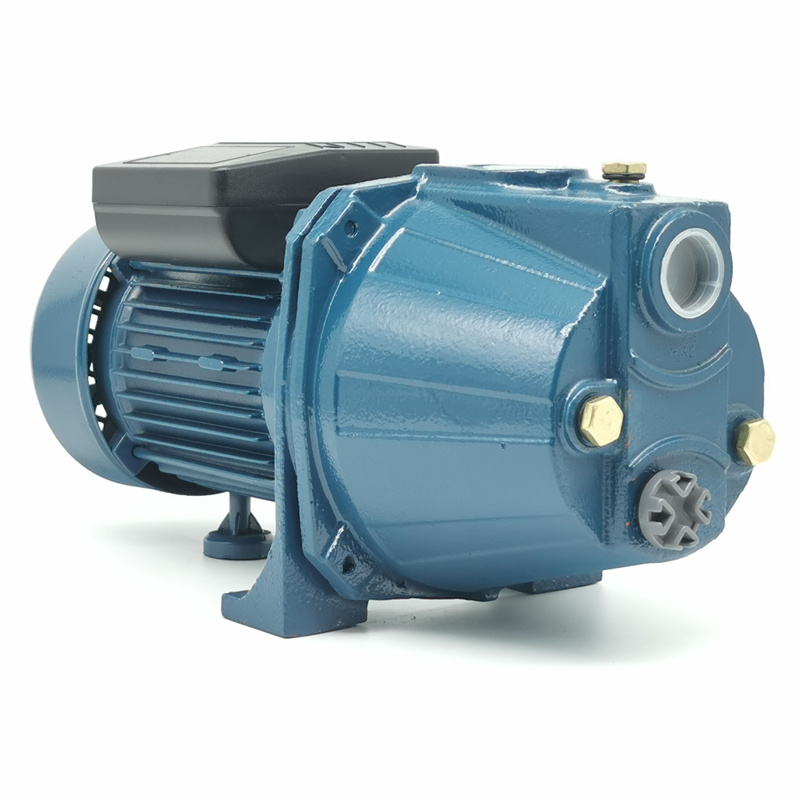

0.6HP 0.46KW JET-60S Self-Priming Water Pump03

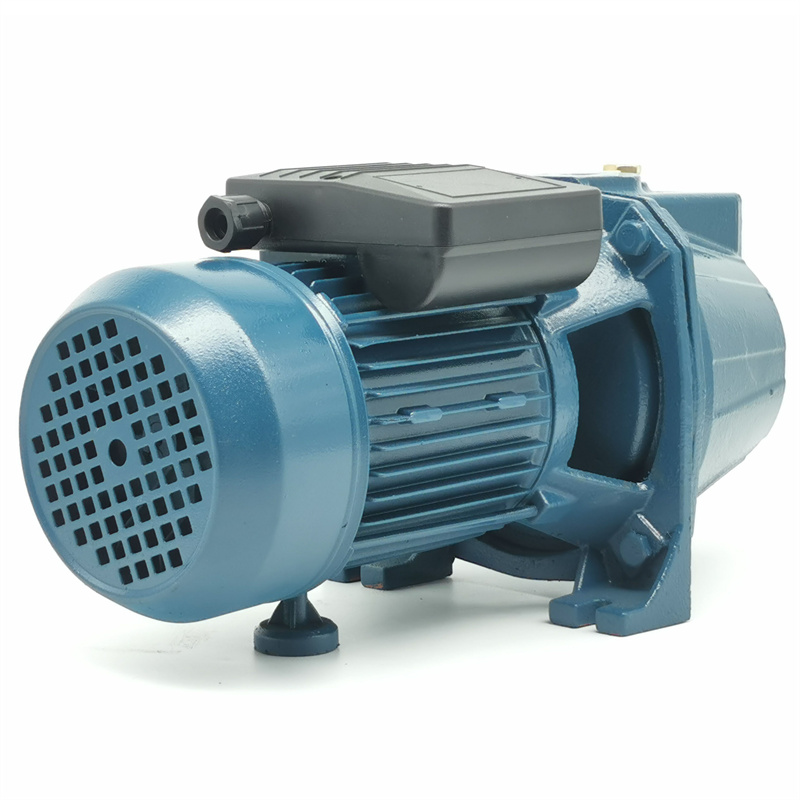

0.6HP 0.46KW JET-60S Self-Priming Water Pump04

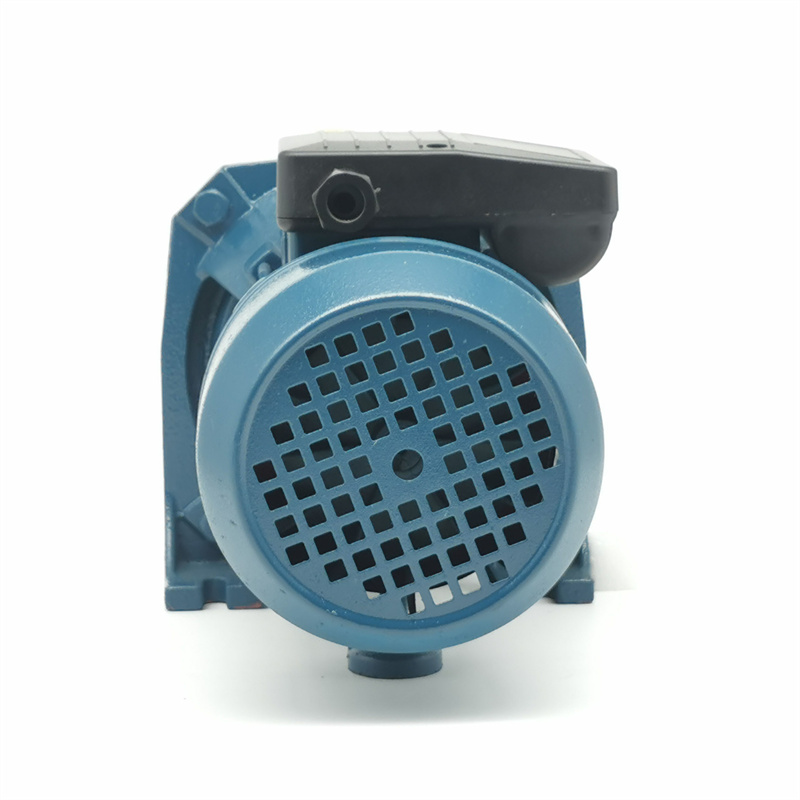

0.6HP 0.46KW JET-60S Self-Priming Water Pump05

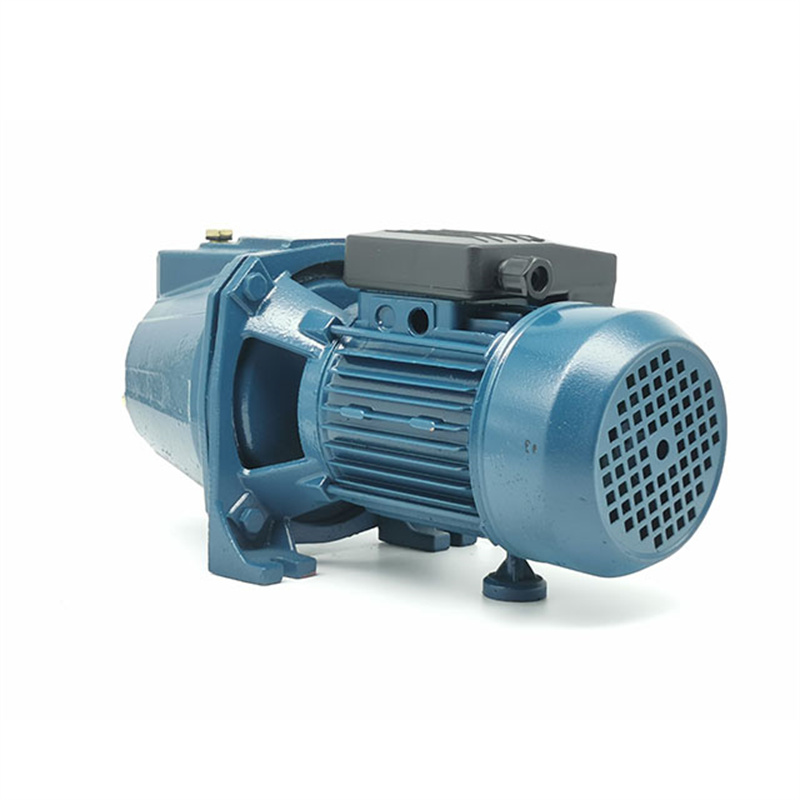

0.6HP 0.46KW JET-60S Self-Priming Water Pump06

PRODUCT SPECIFICATIONS

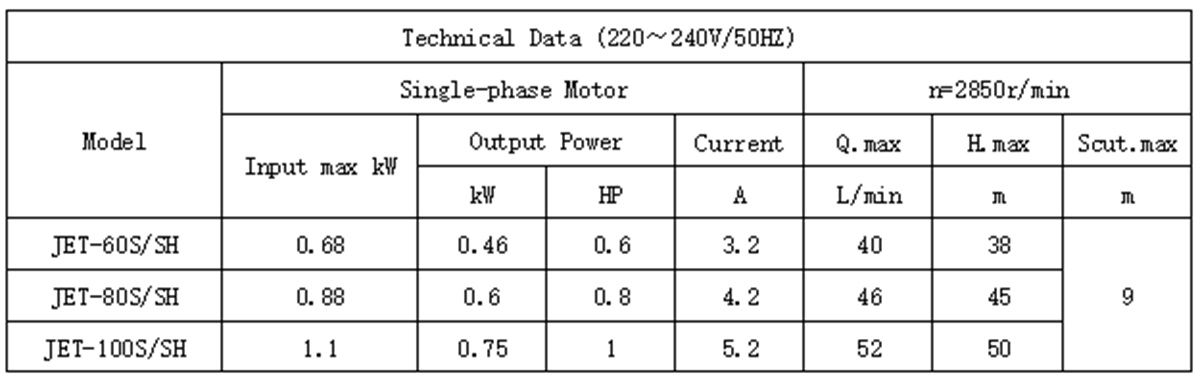

TECHNICAL DATA

product description03

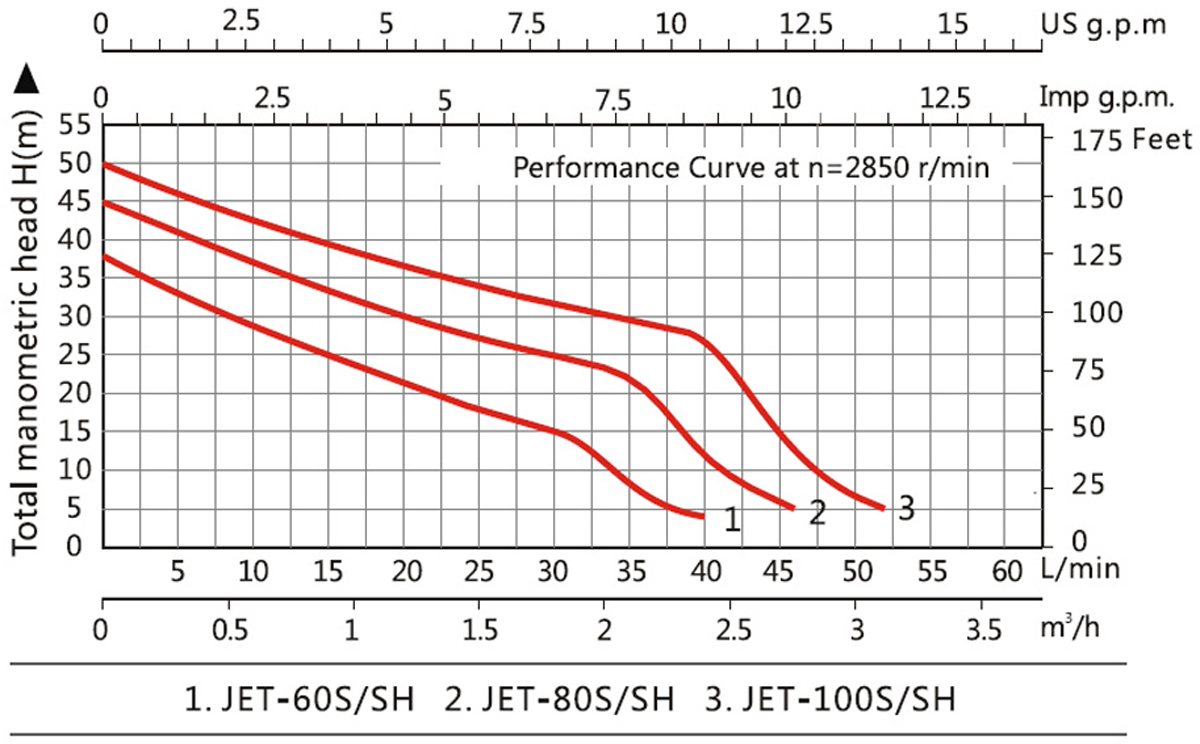

PERFORMANCE CHART AT N=2850min

product-description3

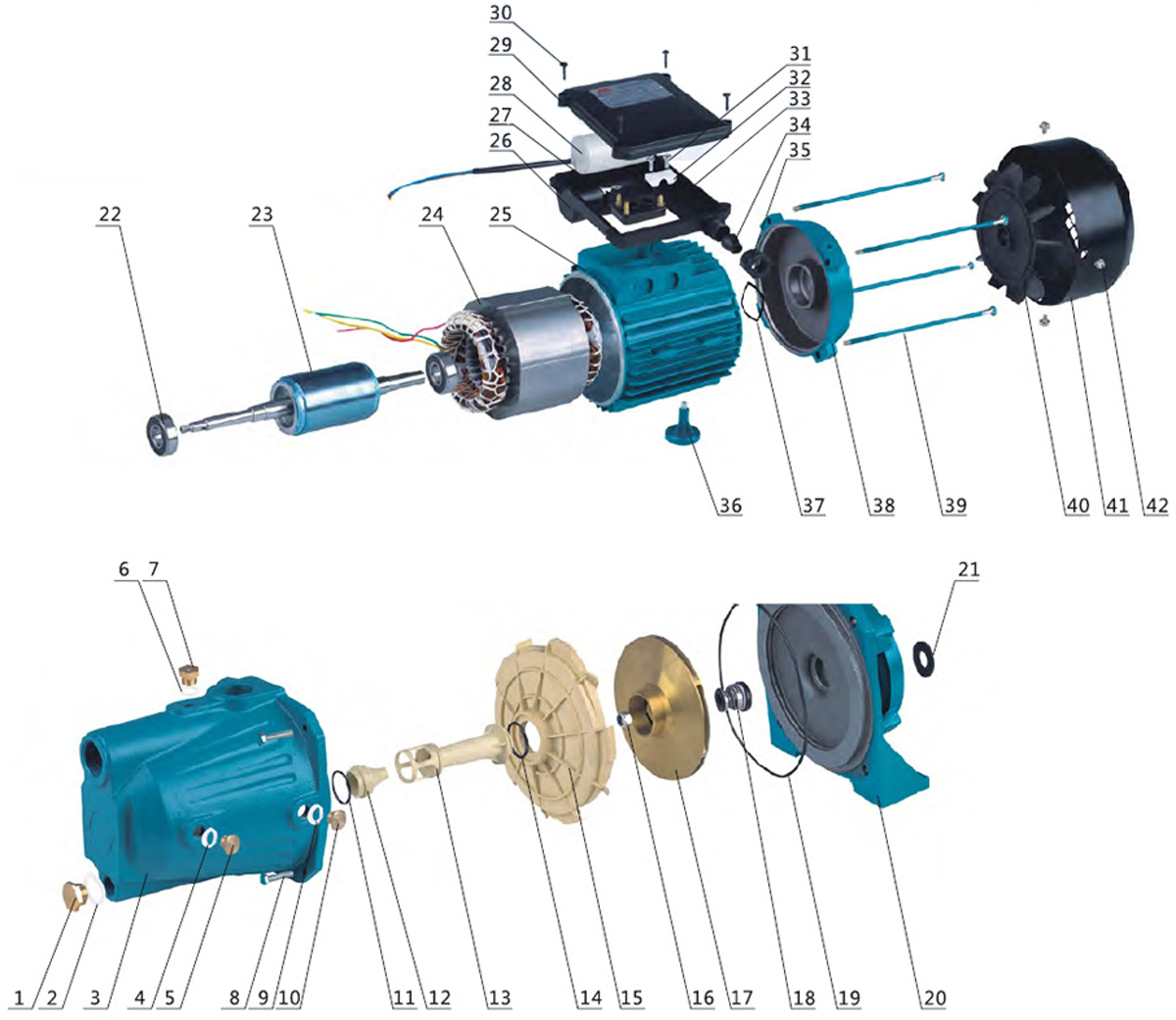

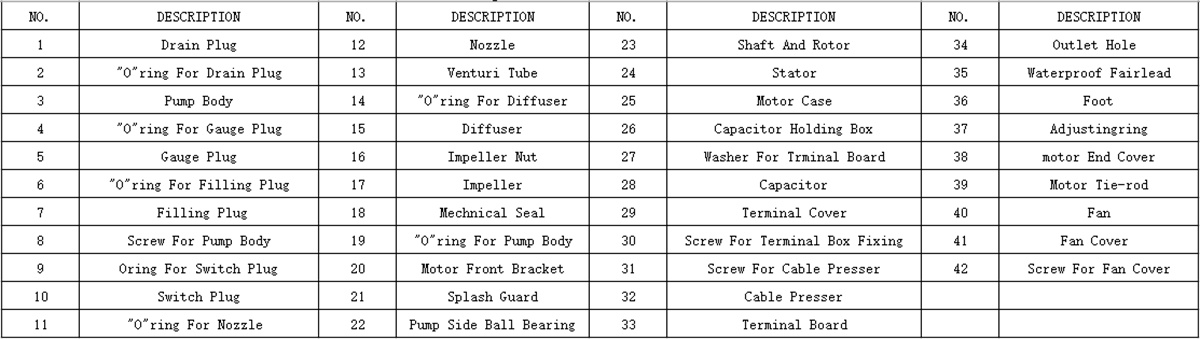

STRUCTURE OF PUMP

product-description1 product description02

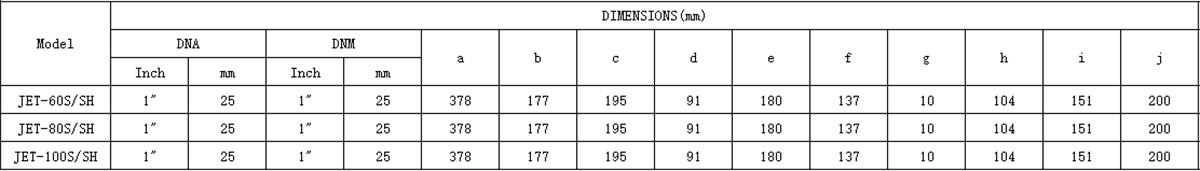

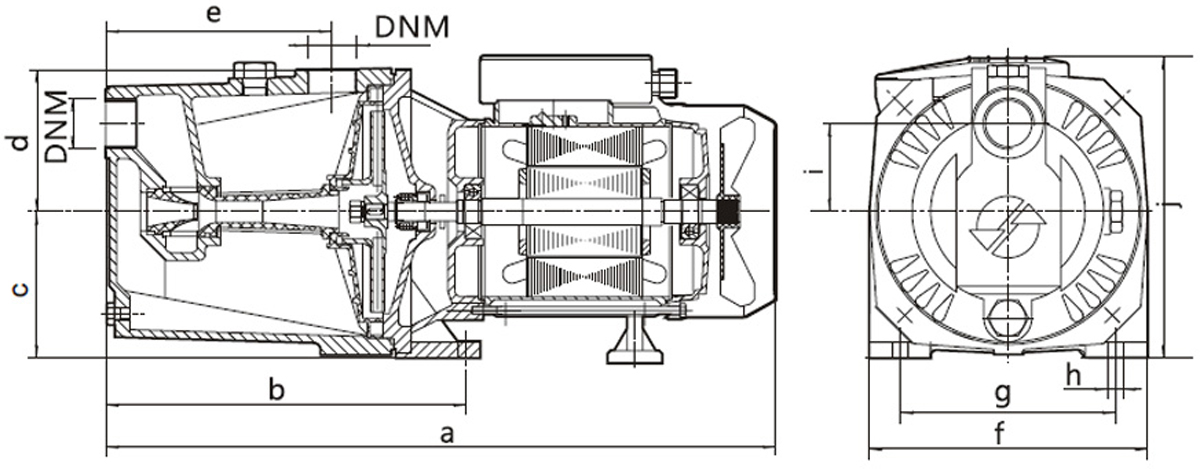

SIZE DETAILS OF PUMP

product-description2 product description01

REFERENCE COLOR

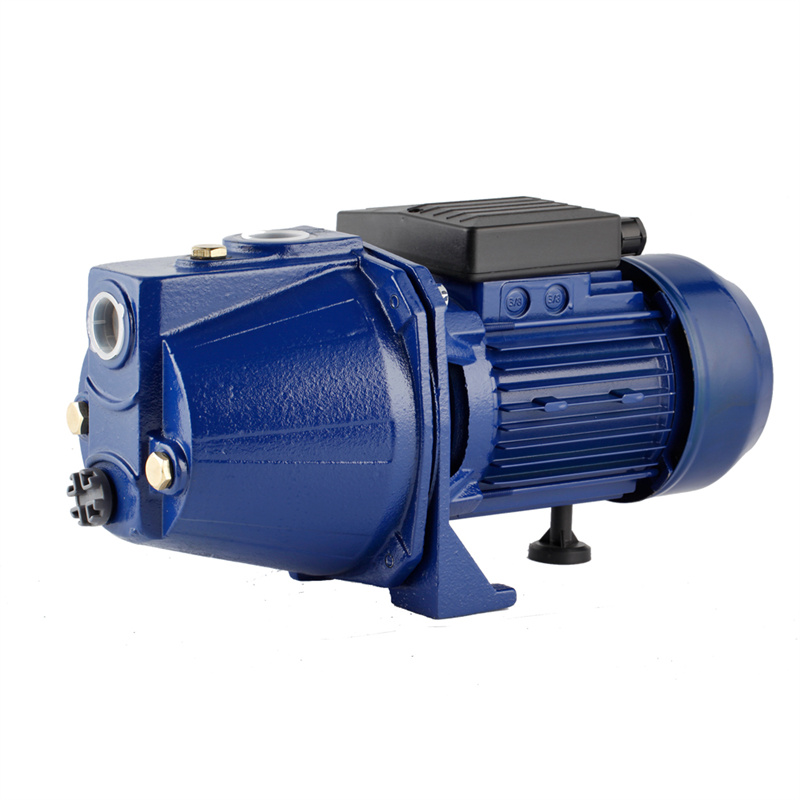

JET-S01

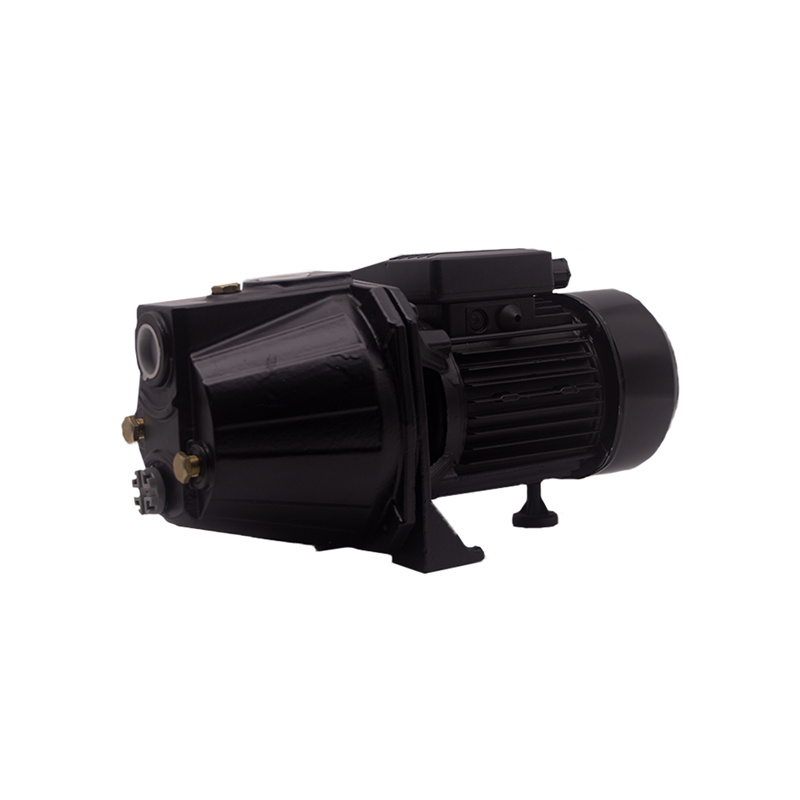

JET-S02

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 40~100mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
