0.6HP-1.2HP Auto JET-ST Series Stainless Steel Booster System Water Pump

Short Description:

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
JETST-60 0.68 0.46 0.6 3.2 42 40 9
JETST-80 0.88 0.6 0.8 4.2 46 45
JETST-100 1.1 0.75 1 5.2 52 50
JETST-130 1.3 0.9 1.2 5.8 62 45

Product Detail

Product Tags

asdzxc1

Application

Auto JET-ST Series pumps are constructed of high quality stainless steel to stand the test of time. Corrosion-resistant materials ensure long-lasting performance and are ideal for pumping water from wells, tanks or reservoirs. Whether you need to increase water pressure in your home, irrigate your garden, or supply water to your building, this booster system will provide consistent water pressure and flow.

The Auto JET-ST series pumps feature a powerful motor for exceptional performance. With its advanced technology, it provides a powerful water supply through a combination of pressure switch and pressure tank. This intelligent system ensures constant water pressure against fluctuating water pressure for reliable pumping 24/7.

With its compact and user-friendly design, the Auto JET-ST Series pumps are a breeze to install and operate. The unit comes with an easy-to-read control panel that allows you to easily monitor and adjust pump settings. In addition, it has a built-in thermal overload protection system to prevent the motor from overheating, ensuring safety and durability.

Please be confidence in the reliability of the Auto JET-ST range of water pumps as it complies with international standards and has been tested for performance and quality. Backed by our committed after-sales service, our team of experts will promptly address any concerns or issues.

Working Situation

Max Liquid Temperature: 60c

Max Ambient Temperature: +40c

Pump

Pump Body:Cast Iron

Impeller:Brass/p.p.o

Diffuser: Techno-Polymer (p.p.o.)

Mechanical Seal :Carbon/Ceramic/Stainless Steel

Motor

Single Phase

Heavy Duty Continuous Work

Motor Housing:Aluminum

Shaft:Carbon Steel/Stainless Steel

Insulation:Class b/Class f

Protection:Ip44/Ip54

Cooling:External Ventilation

Accessories

Tank: 24l / 50l

Flexible House: 1”x 1”

Pressure Switch: Sk-6

Pressure Gauge: 7bar(100psi)

Brass Connector: 5way

Calbe: 1.5m

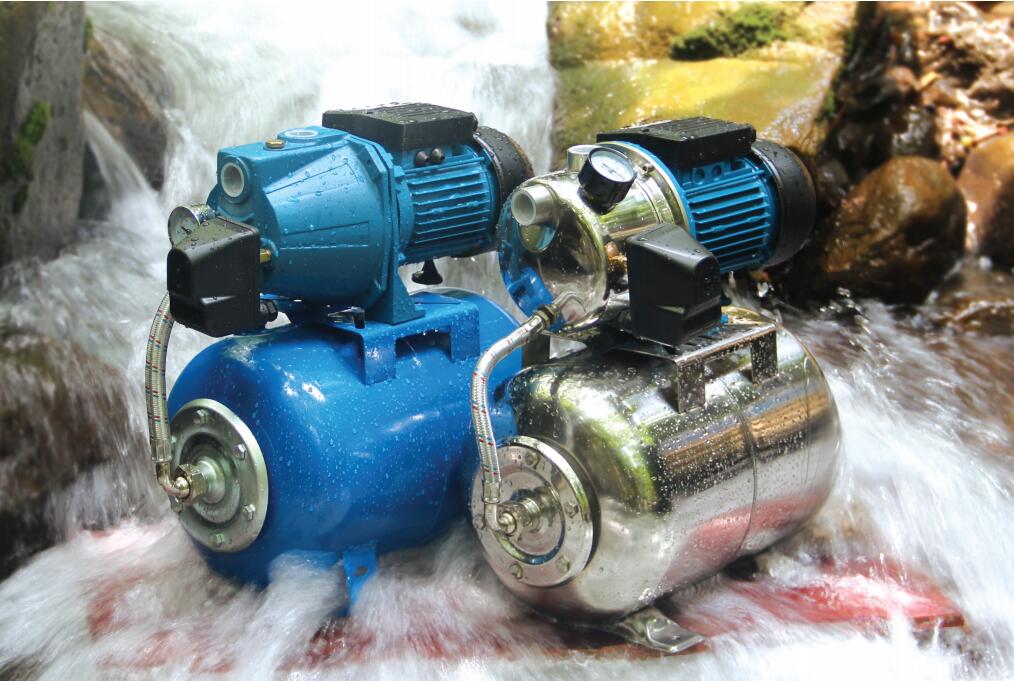

Pictures Of Pump

AUTO

PRODUCT SPECIFICATIONS

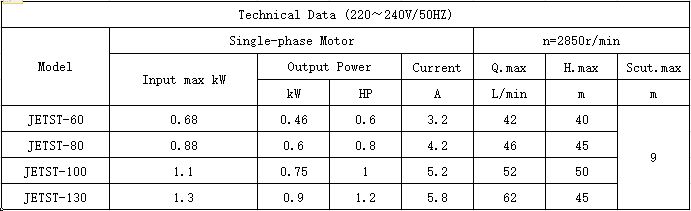

TECHNICAL DATA

zxcasdasd3

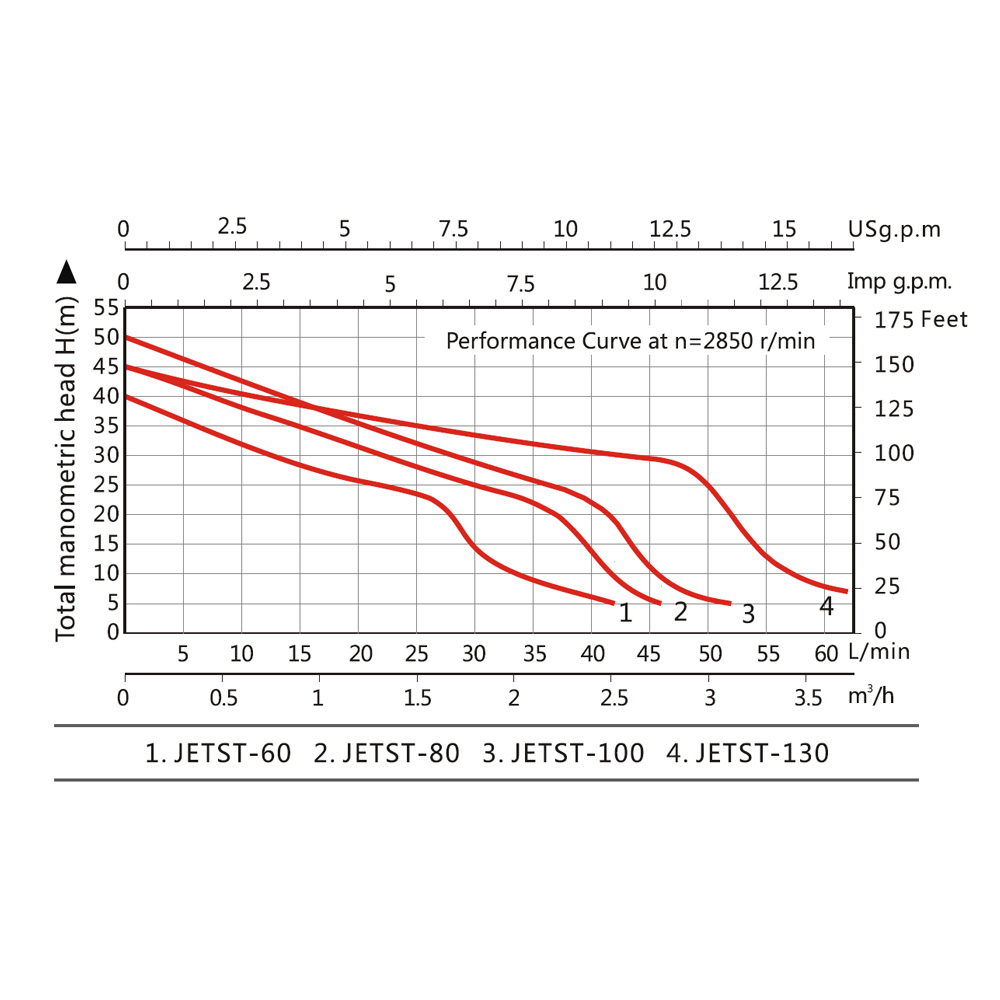

PERFORMANCE CHART AT N=2850min

zxcasdasd6

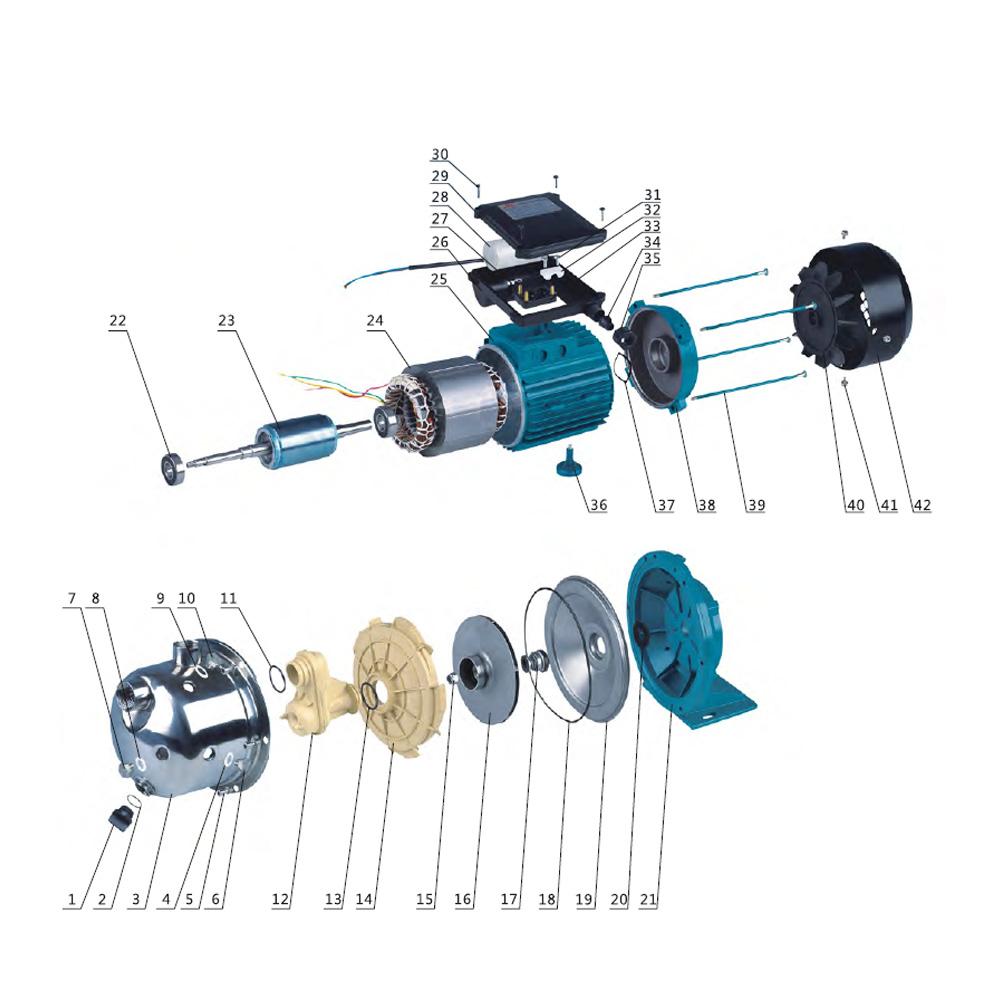

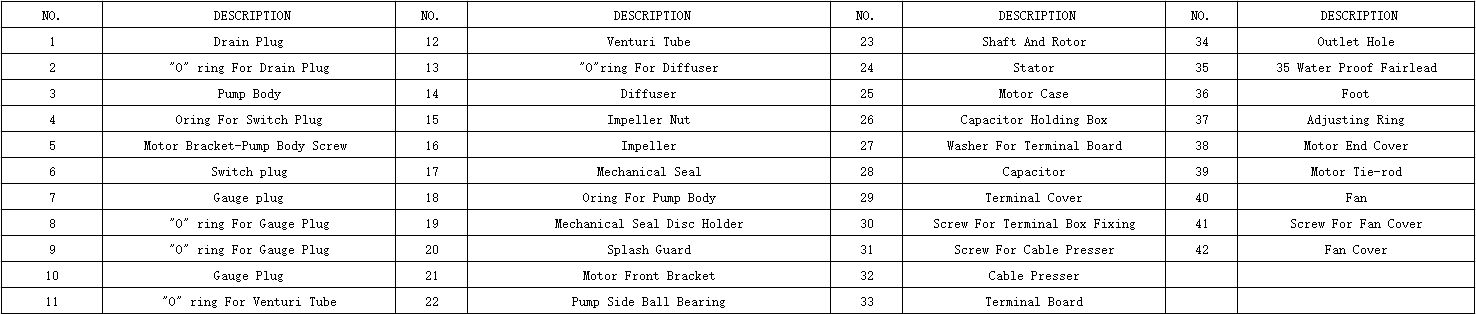

Structure

 zxcasdasd5 zxcasdasd2

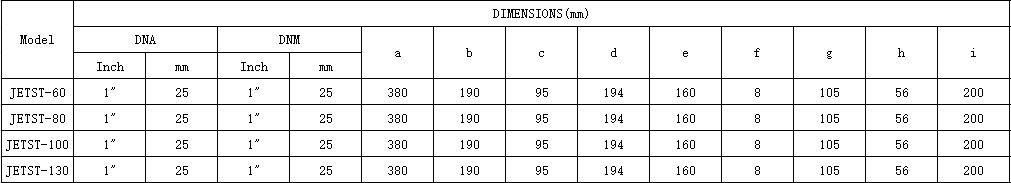

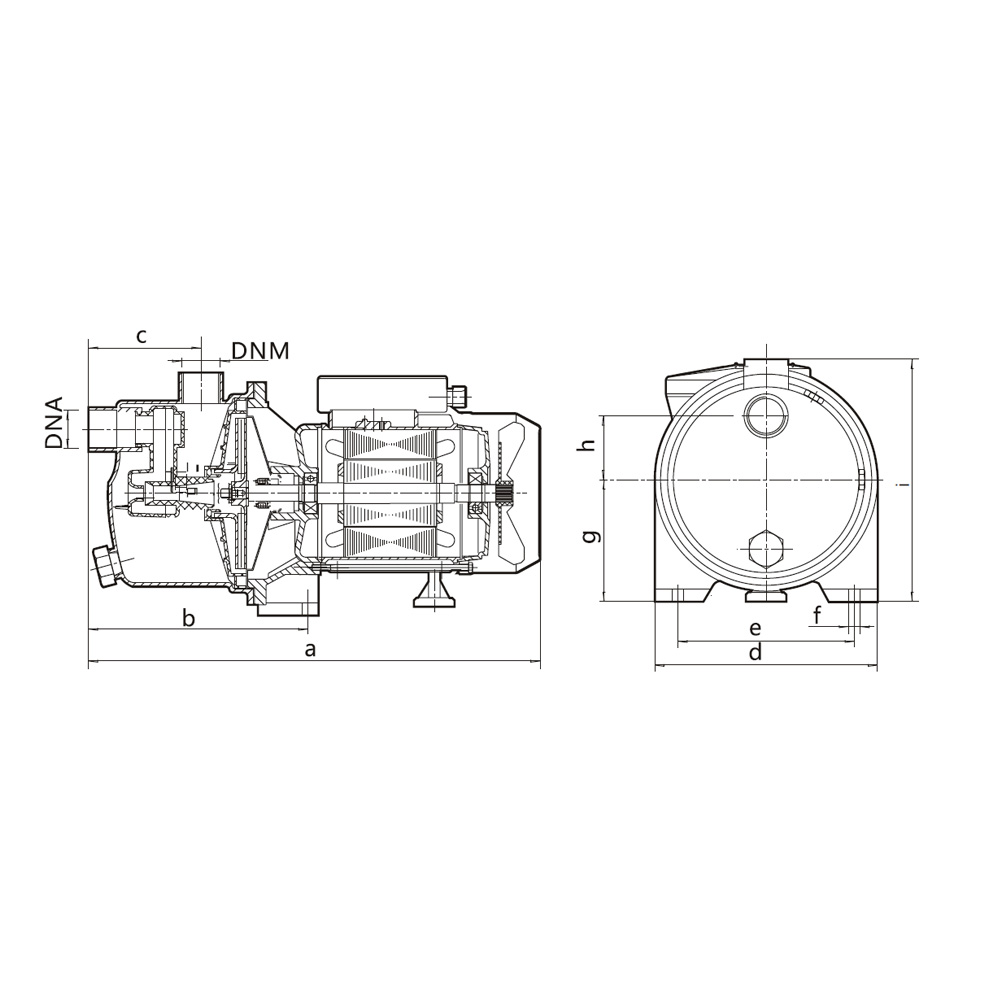

Size Details Of Pump

 zxcasdasd4 zxcasdasd1

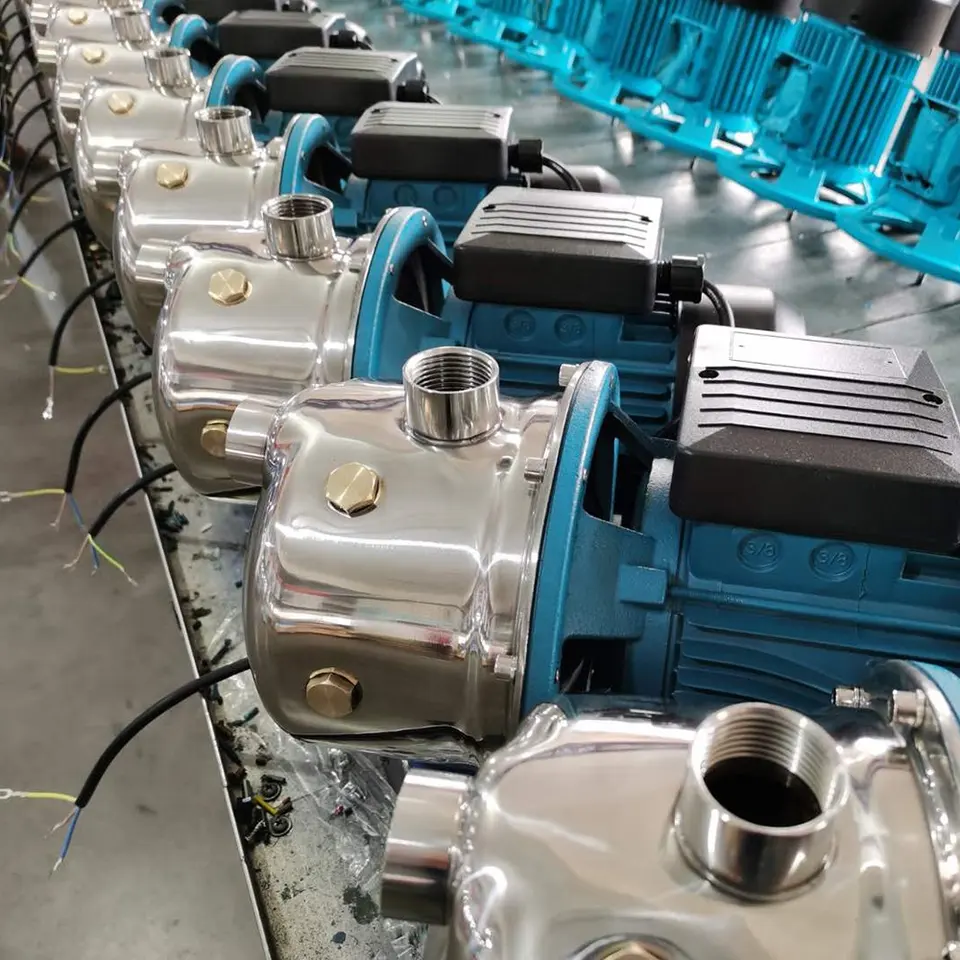

Pictures on Line

Auto JET6

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 40~120mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
