0.5HP -2HP CPM Series Centrifugal Water Pump

Short Description:

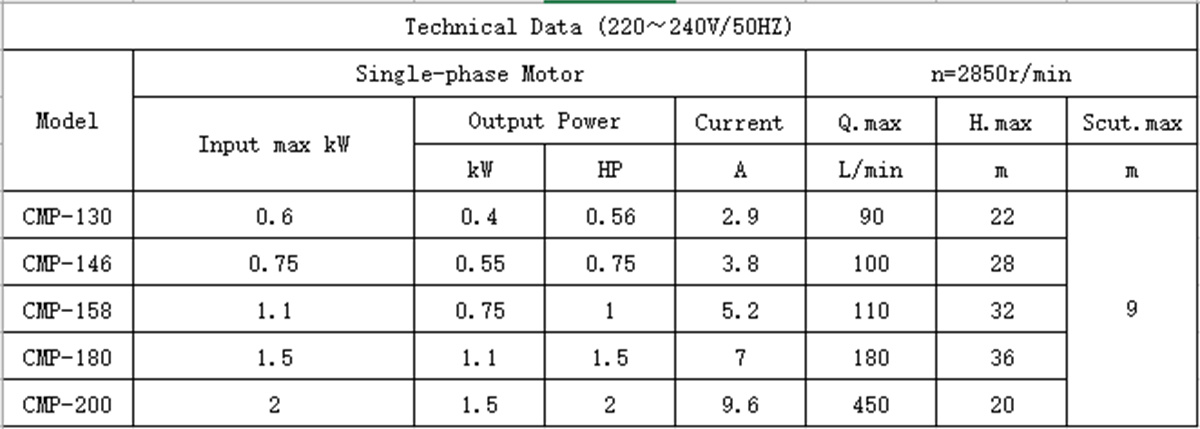

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
CMP-130 0.6 0.4 0.56 2.9 90 22 9
CMP-146 0.75 0.55 0.75 3.8 100 28
CMP-158 1.1 0.75 1 5.2 110 32
CMP-180 1.5 1.1 1.5 7 180 36
CMP-200 2 1.5 2 9.6 450 20

Product Detail

Product Tags

Applicable Scene

product-description1

CPM series

Introducing Centrifugal Water Pumps - The Perfect Solution for All Your Pumping Needs. With their powerful and efficient performance, our water pumps are designed for a wide range of applications from residential to industrial use.

With high-quality motors and durable materials, centrifugal water pumps are built to last and withstand even the harshest conditions. The unit is easy to operate and maintain, with an ergonomic design for hassle-free installation and maintenance.

Centrifugal water pumps are also designed to be energy efficient, saving you money on your electricity bills. It's also extremely durable, making it a long-lasting and cost-effective investment in your water system.

WORKING CONDITIONS

Max Suction: 8M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty

PUMP

Pump Body : Cast Iron
Impeller: Brass
Front Cover: Cast Iron / Stainless Steel / Aluminum with Brass Insert
Mechanical Seal: Carton / Ceramic / Stainless Steel

MOTOR

Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Wire: Copper Wire / Aluminum Wire
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

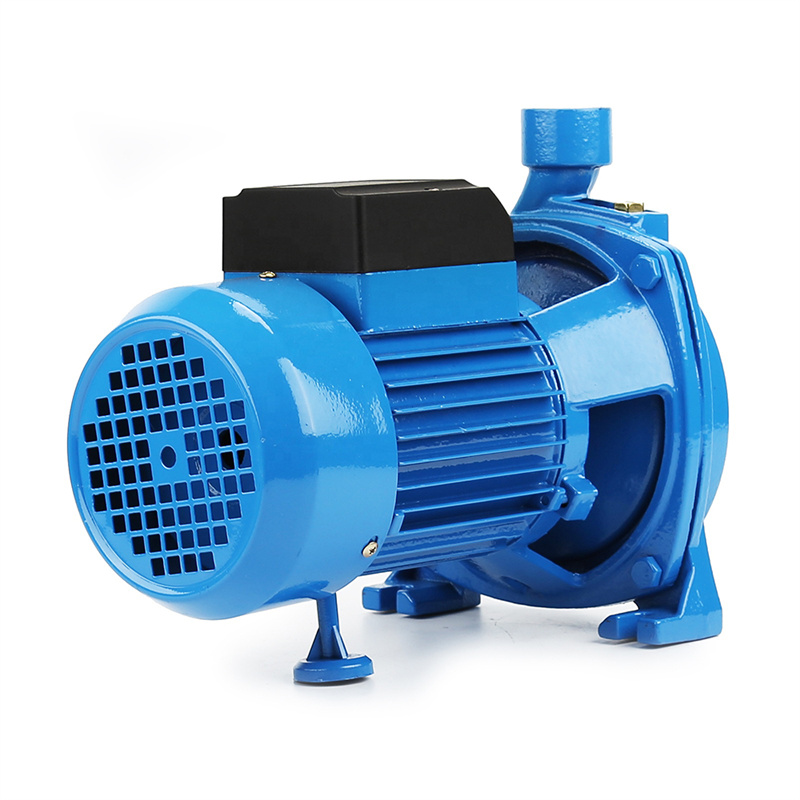

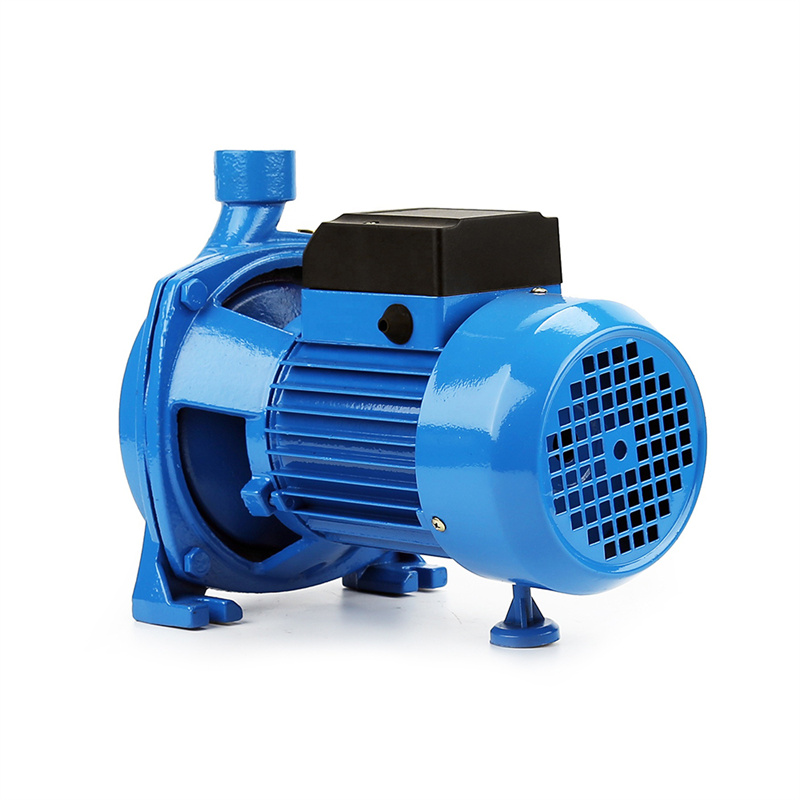

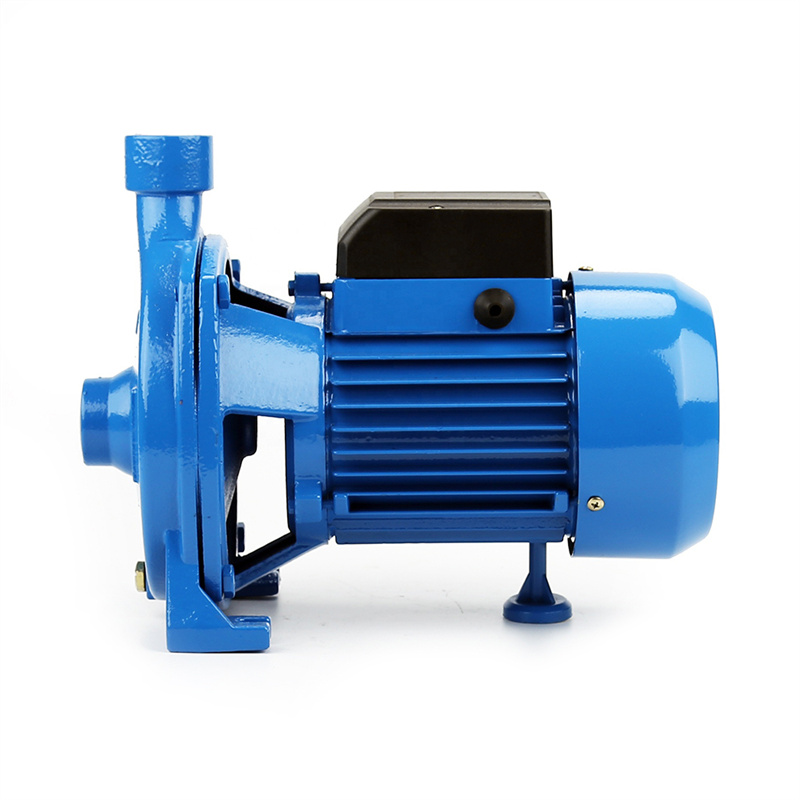

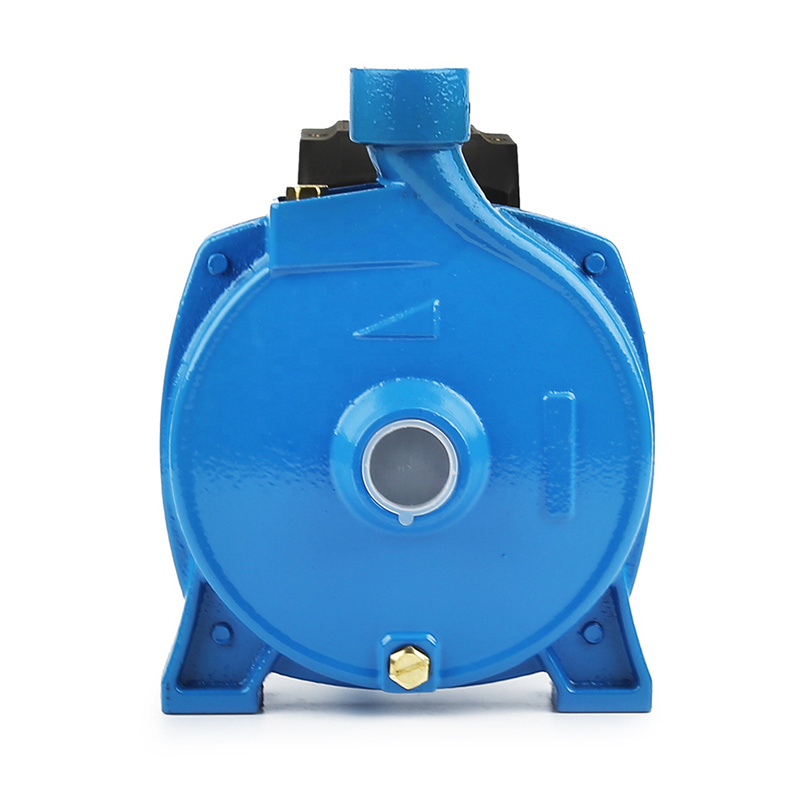

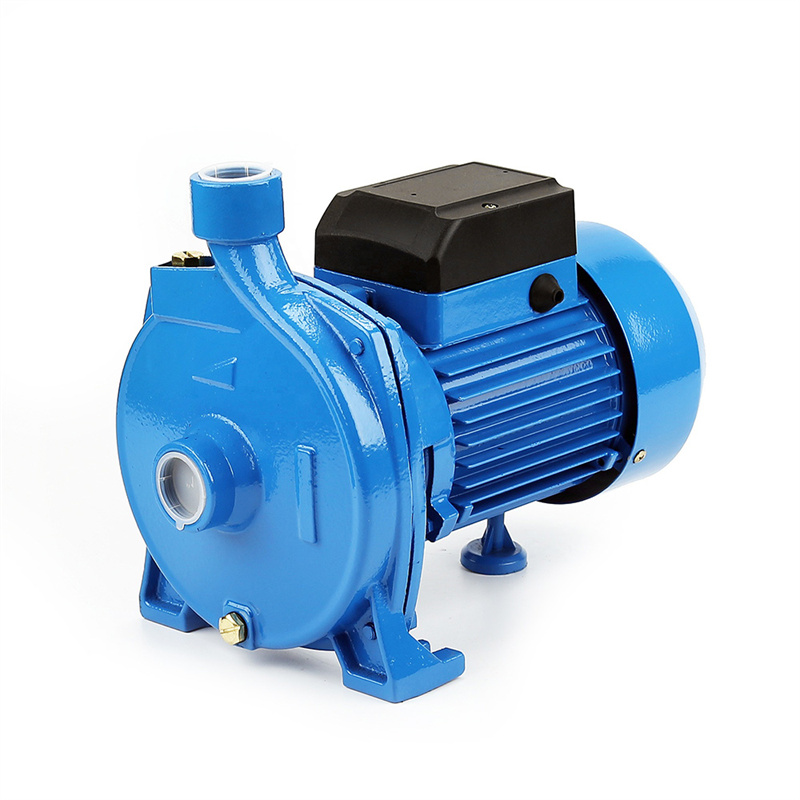

PICTURES OF ITEMS

product description01
product description02
product description05
product description05
product description03
product description04

PRODUCT SPECIFICATIONS

TECHNICAL DATA

product description03

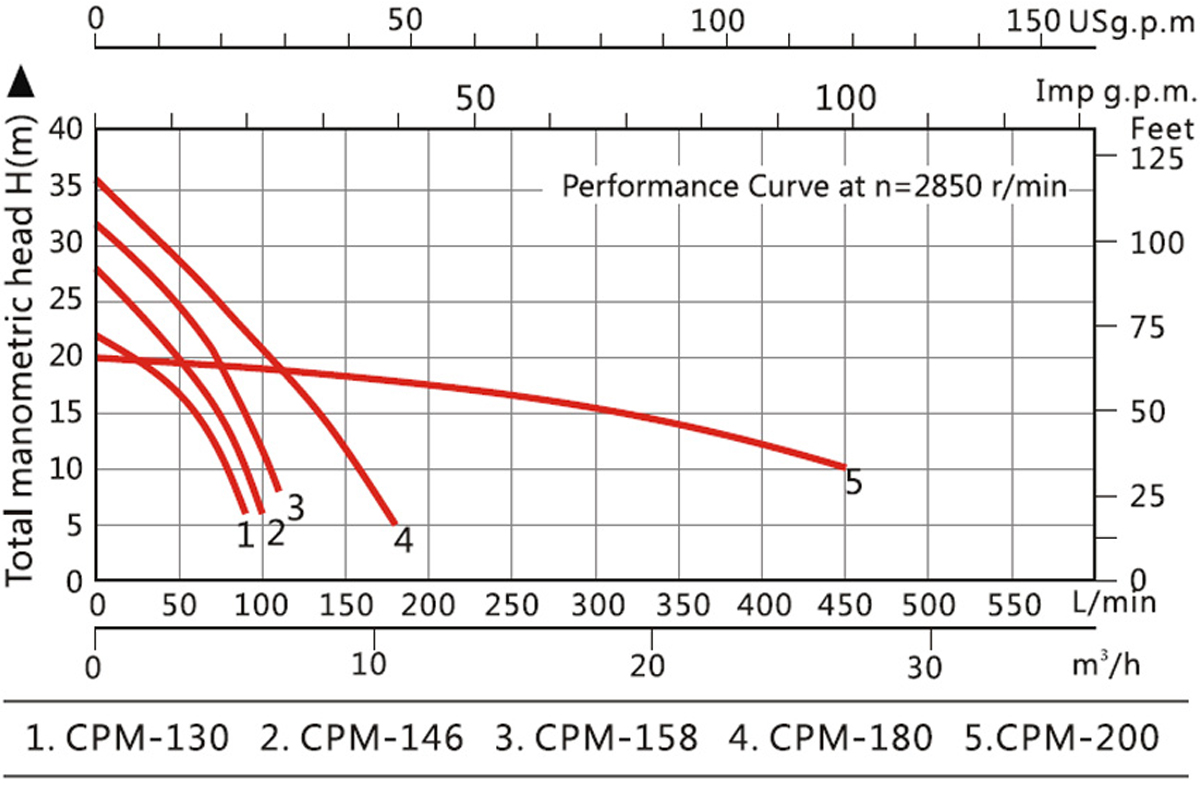

PERFORMANCE CHART AT N=2850min

product-description3

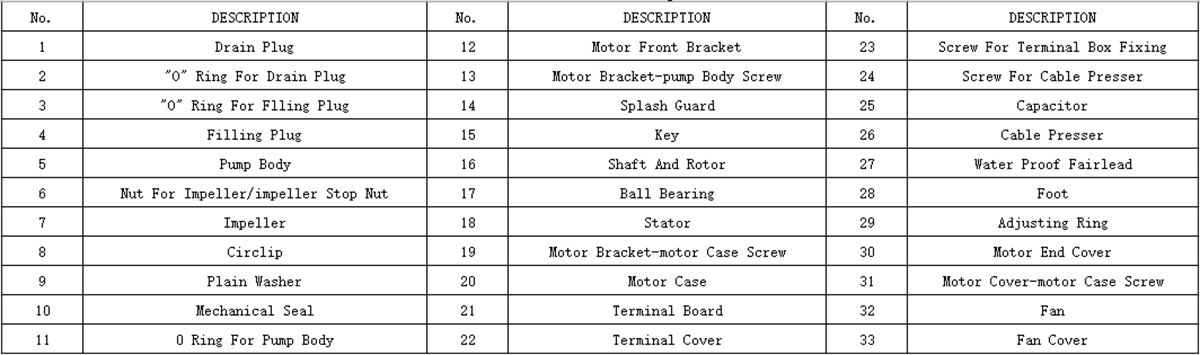

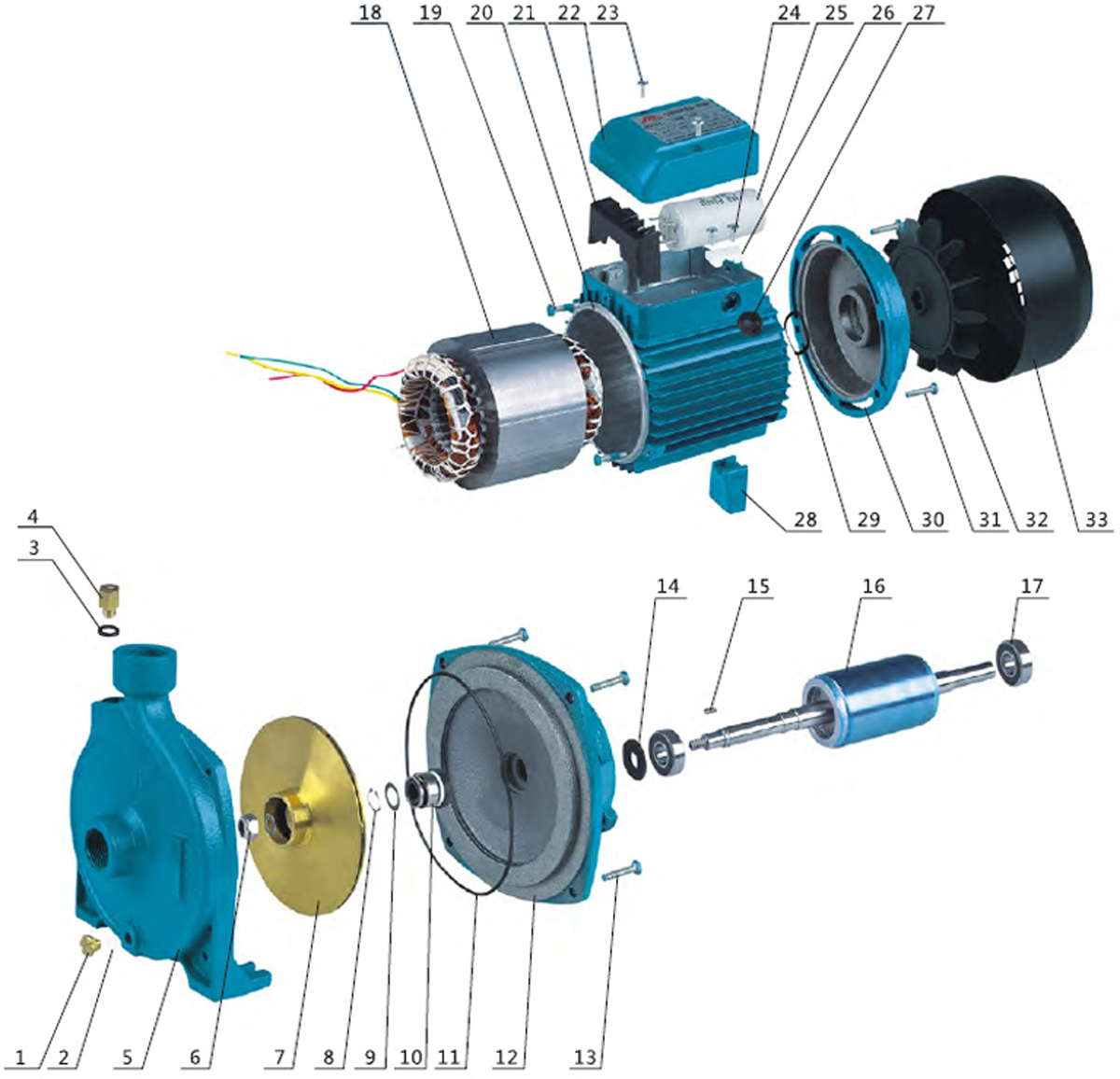

STRUCTURE OF PUMPS

product-description2

product description02

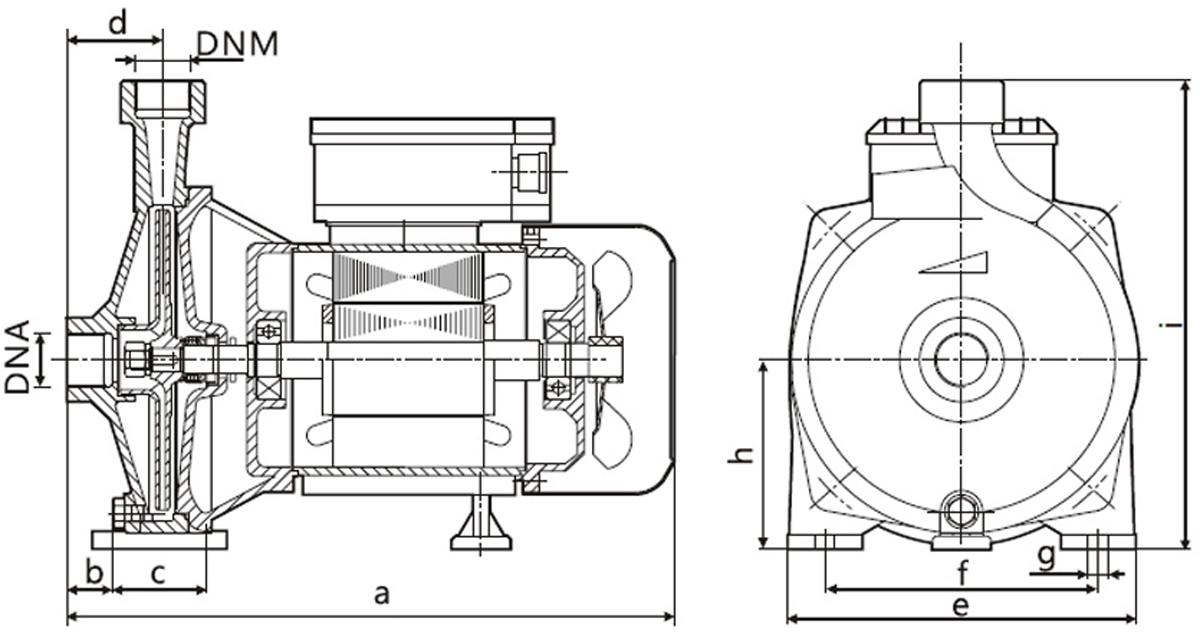

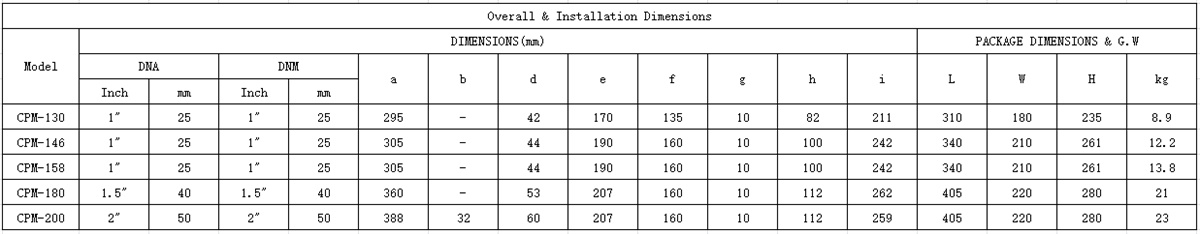

SIZE DETAILS OF PUMPS

product-description1 product description01

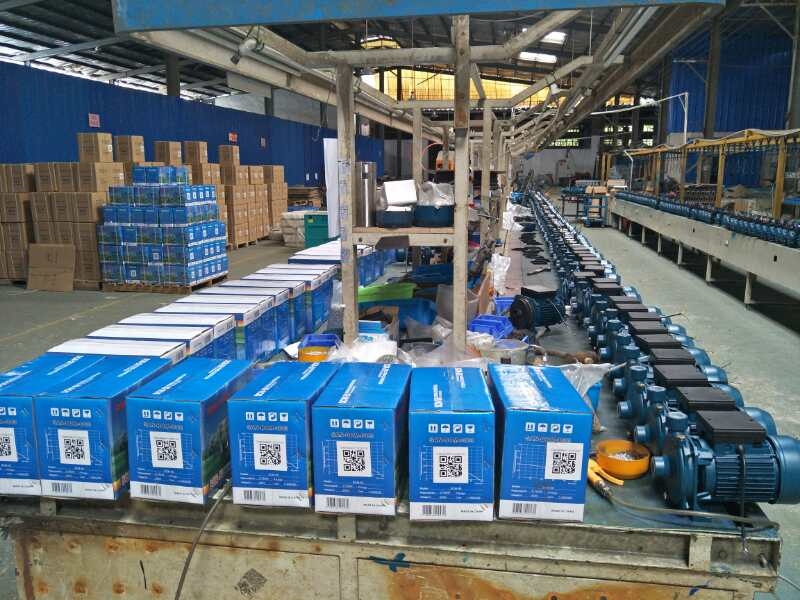

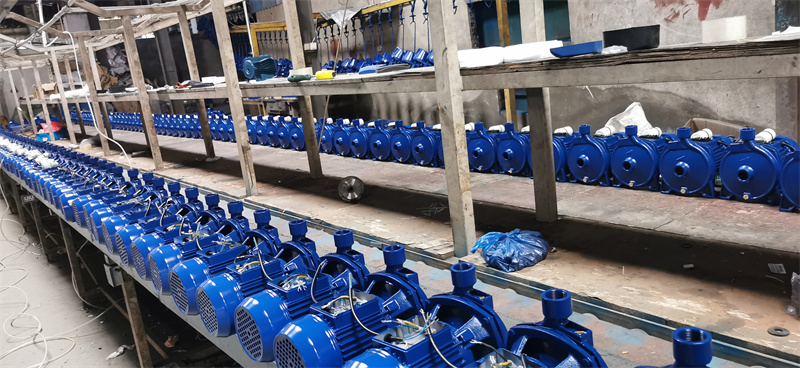

PICTURES OF WORKSHOP

product description01
product description02

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 30~120mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
