0.5HP – 1HP PM Series Peripheral Water Pump

Short Description:

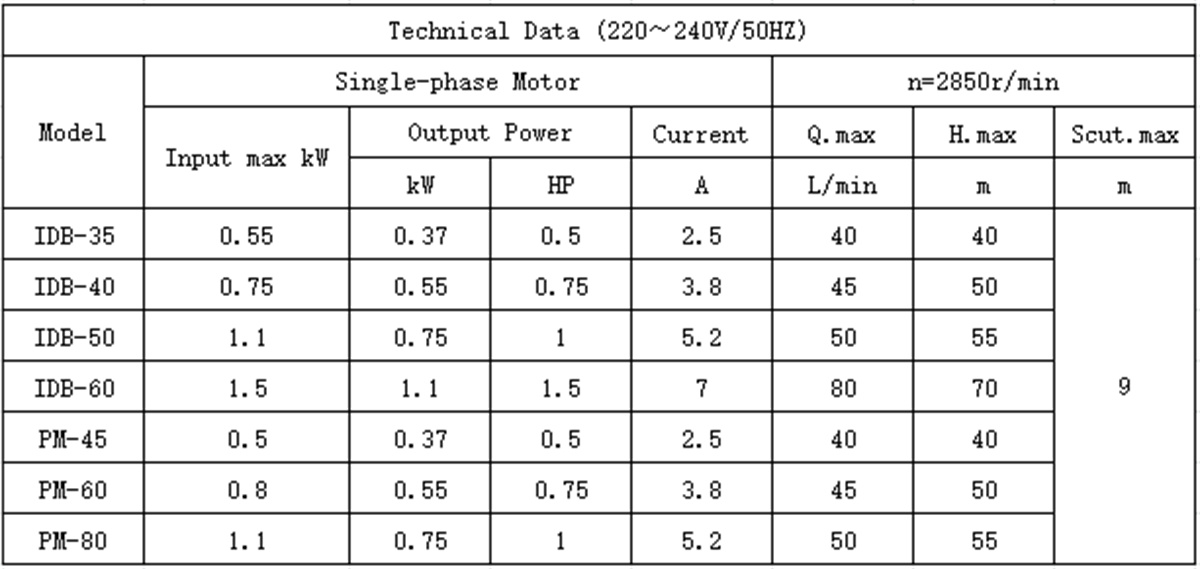

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
IDB-35 0.55 0.37 0.5 2.5 40 40 9
IDB-40 0.75 0.55 0.75 3.8 45 50
IDB-50 1.1 0.75 1 5.2 50 55
IDB-60 1.5 1.1 1.5 7 80 70
PM-45 0.5 0.37 0.5 2.5 40 40
PM-60 0.8 0.55 0.75 3.8 45 50
PM-80 1.1 0.75 1 5.2 50 55

Product Detail

Product Tags

Applicable Scene

product-description1

PM series

Looking for a reliable, efficient water pump for residential and commercial use? PM series peripheral water pump is your best choice! Designed to provide exceptional water flow and pressure, this pump is ideal for a range of applications including washing, watering and even irrigation.

At the heart of the PM Series Perimeter Water Pump is a powerful and durable motor that will provide plenty of water pressure for even the largest properties. With its high speed operation, the pump can easily deliver water to multiple outlets simultaneously, ensuring a constant and reliable supply of fresh water wherever it is needed.

In addition to powerful motors, the PM peripheral water pumps are designed for maximum energy efficiency. With its advanced motor technology, the pump is able to deliver exceptional performance while consuming less power than conventional water pumps. Not only does this help save on energy bills, it also minimizes the environmental impact of water use.

In terms of installation and operation, the PM series external water pumps are designed to be simple and easy to use. Its lightweight and compact design makes it easy to install and operate, while its intuitive controls and safety features ensure reliable and hassle-free operation. Whether you're a professional installer or a DIY enthusiast, this pump is an excellent choice for anyone looking for a quality, reliable pump.

WORKING CONDITIONS

Max Suction: 8M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous Duty

PUMP

Pump Body: Cast Iron
Impeller: Brass
Front Cover: Cast Iron
Mechanical Seal: Carton / Ceramic / Stainless Steel

MOTOR

Wire: Copper Wire / Aluminum Wire
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

PRODUCT SPECIFICATIONS

REFERENCE PICTURES

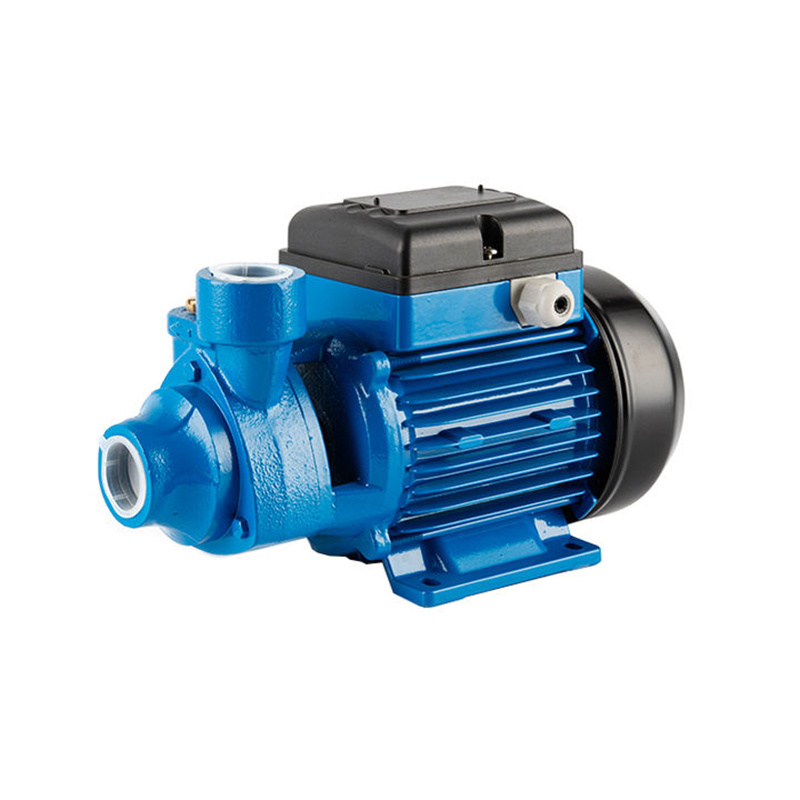

0.5HP 0.37KW PM-45 Peripheral Water Pump01

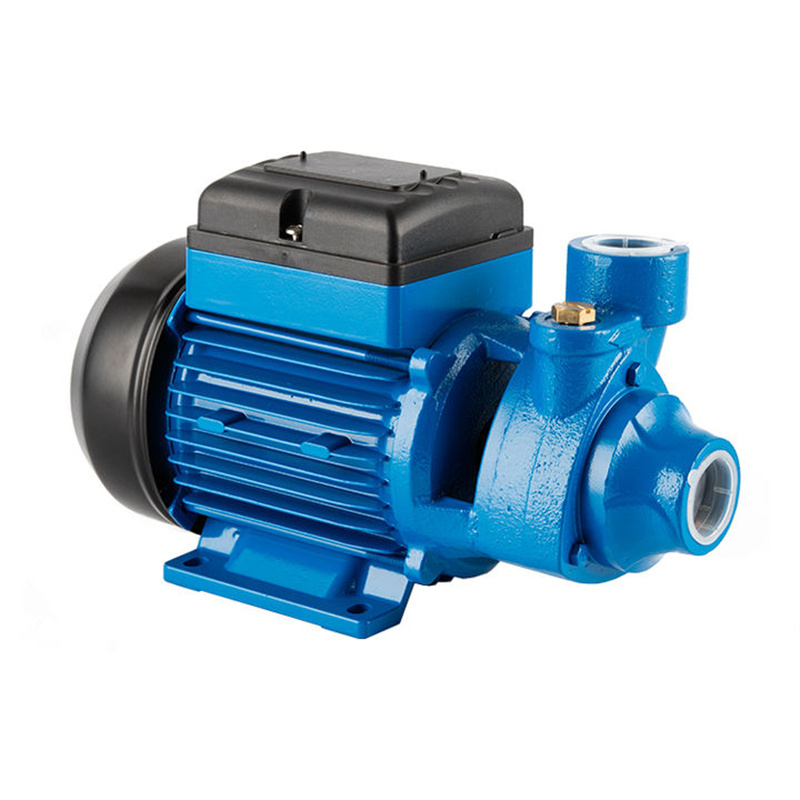

0.5HP 0.37KW PM-45 Peripheral Water Pump02

TECHNICAL DATA

product description01

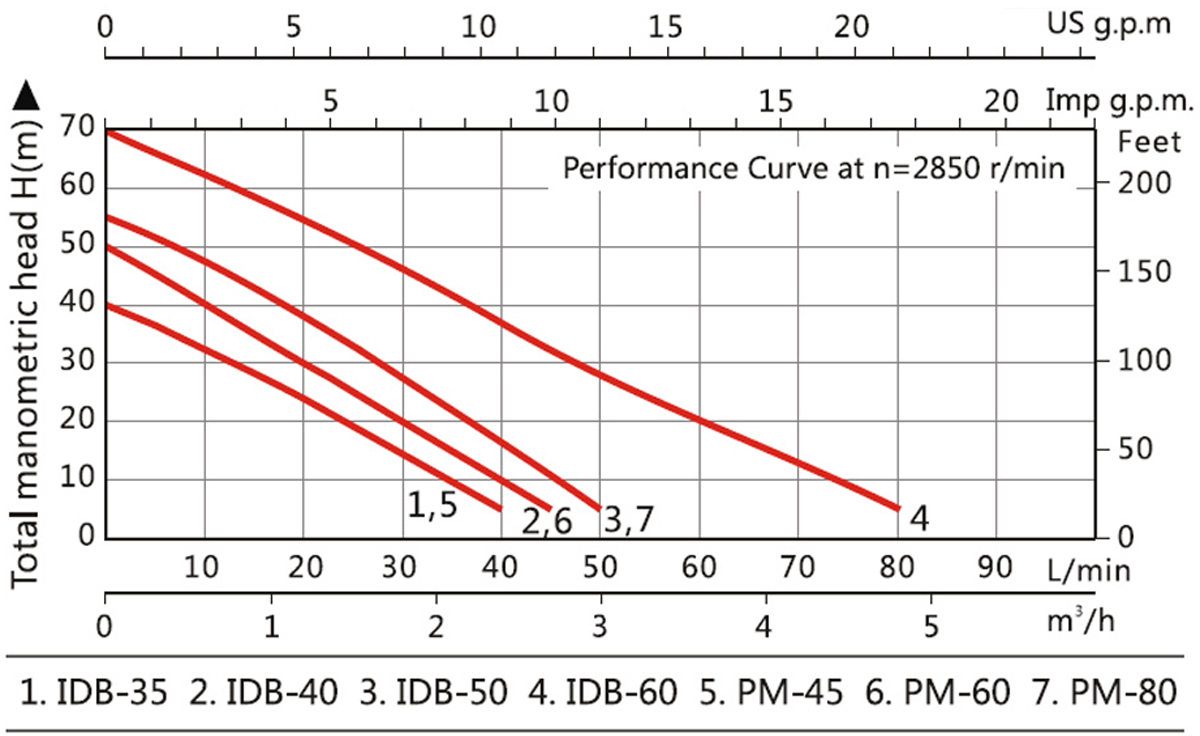

PERFORMANCE CHART AT N=2850min

product-description3

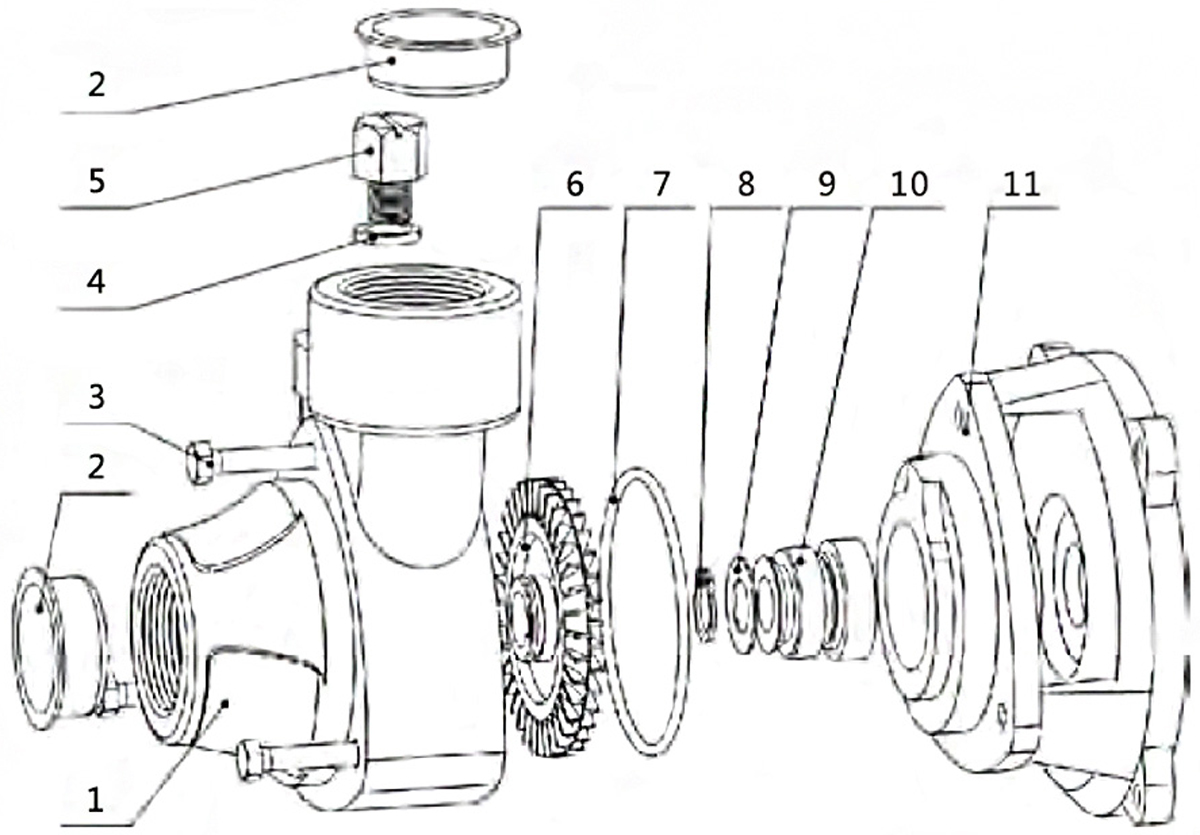

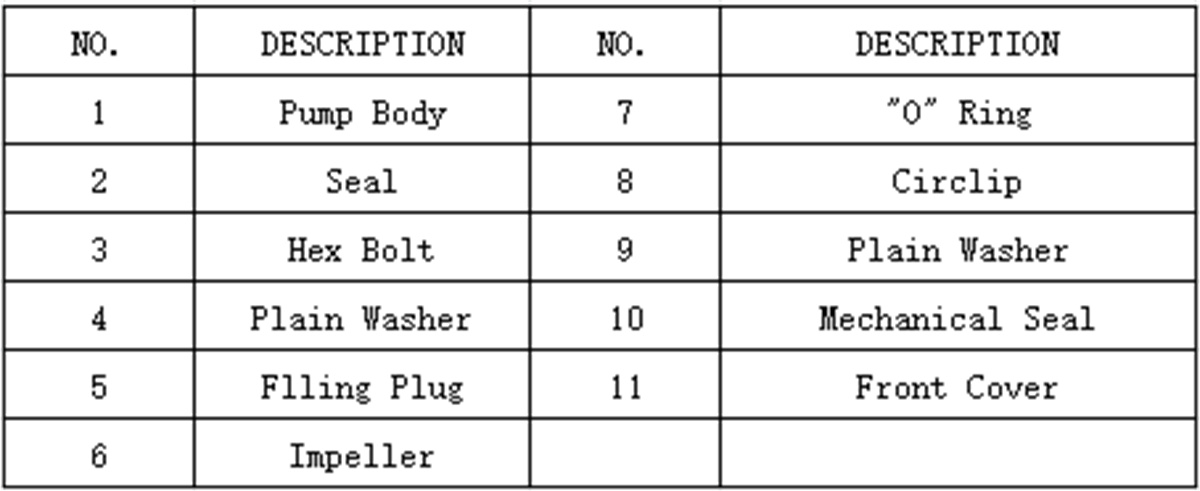

STRUCTURE OF PUMP

product-description2 product description02

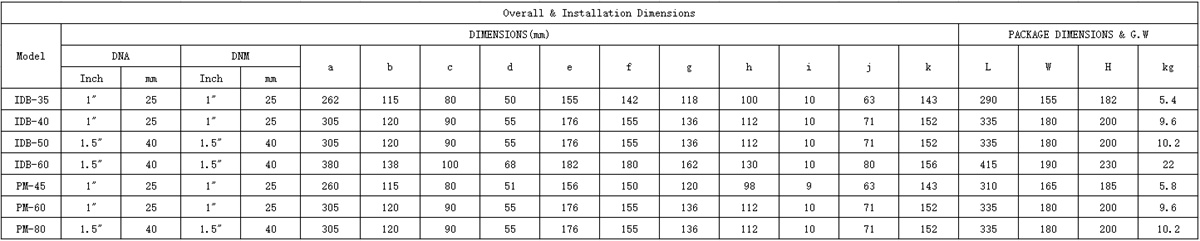

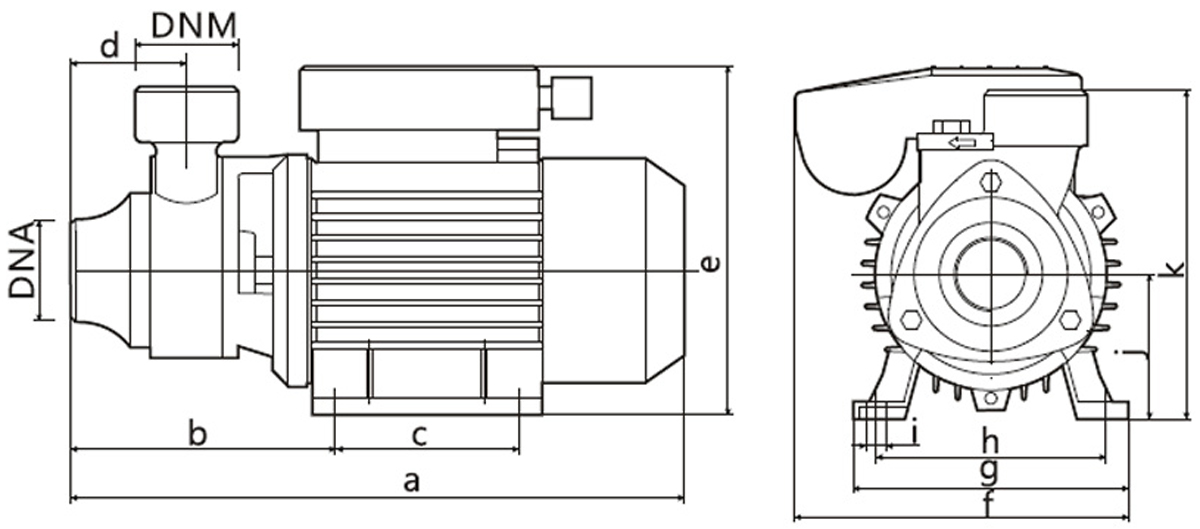

SIZE DETAILS OF PUMP

product-description1 product description03

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 20~100mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
