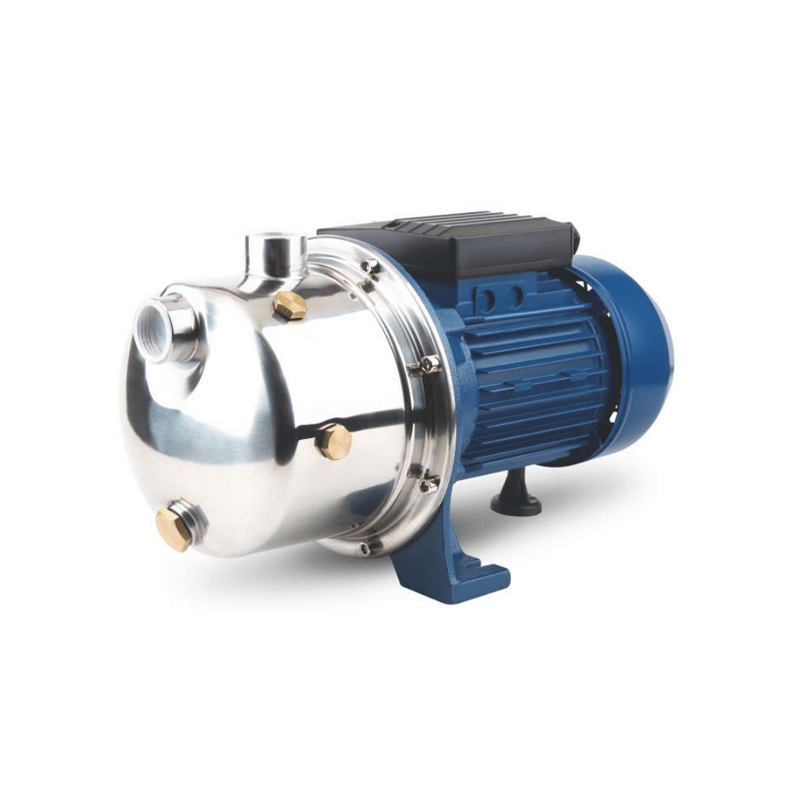

0.6HP-1.2HP JET-ST Series Stainless Steel Self-Priming Water Pump

Short Description:

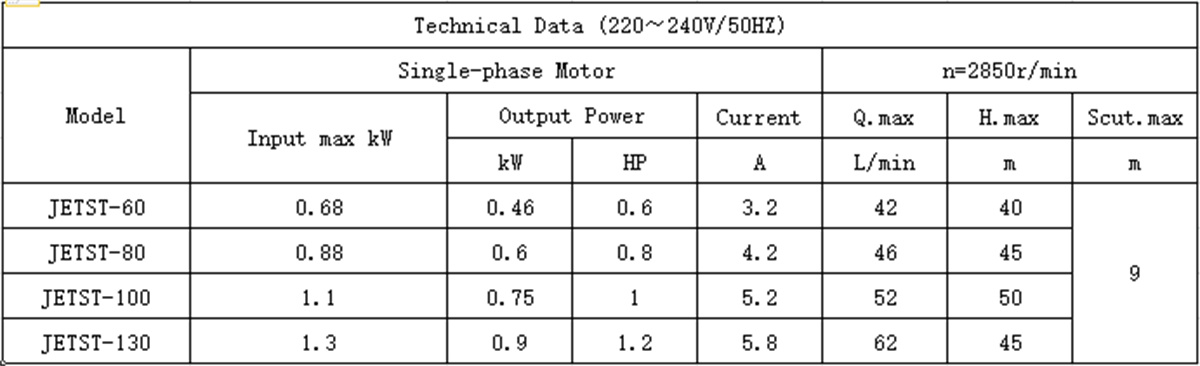

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
JETST-60 0.68 0.46 0.6 3.2 42 40 9
JETST-80 0.88 0.6 0.8 4.2 46 45
JETST-100 1.1 0.75 1 5.2 52 50
JETST-130 1.3 0.9 1.2 5.8 62 45

Product Detail

Product Tags

APPLICATION

product-description1

Jet-ST series Stainless Steel Self-priming Water Pump

Stainless steel pump body is JS series, equipped with waterproof plug & power cord and watertight switch. It is suitable for gardening, water supply, washing, increase water pressure, etc. It is usually can be combined with a pressure switch and a surge tank to be used as a domestic water system for distributing water.

Designed with durability, efficiency and performance in mind, this state-of-the-art pump is the perfect solution for all your pumping needs.

Made of high quality stainless steel, this pump will stand the test of time. Its sturdy construction ensures it can withstand harsh weather conditions, making it a solid choice for both indoor and outdoor use. Whether you need to pump water from a well, pool or tank, this Jet Pump will do it.

With its powerful motor, this pump delivers impressive results. Capable of pumping water at a rate of [insert flow] ensuring fast and efficient water delivery. Say goodbye to long waiting times and hello to a more convenient pumping experience.

Installing our stainless steel jet water pumps is a breeze. The pump is designed with user-friendliness in mind, with clear instructions and easy-to-use components. With just a few simple steps, you can have your pump up and running in no time.

Plus, this pump has been designed with energy efficiency in mind, ensuring it will help you save on your electricity bills in the long run. Its smart design maximizes efficiency while minimizing waste, making it an environmentally friendly choice.

When it comes to pumping water, we understand the importance of reliability and peace of mind. That's why our stainless steel water jet pumps come with a [INSERT WARRANTY PERIOD] warranty. You can trust our products are built to last and will serve you well for years to come.

Elevate your pumping experience with a stainless steel jet pump. Its durable construction, powerful performance and user-friendly features make it the ultimate choice for all your pumping needs. Don't settle for less - invest in a pump that delivers results and exceeds your expectations.

Working Situation

Max Suction: 9M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty

PUMP

Pump Body: Stainless Steel
Impeller: Brass/Techno-polymer (P.P.O.) / Stainless Steel
Diffuser: Techno-polymer (P.P.O.)
Mechanical Seal: Carbon/Ceramic/Stainless Steel

MOTOR

Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel/Stainless Steel
Insulation: Class B/Class F
Protection: IP44/IP54
Cooling: External Ventilation

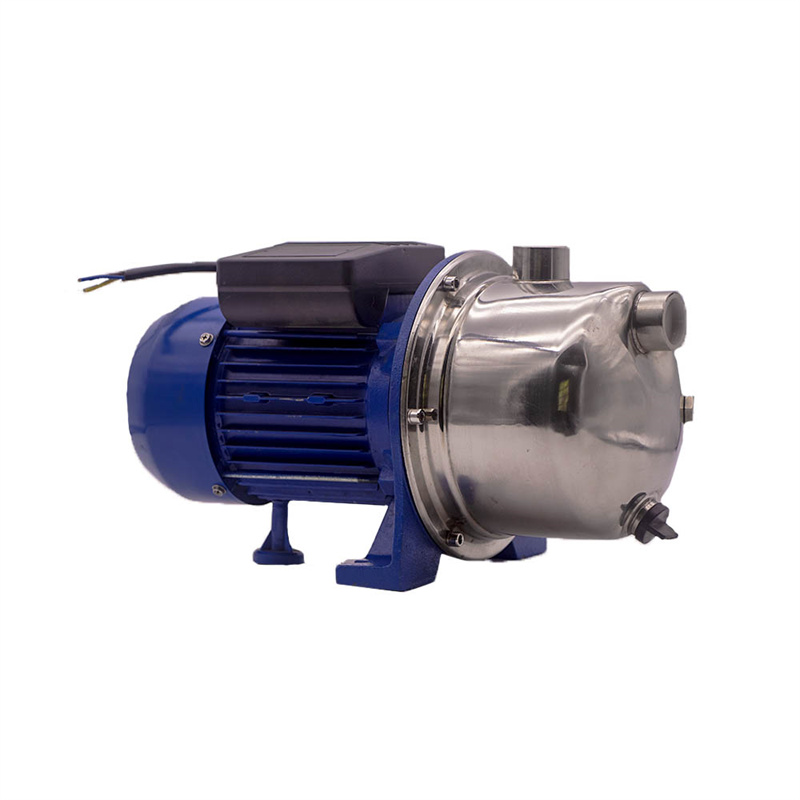

PICTURES OF PUMP

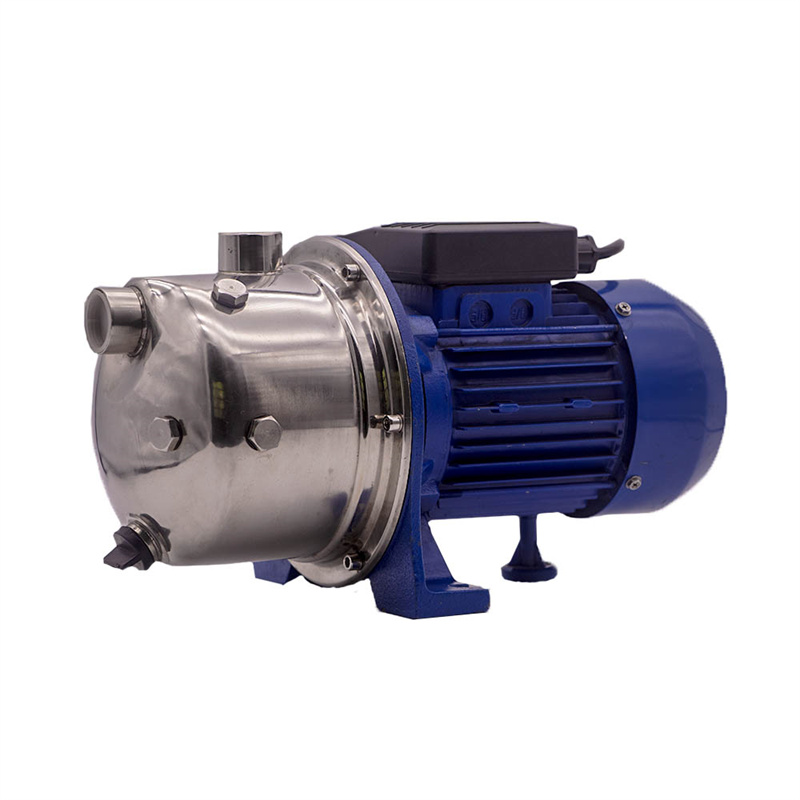

0.6HP 0.46KW JETST-60 Stainless Steel Self-Priming07

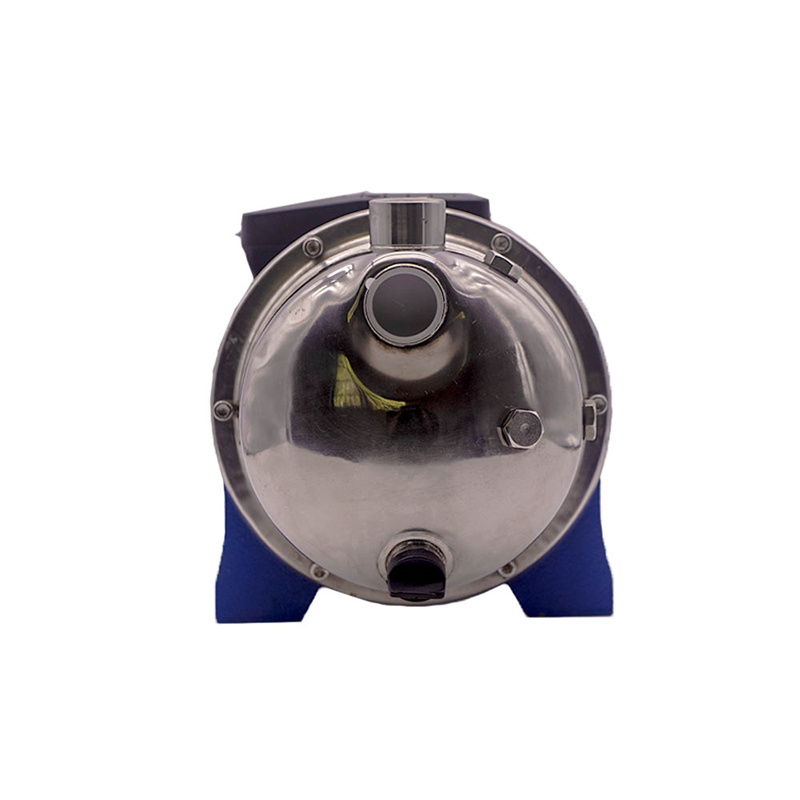

0.6HP 0.46KW JETST-60 Stainless Steel Self-Priming06
0.6HP 0.46KW JETST-60 Stainless Steel Self-Priming05

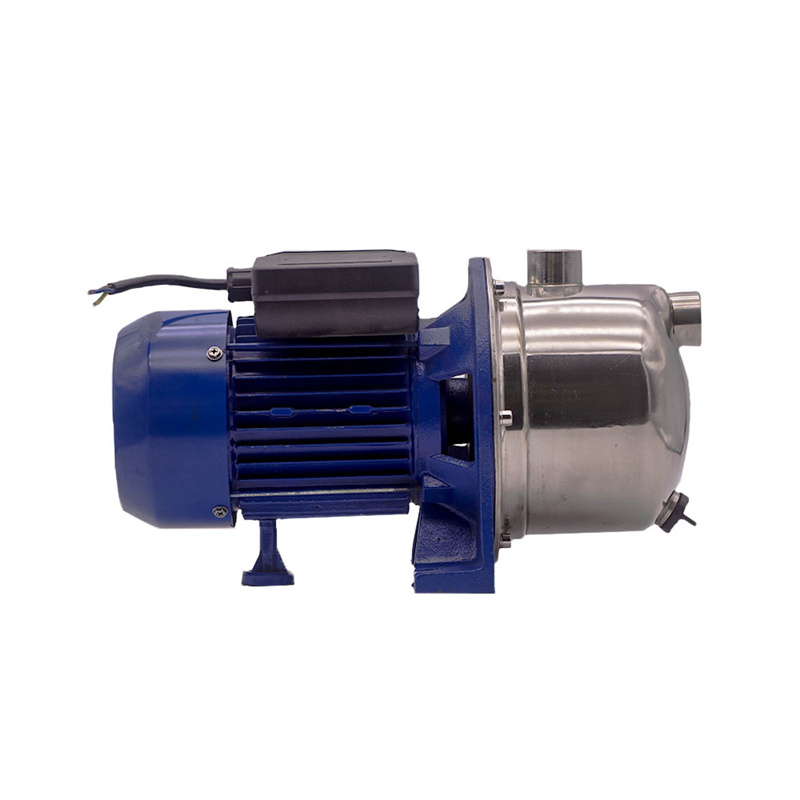

0.6HP 0.46KW JETST-60 Stainless Steel Self-Priming04

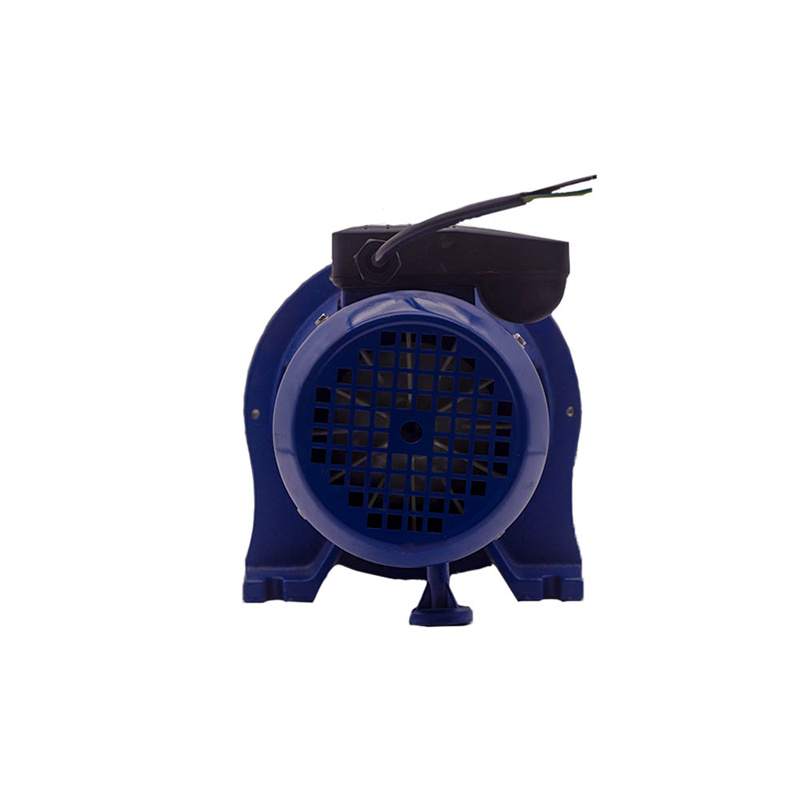

0.6HP 0.46KW JETST-60 Stainless Steel Self-Priming02

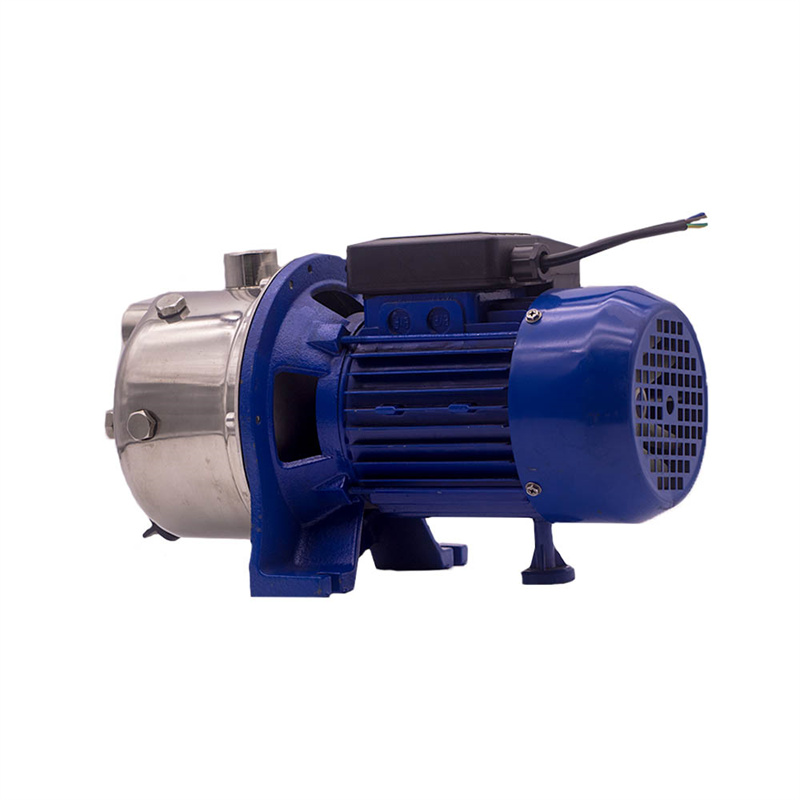

0.6HP 0.46KW JETST-60 Stainless Steel Self-Priming01

PRODUCT SPECIFICATIONS

TECHNICAL DATA

product description03

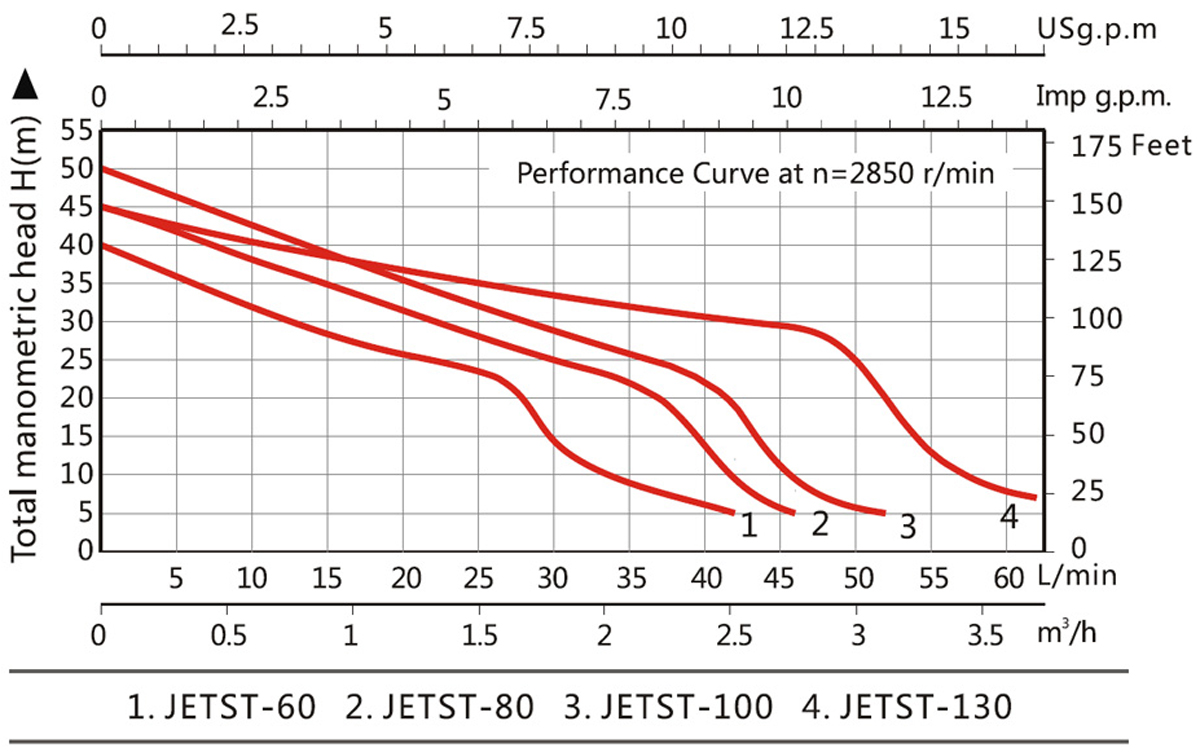

PERFORMANCE CHART AT N=2850min

product-description3

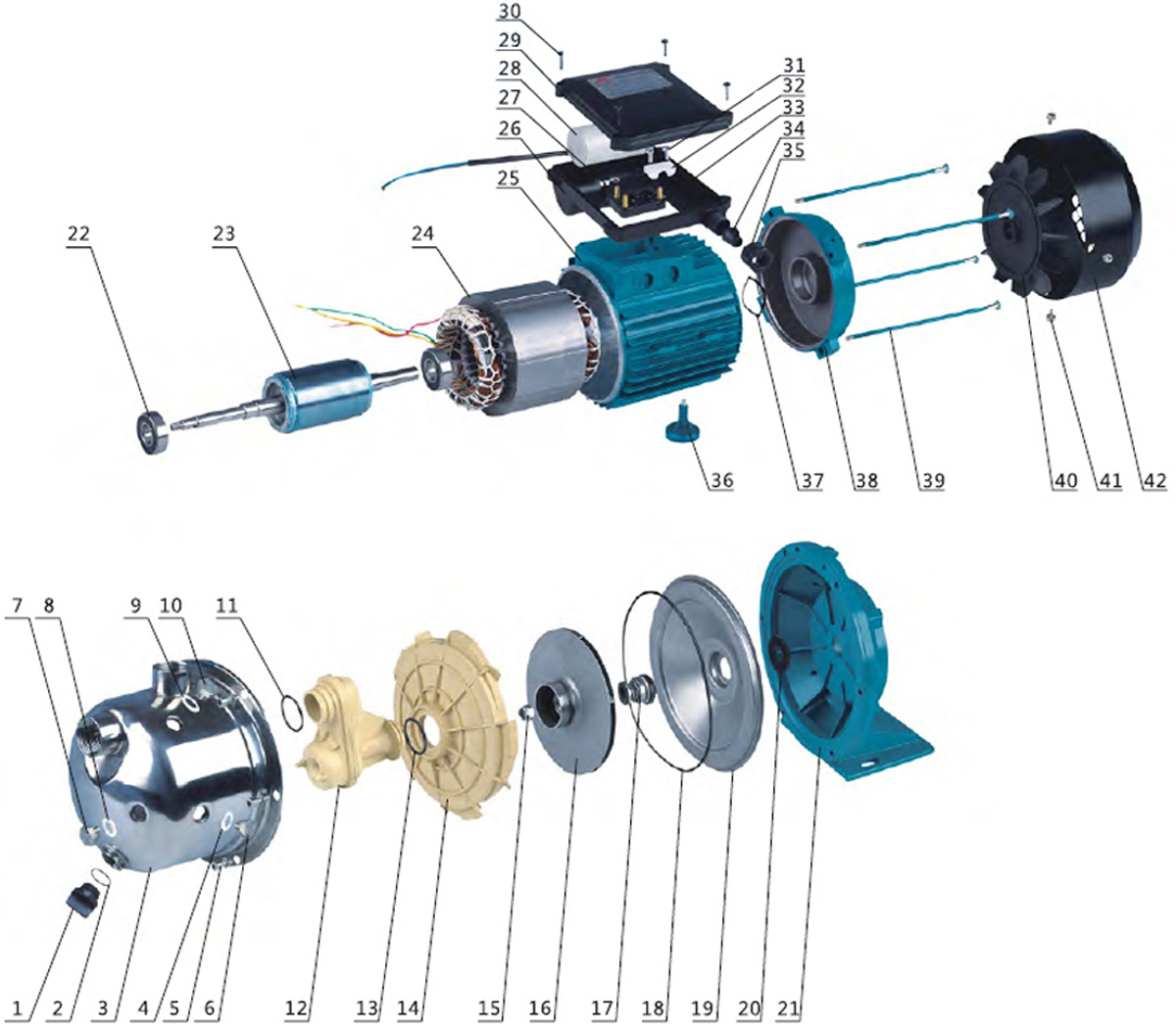

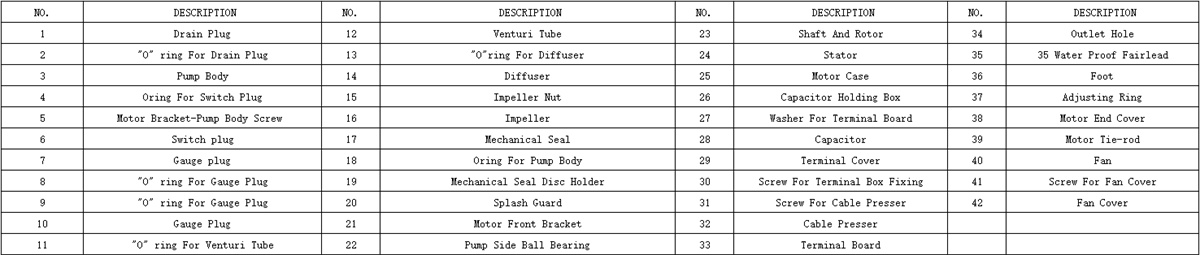

STRUCTURE

product-description2 product description02

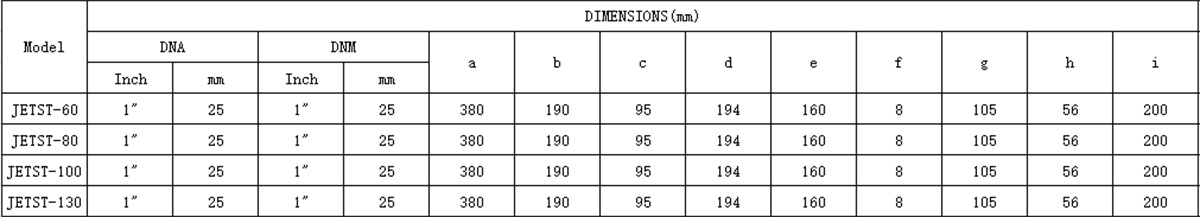

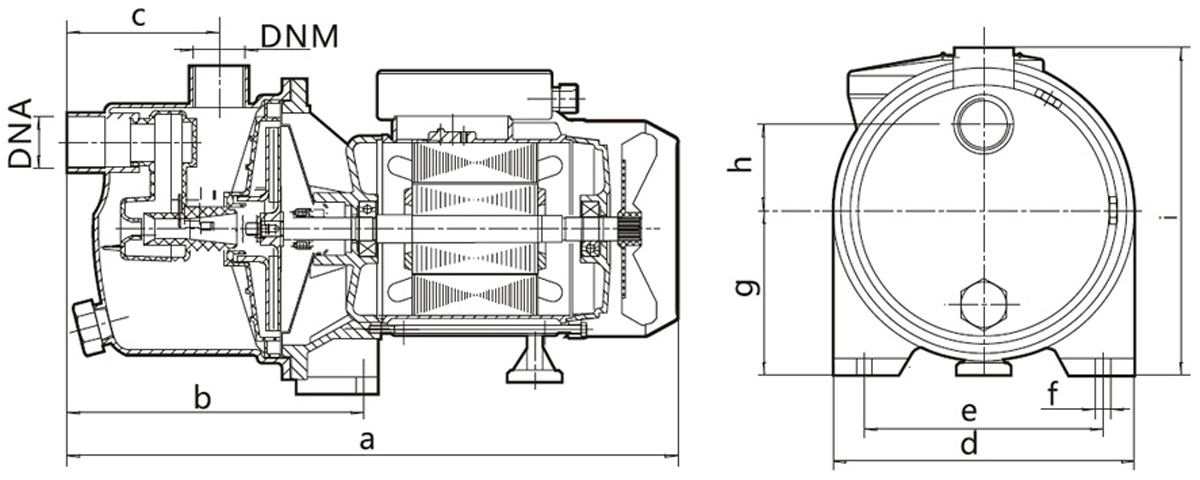

SIZE DETAILS OF PUMP

product-description1 product description01

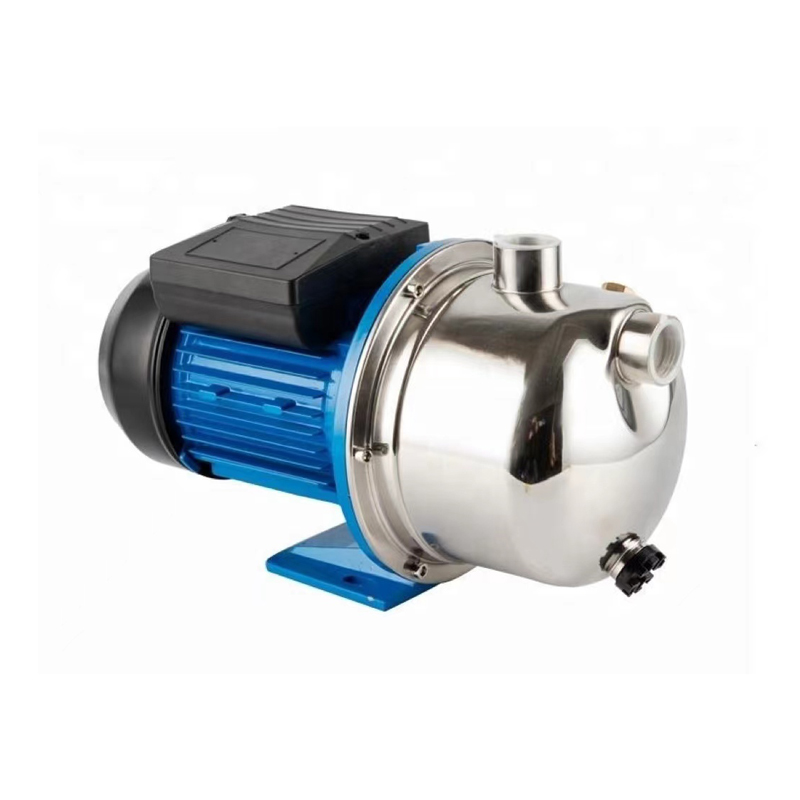

REFERENCE COLORS

0.6HP-1.2HP-JET-ST-Series-Stainless-Steel-Self-Priming-Water-Pump3
0.6HP-1.2HP-JET-ST-Series-Stainless-Steel-Self-Priming-Water-Pump1

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 40~120mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
