0.32HP-0.5HP PS Series Self-priming Water Pump

Short Description:

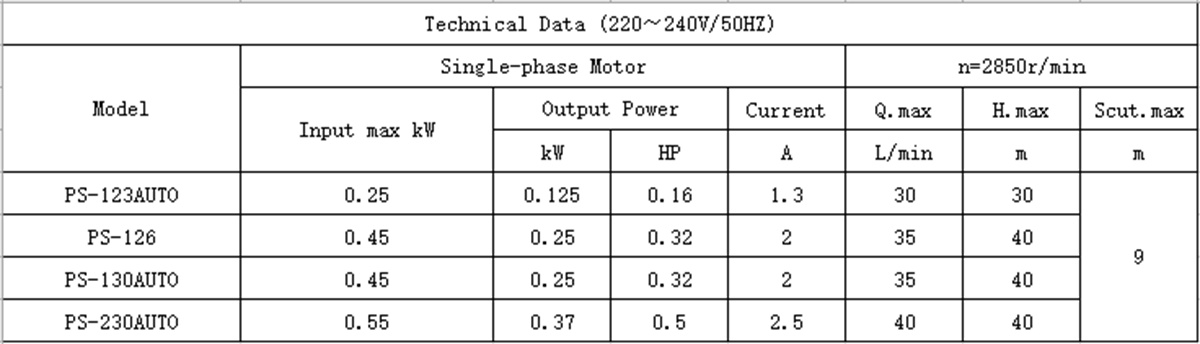

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
PS-123AUTO 0.25 0.125 0.16 1.3 30 30 9
PS-126 0.45 0.25 0.32 2 35 40
PS-130AUTO 0.45 0.25 0.32 2 35 40
PS-230AUTO 0.55 0.37 0.5 2.5 40 40

Product Detail

Product Tags

APPLICATION

product-description1

PS Series Self-priming Water Pump

PS series self-prime water pumps are suitable for pumping clean water. Thinks to the specific shape of the impeller, peripheral pumps can reach high pressures. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water from surge tanks, gardening, and increasing of water pressure.

PS Series self-priming pumps, the perfect solution for all your water pumping needs. This versatile high performance pump is designed to make your life easier by providing a reliable, efficient pumping experience.

PS series self-priming pumps are equipped with powerful motors which ensure excellent pumping capacity. With the output [insert output here], the pump handles various pumping tasks effortlessly.

One of the outstanding features of this pump is its self-priming technology. This means it starts automatically, eliminating the need to manually prime with water before starting the pump. Not only does this save time and energy, but it also helps in situations where water supplies are limited or unavailable. The self-priming feature ensures hassle-free operation and peace of mind knowing that the pump will start pumping almost immediately.

Additionally, PS Series pumps are manufactured with durability and longevity in mind. Its robust construction and corrosion-resistant materials guarantee a long service life, even in harsh environments. This makes it ideal for both residential and commercial use. Plus, the pump's compact design and lightweight construction make it portable so you can take it with you wherever you go.

Safety is a top priority for pumps, and the PS Series self-priming pumps excel in this regard. It has built-in thermal protection that automatically shuts off the pump if it overheats, preventing any potential damage. This protection not only prolongs the life of the pump, but also ensures user safety.

In conclusion, the PS series of self-priming water pumps are a reliable, efficient and user-friendly solution for all your water pumping needs. Whether you are a homeowner, gardener, or professional contractor, this pump will prove to be an invaluable tool. Experience the convenience and powerful functions of the PS series water pump, allowing you to easily complete the pumping task.

WORKING CONDITIONS

Max Suction: 9M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty

PUMP

Pump Body: Cast Iron / Cast Iron with brass insert
Impeller: Brass/Plastic with brass insert
Mechanical Seal: Carbon/Ceramic/Stainless Steel

MOTOR

Single Phase
Heavy Duty Continuous Work
Motor Housing: Steel-plate
Shaft: Carbon Steel/Stainless Steel
Insulation: Class B/Class F
Protection: IP44/IP54
Cooling: External Ventilation

REFERENCE PICTURES

0.5HP 0.37KW PS-130 Self-priming Water Pump06

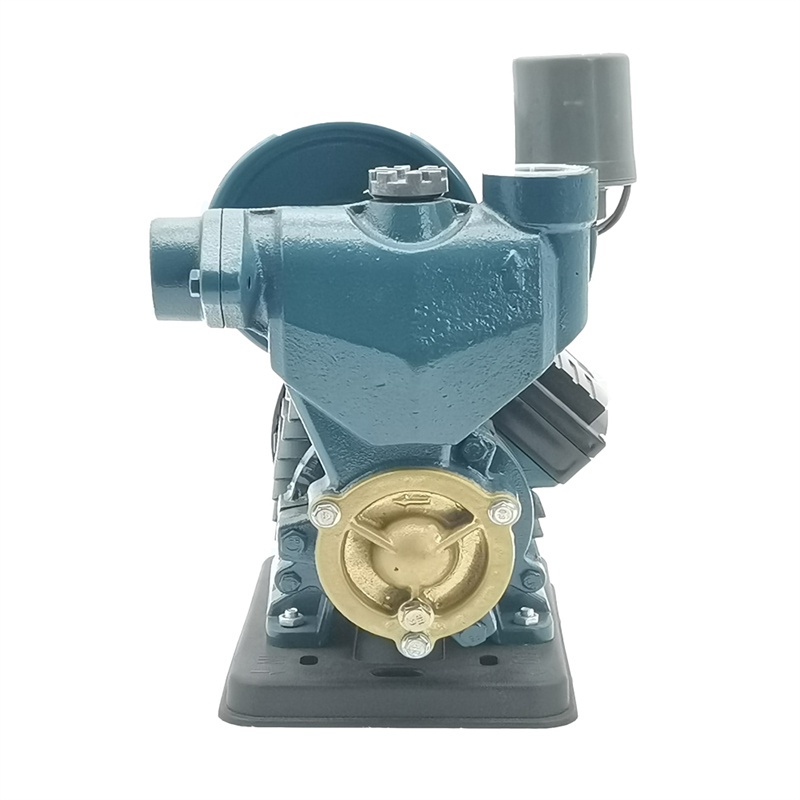

0.5HP 0.37KW PS-130 Self-priming Water Pump02

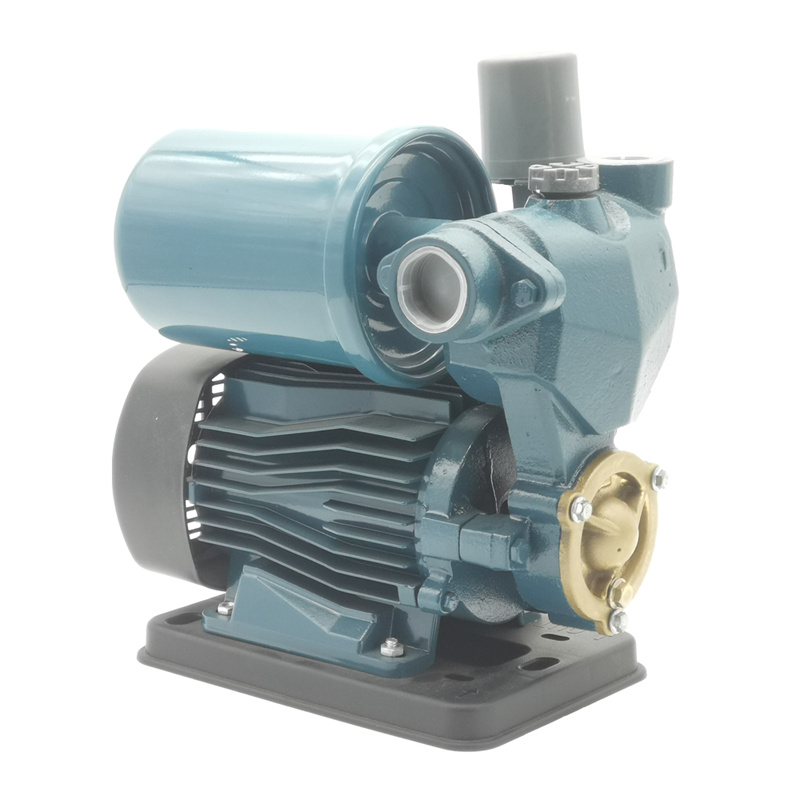

0.5HP 0.37KW PS-130 Self-priming Water Pump07

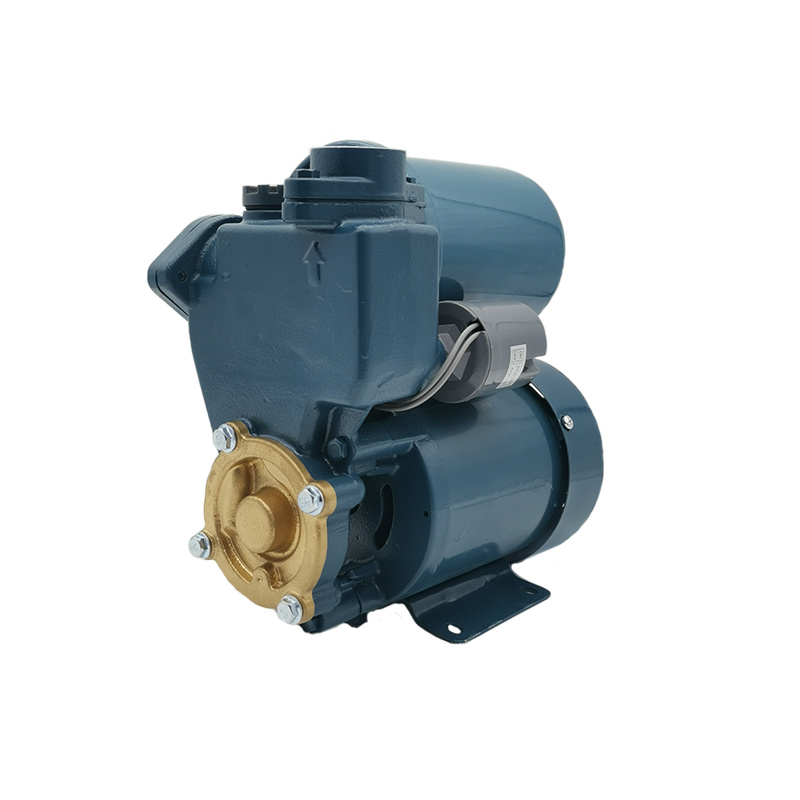

PS-130 1

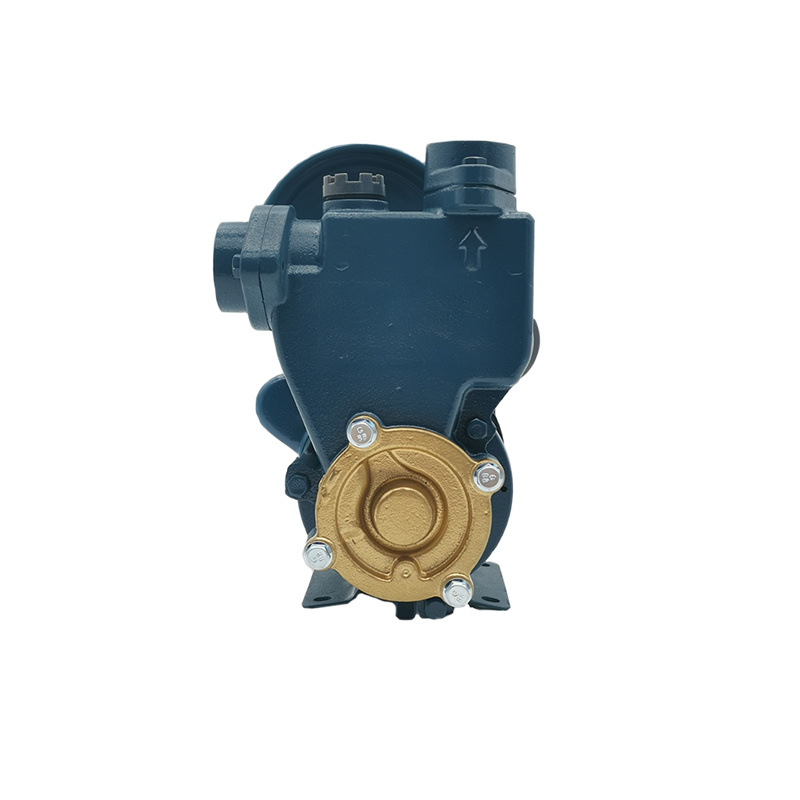

PS-130 5

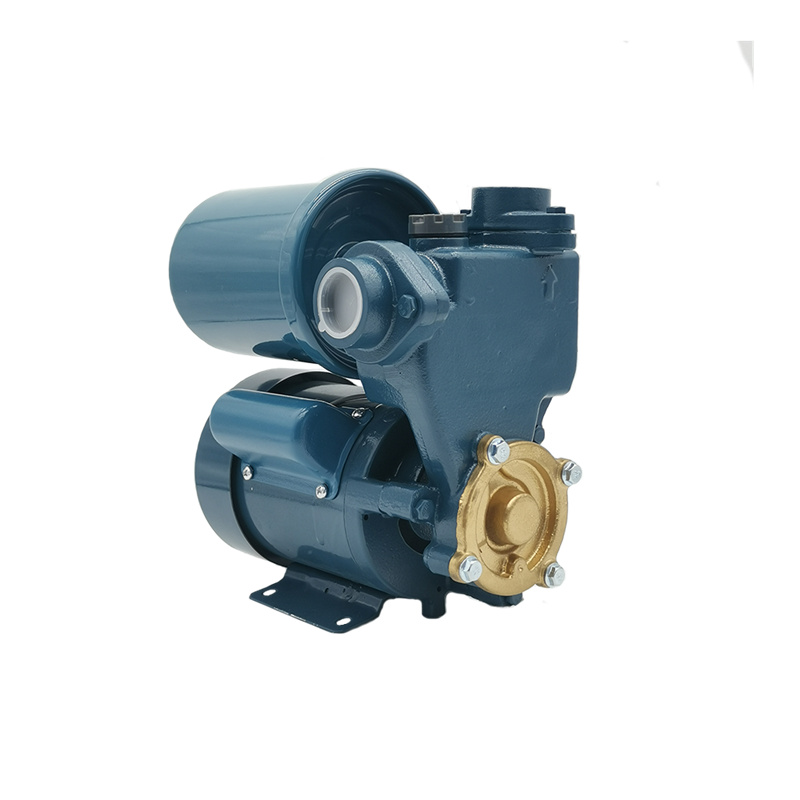

PS-130 2

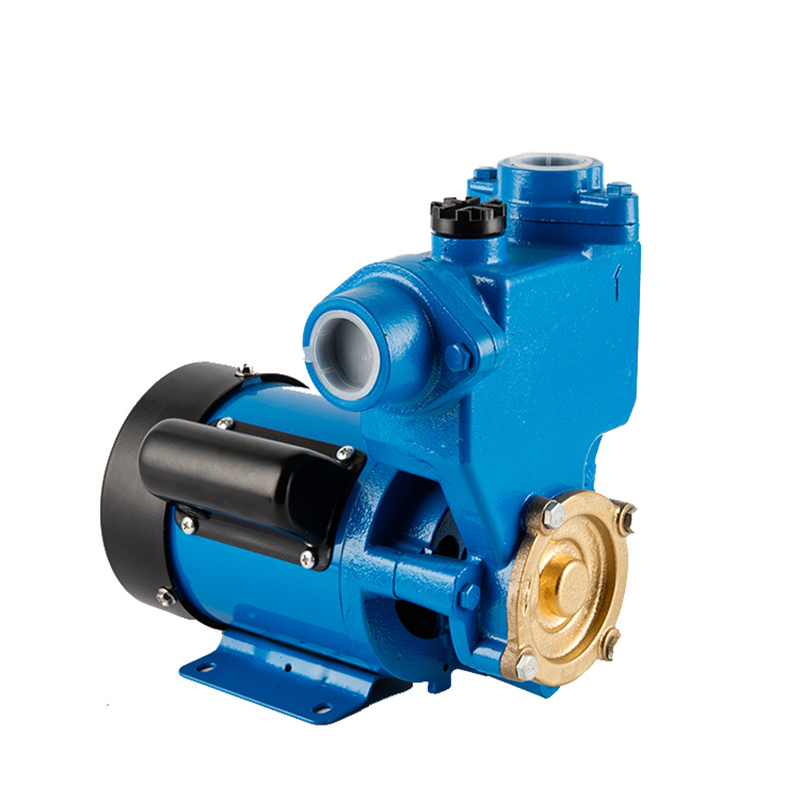

PS-126

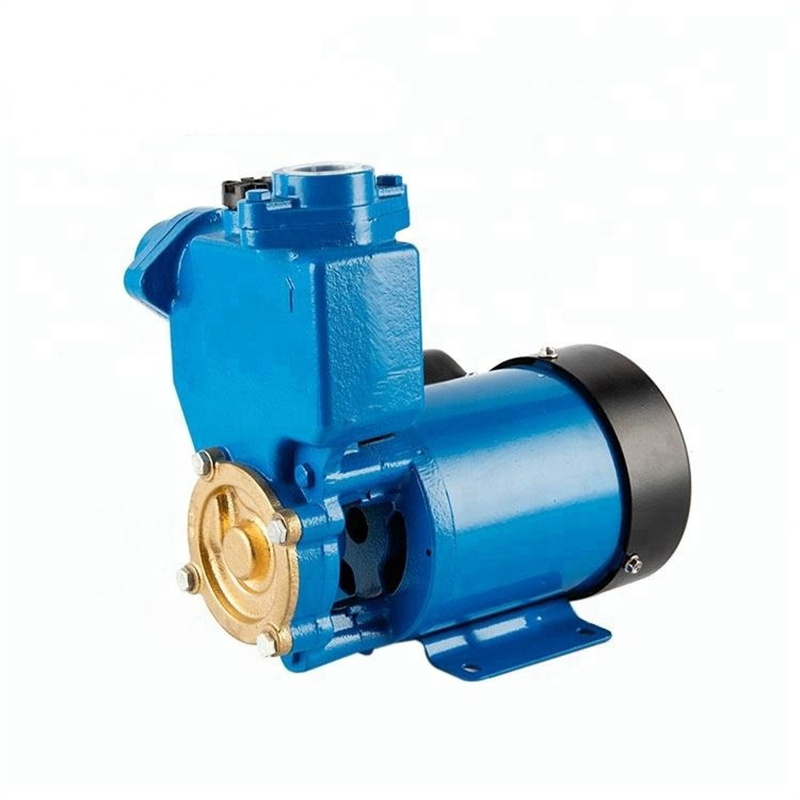

PS126-1

PRODUCT SPECIFICATIONS

TECHNICAL DATA

product description01

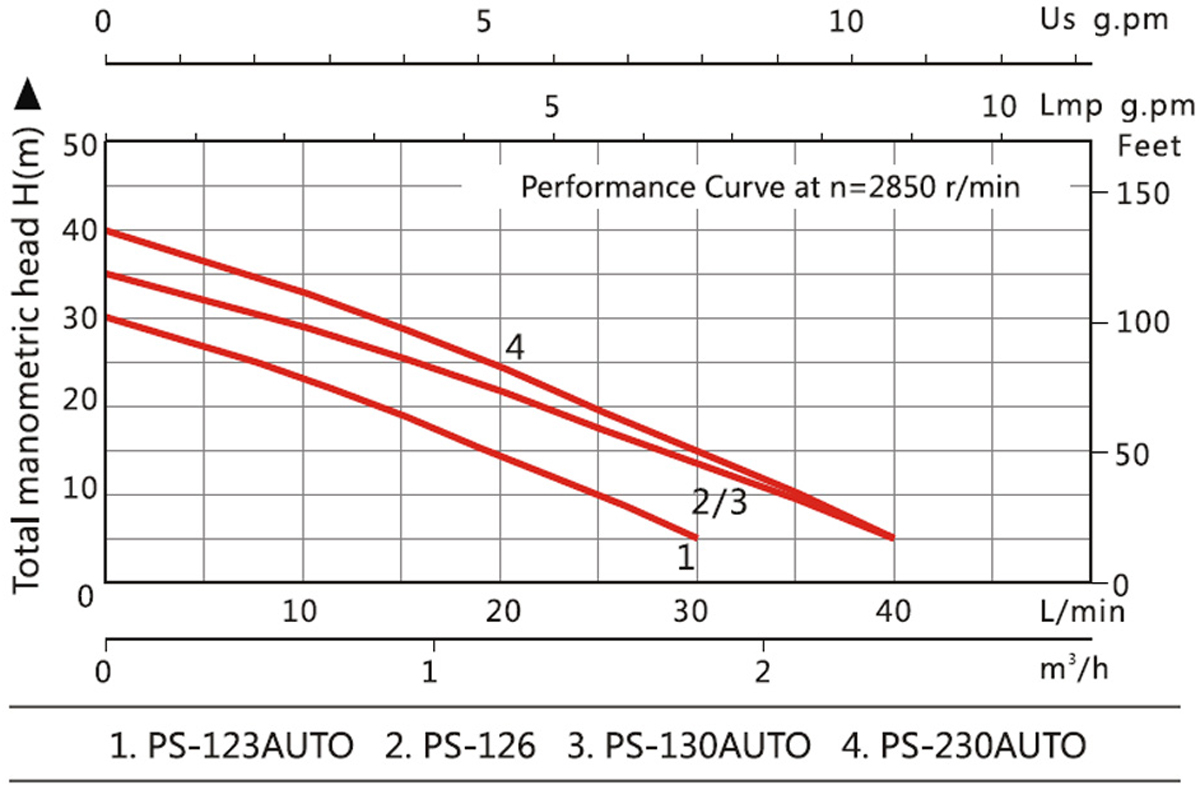

PERFORMANCE CHART AT N=2850min

product-description3

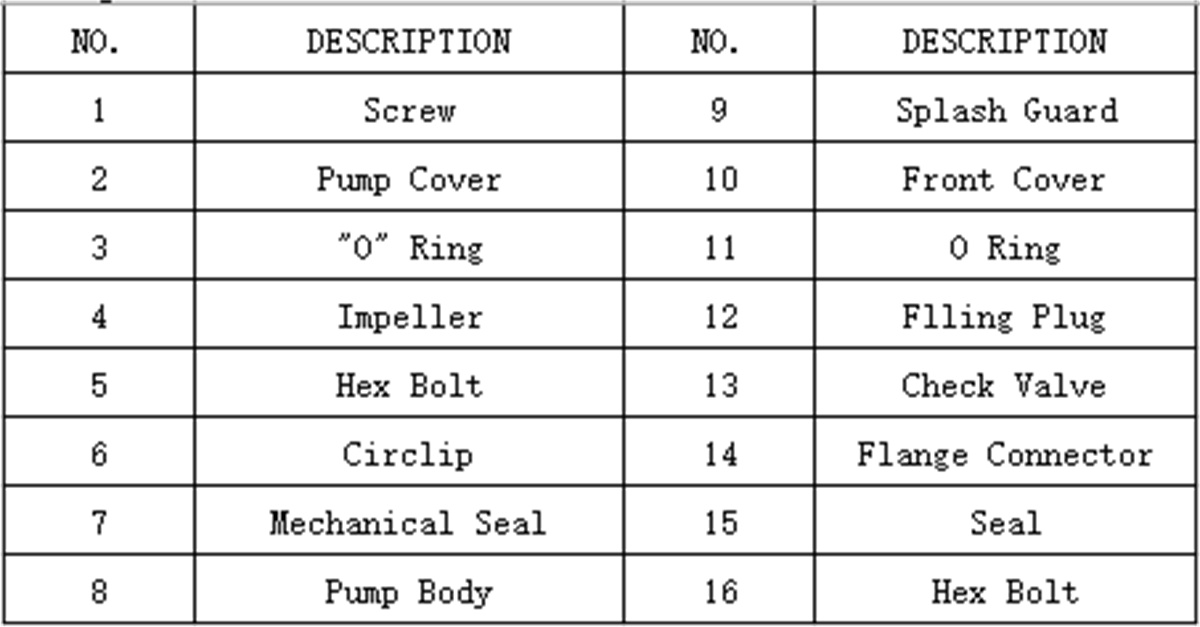

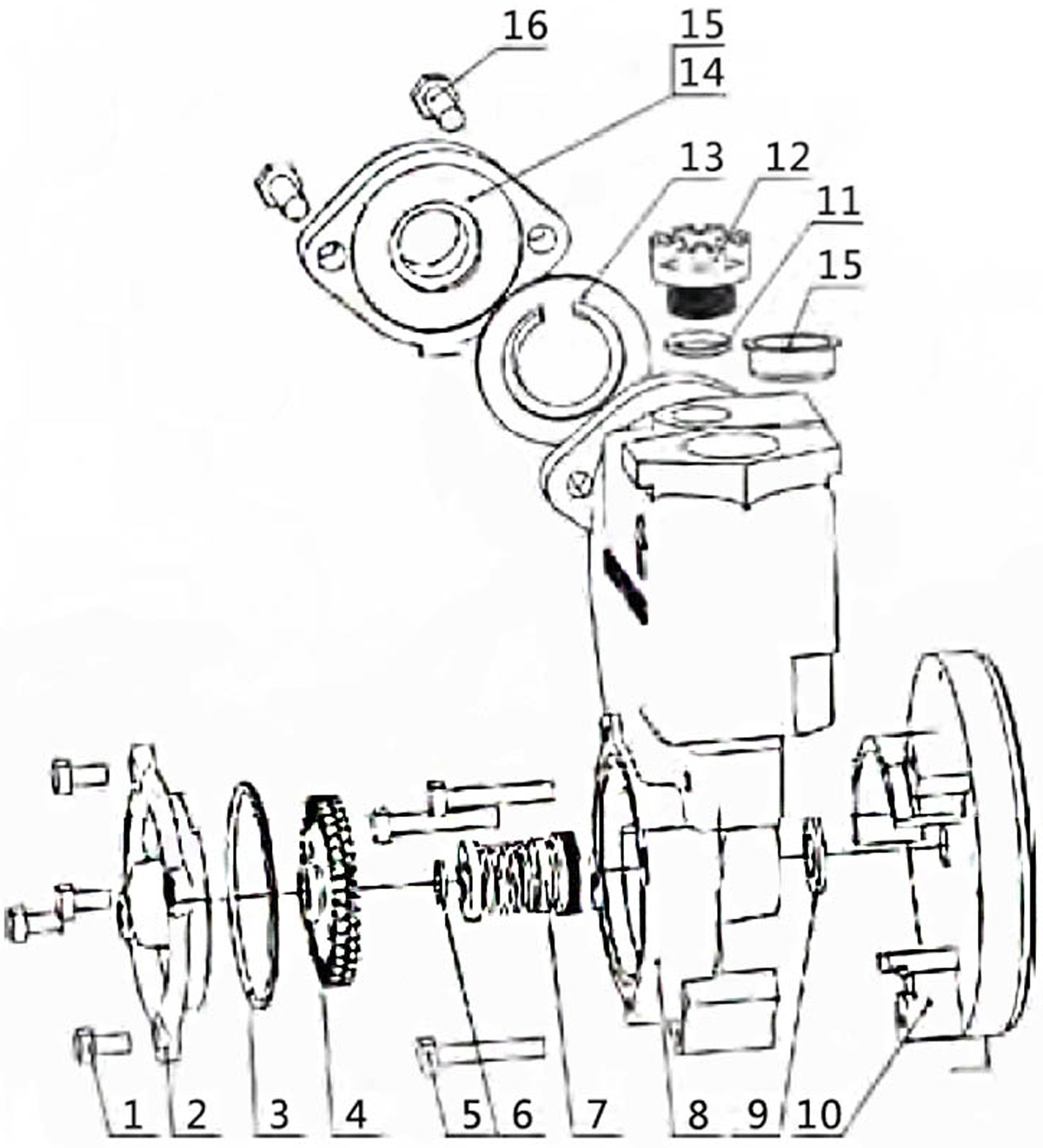

STRUCTURE OF PUMP

product-description1 product description03

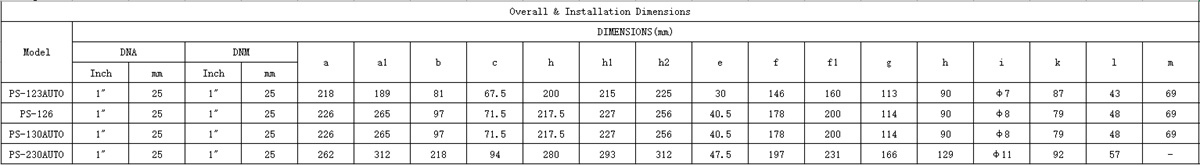

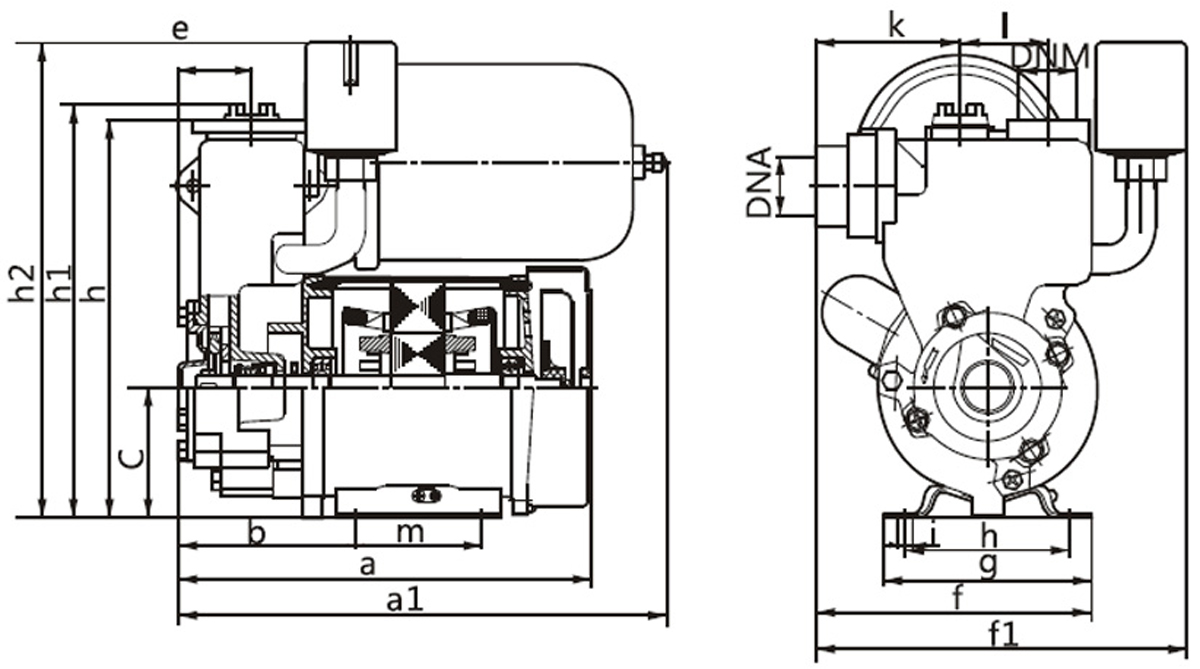

SIZE DETAILS OF PUMP

product-description2 product description02

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 30~70mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
