0.5HP -1HP DBZ Series Self-priming Water Pump

Short Description:

Technical Data (220~240V/50HZ)
Model Single-phase Motor   n=2850r/min
Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
DBZ-60 0.37 0.5 1.8 35 35 9
DBZ-70 0.55 0.75 3.5 52 40
DBZ-80 0.75 1 4 57 50

Product Detail

Product Tags

Applicable Scene

product-description1

DBZ series

DBZ series of self-priming pumps, the cutting-edge solution for all your water pumping needs. Designed with advanced technology and premium features, this pump is the perfect investment for homeowners, commercial establishments, and more.

The DBZ series of self-priming water pumps are known for their excellent performance and efficiency. With a powerful motor and self-priming feature, this pump effortlessly pumps water from a variety of water sources including wells, taps, lakes and ponds.

What sets the DBZ series of self-priming water pumps apart is their reliability and durability. Made from high quality materials, this pump will stand the test of time. Whether pumping water for irrigation, or supplying water to your home, this pump ensures consistent performance in any situation.

In addition to their high performance, the DBZ series self-priming pumps are designed with safety in mind. It is equipped with built-in protection mechanisms against overheating, overloading and overstressing. This ensures pump life and protects your investment.

In addition, DBZ series self-priming water pumps are compact and stylish in design, easy to install and transport. Whether you need to move it between locations or store it away when not in use, this pump's lightweight and ergonomic design make it a breeze.

Working CONDITIONS

Max Suction: 8M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty

PUMP

Pump Body: Cast Iron
Impeller: Brass
Front Cover: Cast Iron
Mechanical Seal: Carton / Ceramic / Stainless Steel

MOTOR

Wire: Copper Wire / Aluminum Wire
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum / Cast Iron
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

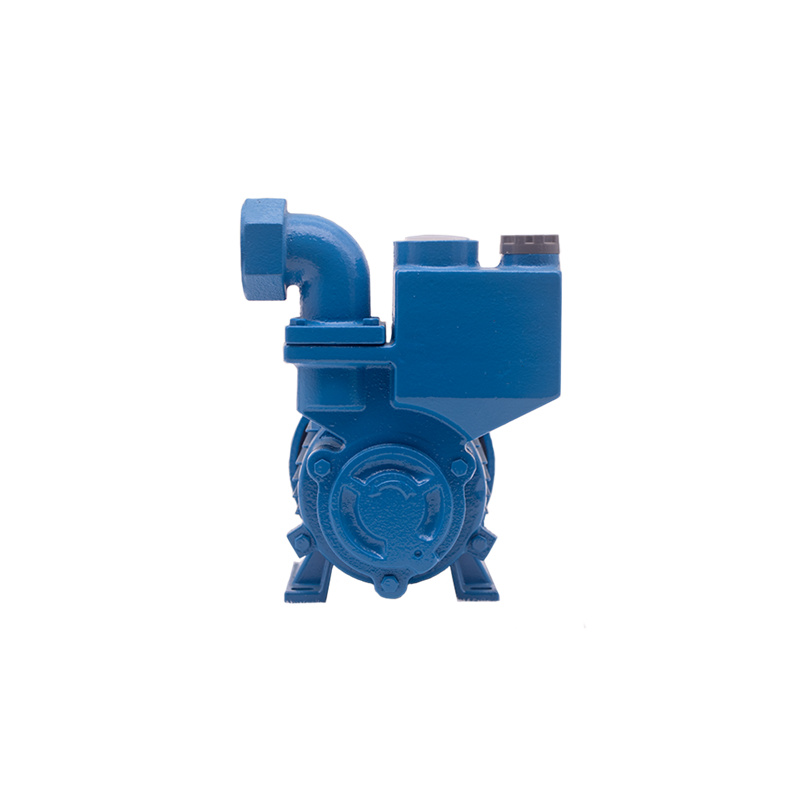

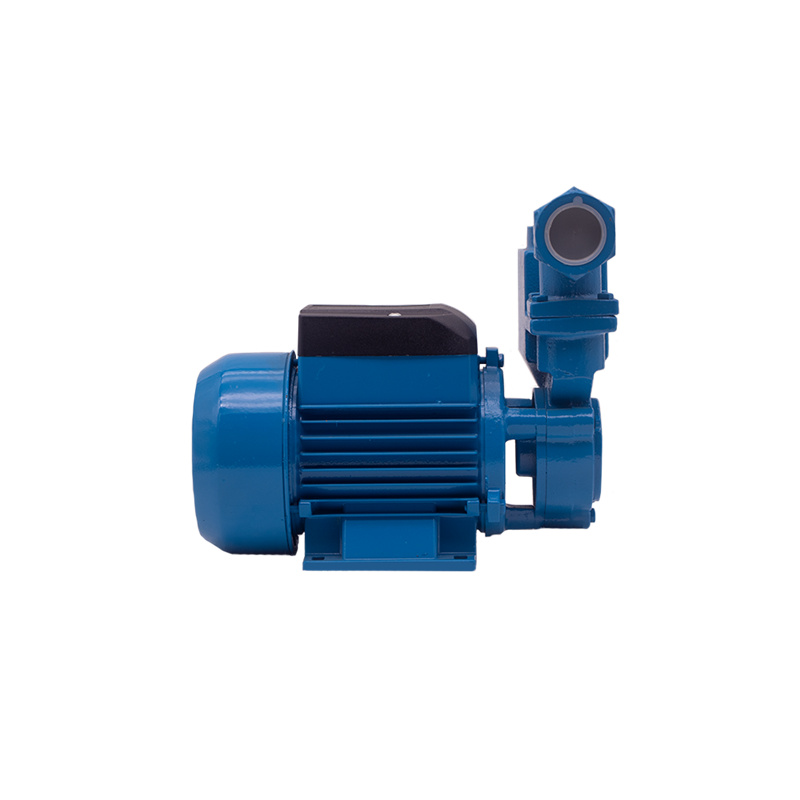

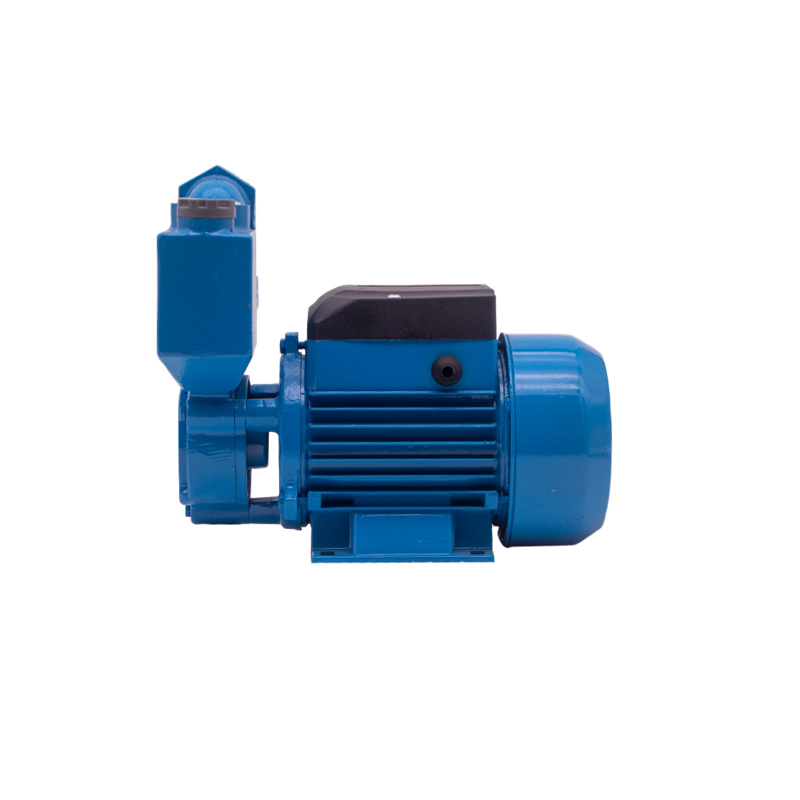

PICTURES OF THE PUMP

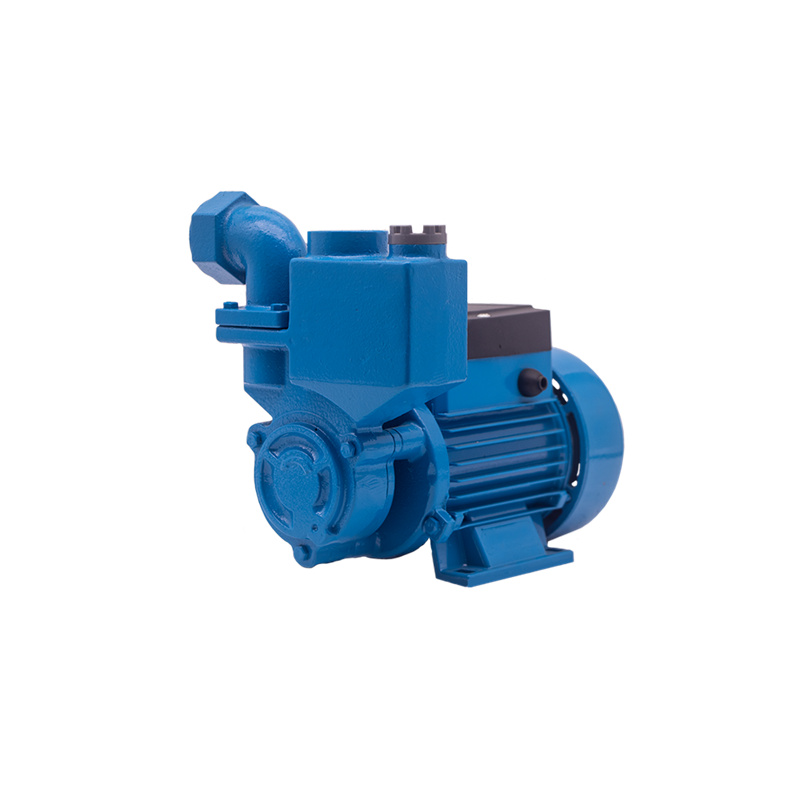

0.5HP 0.37KW DBZ-60 Self-priming Water Pump08
0.5HP 0.37KW DBZ-60 Self-priming Water Pump07
0.5HP 0.37KW DBZ-60 Self-priming Water Pump01

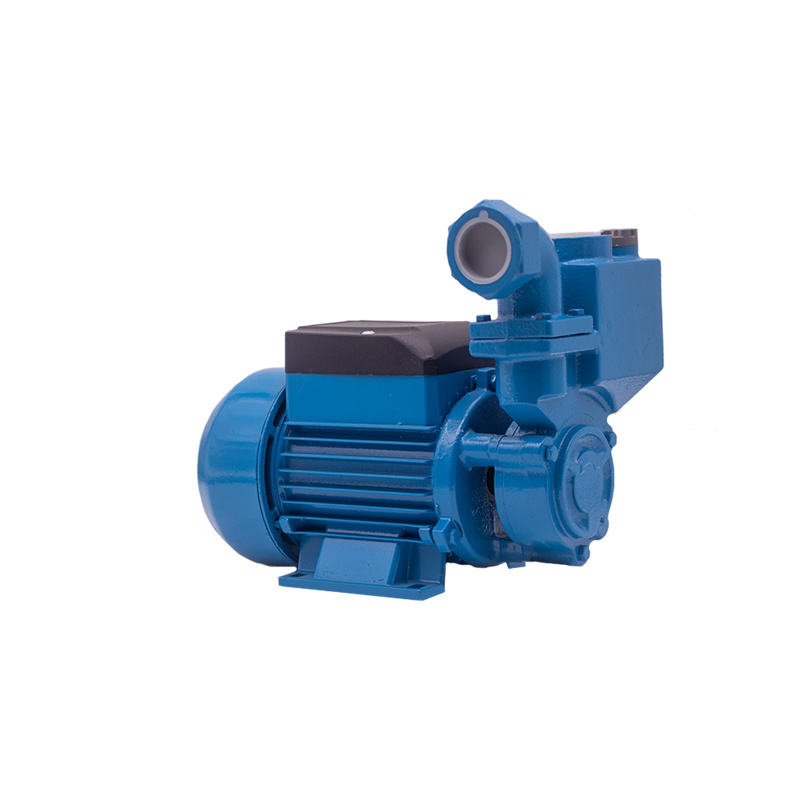

0.5HP 0.37KW DBZ-60 Self-priming Water Pump06

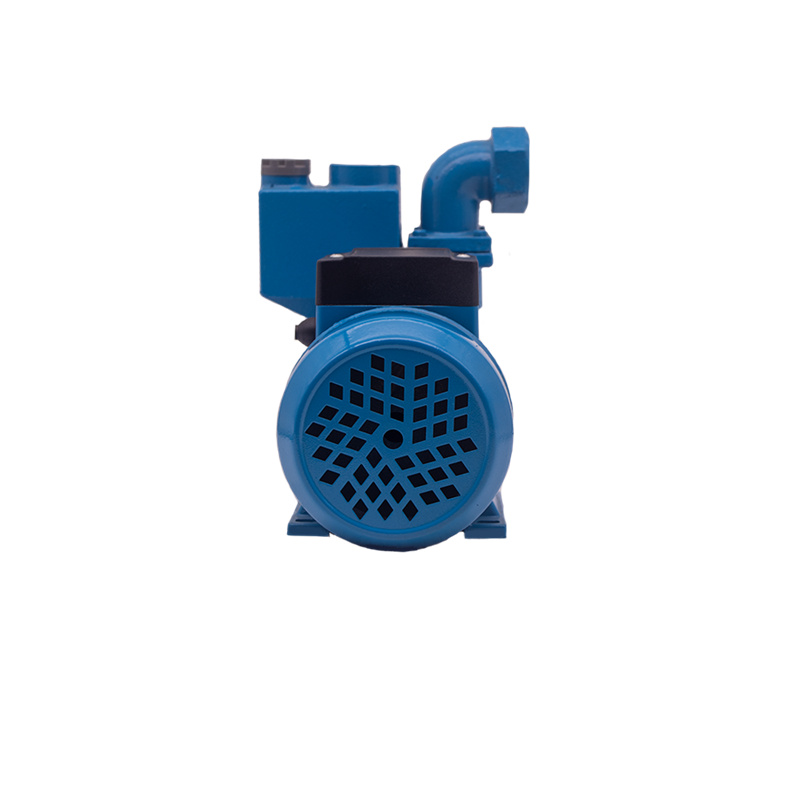

0.5HP 0.37KW DBZ-60 Self-priming Water Pump03
0.5HP 0.37KW DBZ-60 Self-priming Water Pump05

PRODUCT SPECIFICATIONS

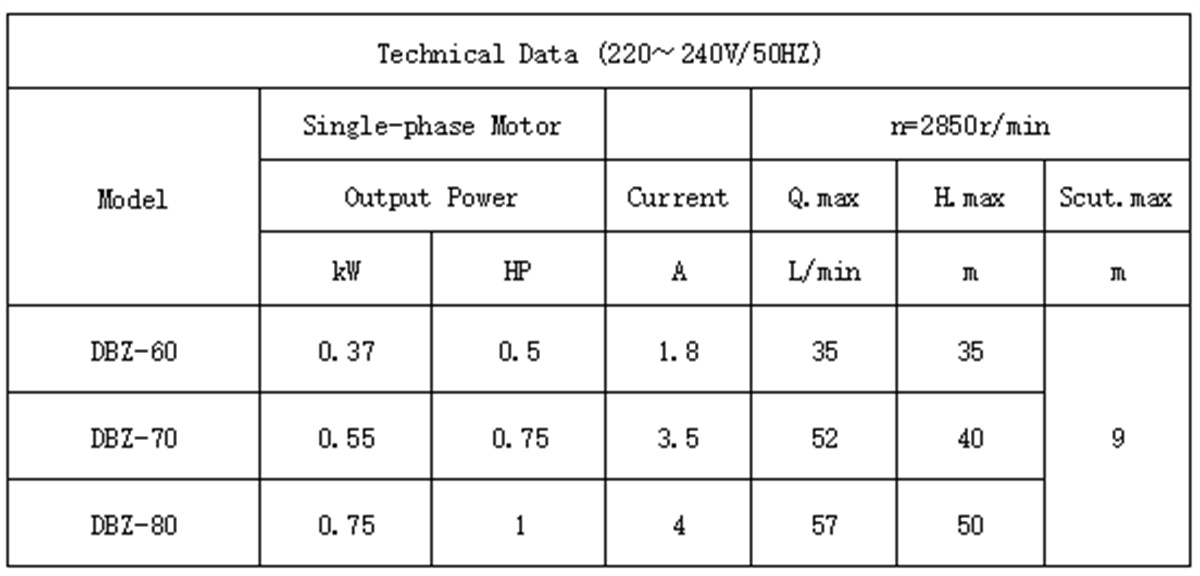

TECHNICAL DATA

product description02

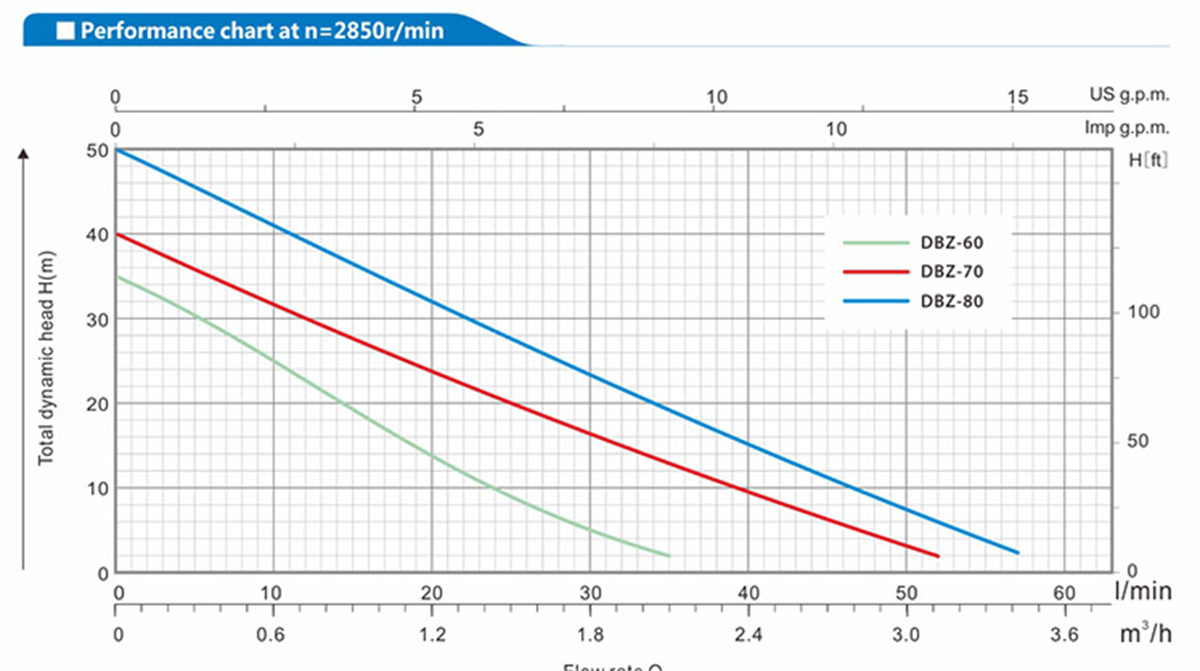

PERFORMANCE CHART AT N=2850min

product description03

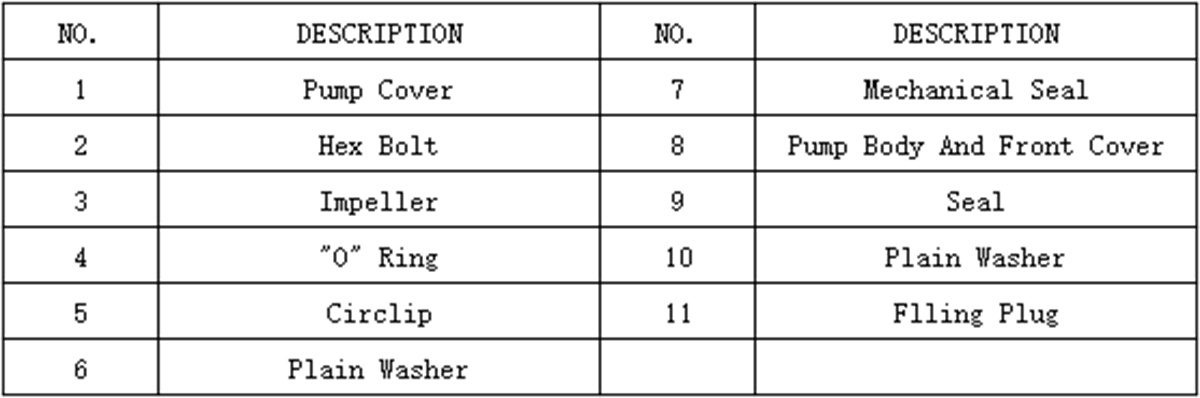

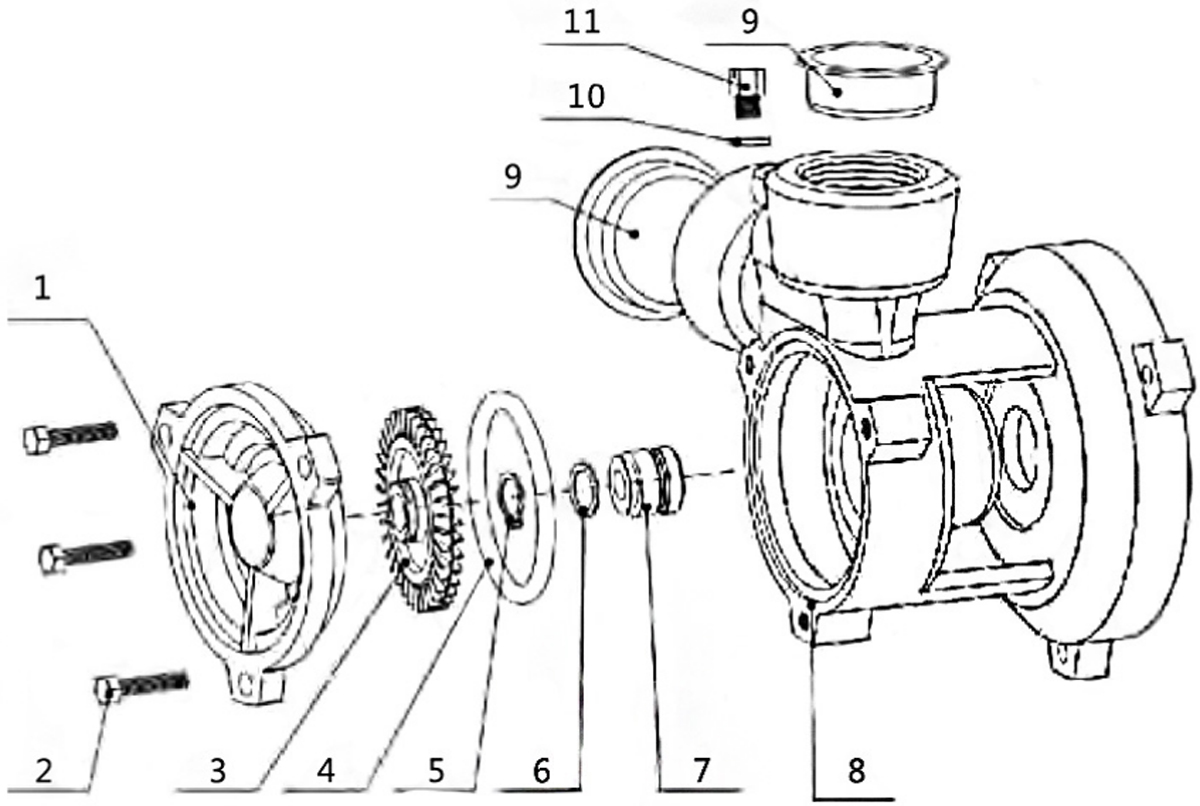

STRUCTURE OF PUMP

product-description1 product description04

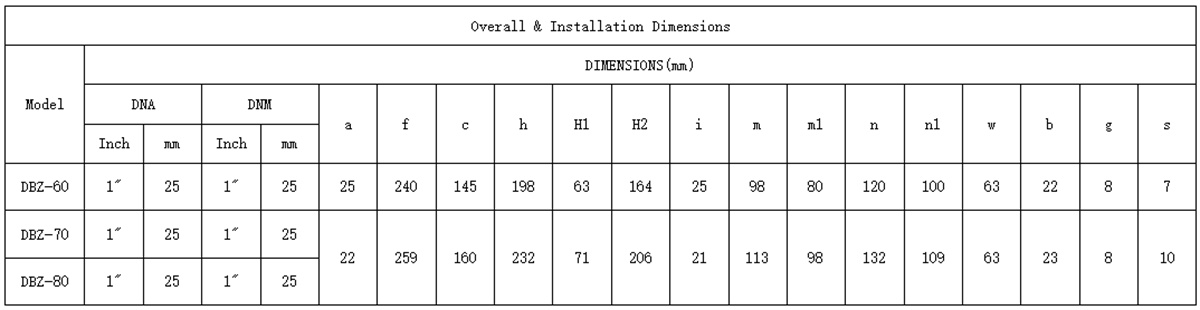

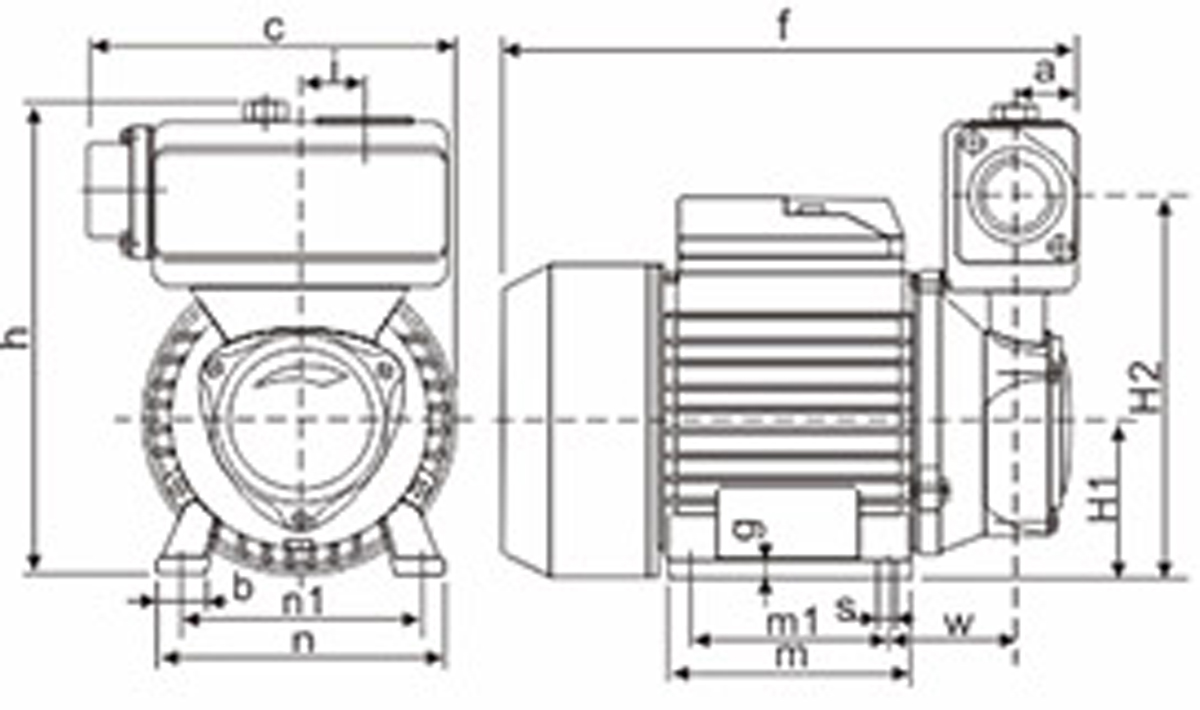

SIZE DETAILS OF PUMP

product-description2 product description01

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 30~120mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
