0.5HP-1HP QB Series Peripheral Water Pump

Short Description:

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
QB-60/ST/B 0.55 0.37 0.5 2.5 40 40 9
QB-70/ST/B 0.8 0.55 0.75 3.8 45 50
QB-80/ST/B 1.1 0.75 1 5.2 50 55
QB-90 1.5 1.1 1.5 7 80 70

Product Detail

Product Tags

asdzxc1

Application

Designed with efficiency and convenience in mind, this state-of-the-art water pump system combines innovative technology with exceptional performance. It has a powerful motor and intelligent control system to provide an impressive boosting experience, far surpassing traditional water pumps.

AUTO QB Series Booster Water Pump Systems are equipped with advanced features to meet all your water pressure needs. Its compact design ensures a seamless fit into any environment, be it a modern home or a busy office space. With its quiet operation, you won’t even notice it’s there – until you turn on the tap and enjoy the exhilarating high-pressure flow of water.

Installing an AUTO QB Series Booster Water Pump System is an easy task thanks to its user-friendly design and detailed instructions. Its durable construction ensures long-lasting performance, making it a worthwhile investment for years to come. Whether you need to increase water pressure in multiple bathrooms, laundry rooms, or commercial spaces, this system has you covered.

Say goodbye to weak water flow and hello to AUTO QB Series booster water pump systems. Experience the difference it can make in your everyday life – from more enjoyable showers to faster filling of tanks and containers. With its superior reliability and efficiency, you can say goodbye to low water pressure worries once and for all.

Up your water pressure game with the AUTO QB Series Booster Water Pump System – the ultimate solution for consistent strong water flow and enhanced water pressure.

Working Situation

Max Liquid Temperature: 60c

Max Ambient Temperature: +40c

Pump

Pump Body : Cast Iron

Impeller: Brass

Front Cover: Cast Iron

Mechanical Seal: Carton / Ceramic / Stainless Steel

Motor

Single Phase

Heavy Duty Continuous Work

Motor Housing:Aluminum

Shaft:Carbon Steel/Stainless Steel

Insulation:Class b/Class f

Protection:Ip44/Ip54

Cooling:External Ventilation

Accessories

Tank: 24l / 50l

Flexible House: 1”x 1”

Pressure Switch: Sk-6

Pressure Gauge: 7bar(100psi)

Brass Connector: 5way

Calbe: 1.5m

PRODUCT SPECIFICATIONS

PICTURES OF ITMES

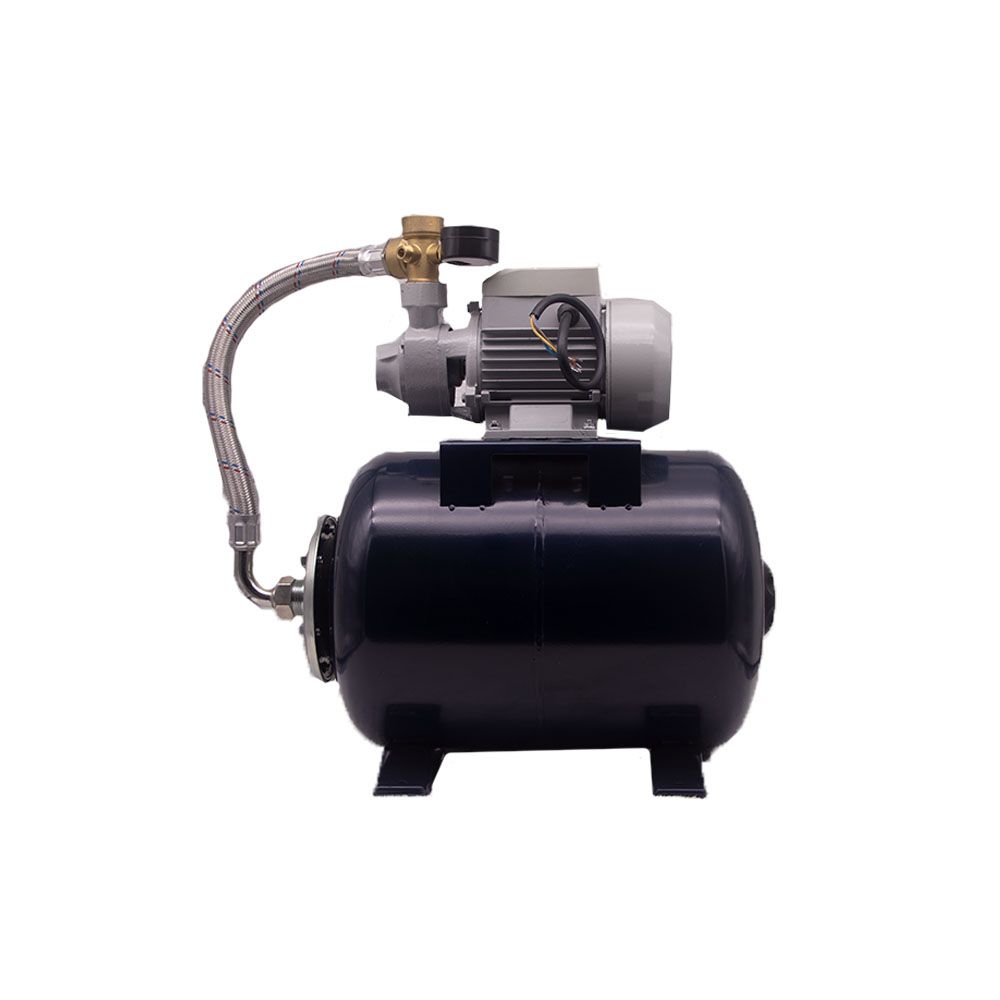

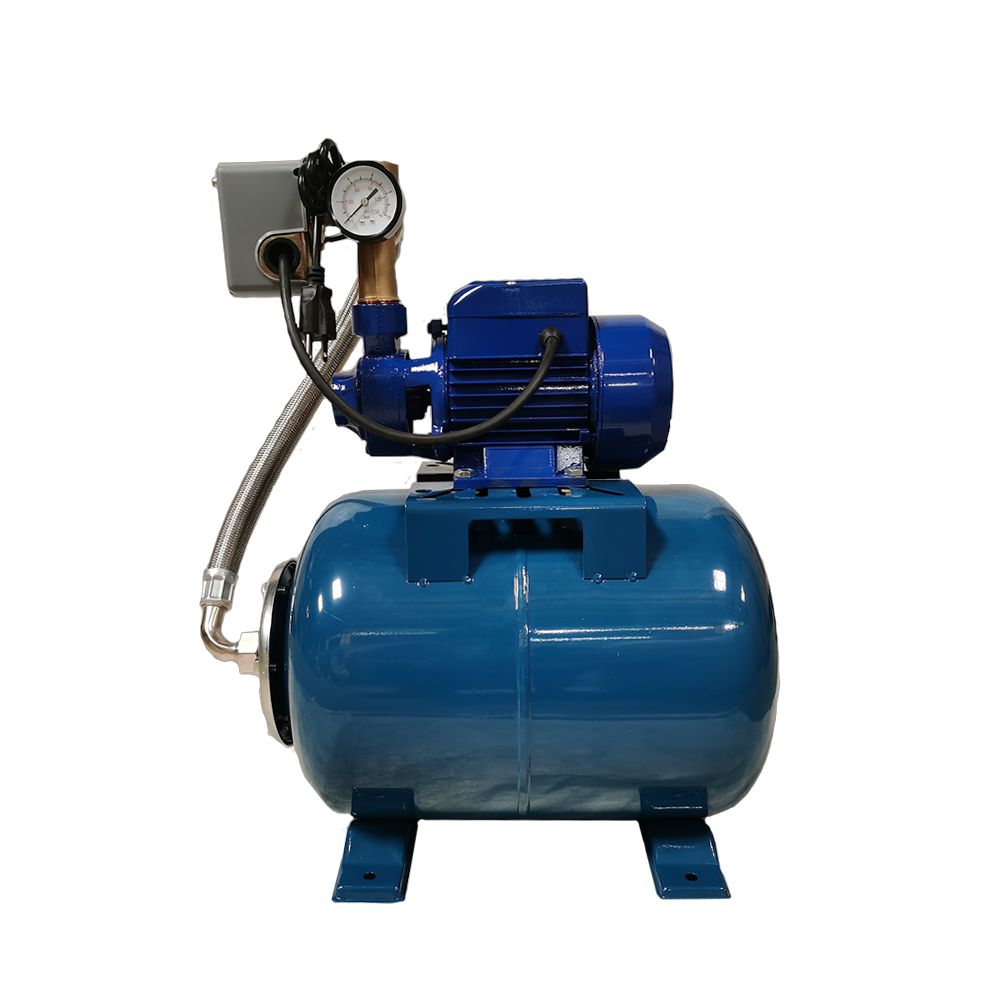

With 24L Pressure Tank

Pump2
Pump8

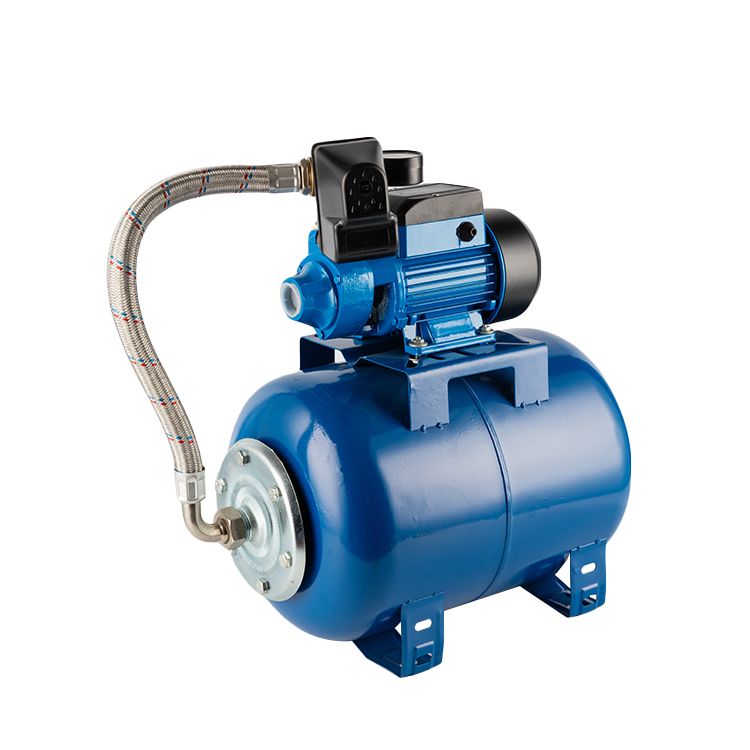

With 50L Pressure Tank

 Pump6

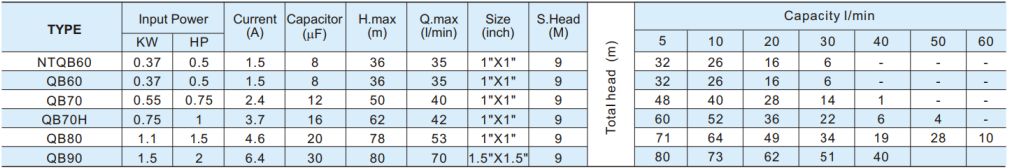

TECHNICAL DATA

asdzxcxz1

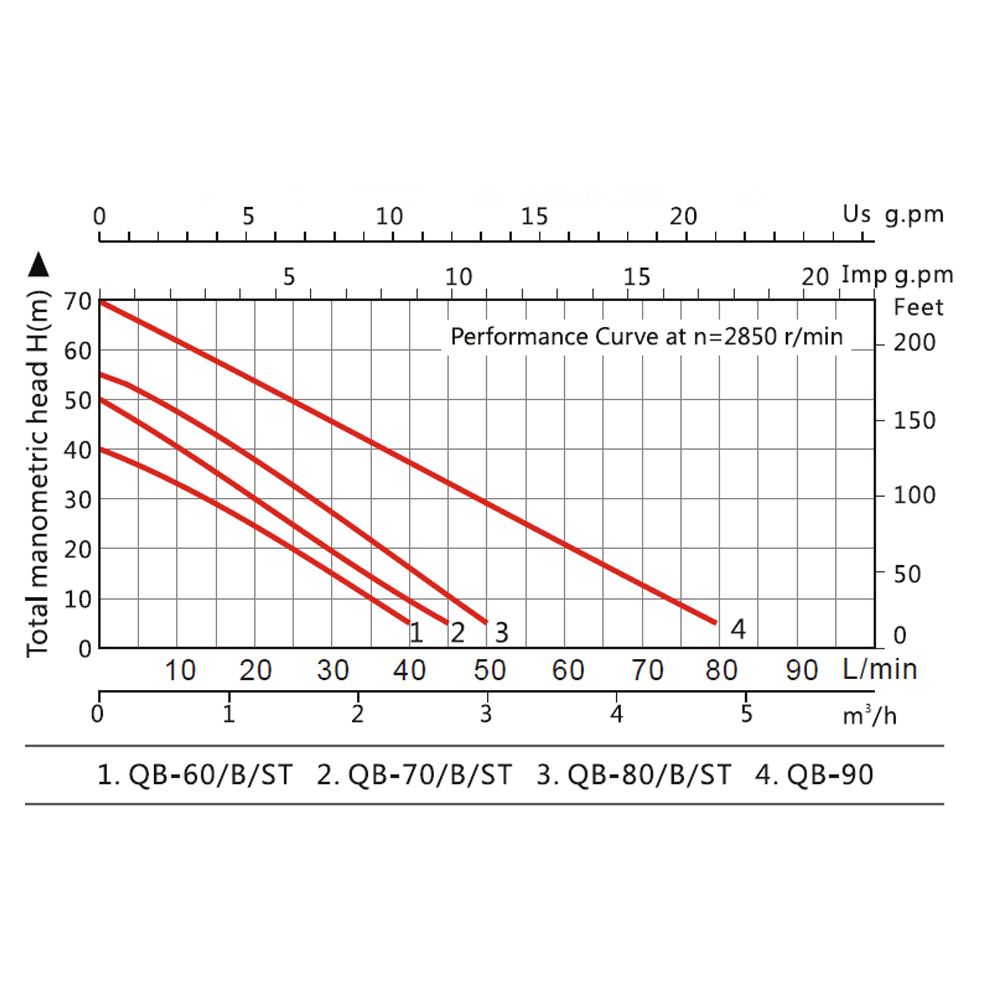

PERFORMANCE CHART AT N=2850min

Pump23

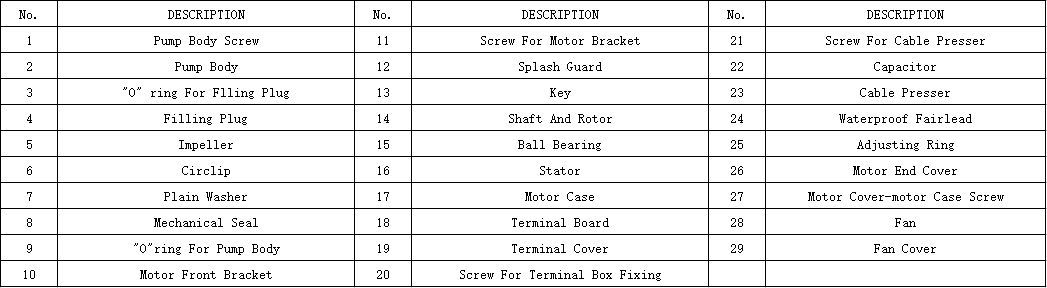

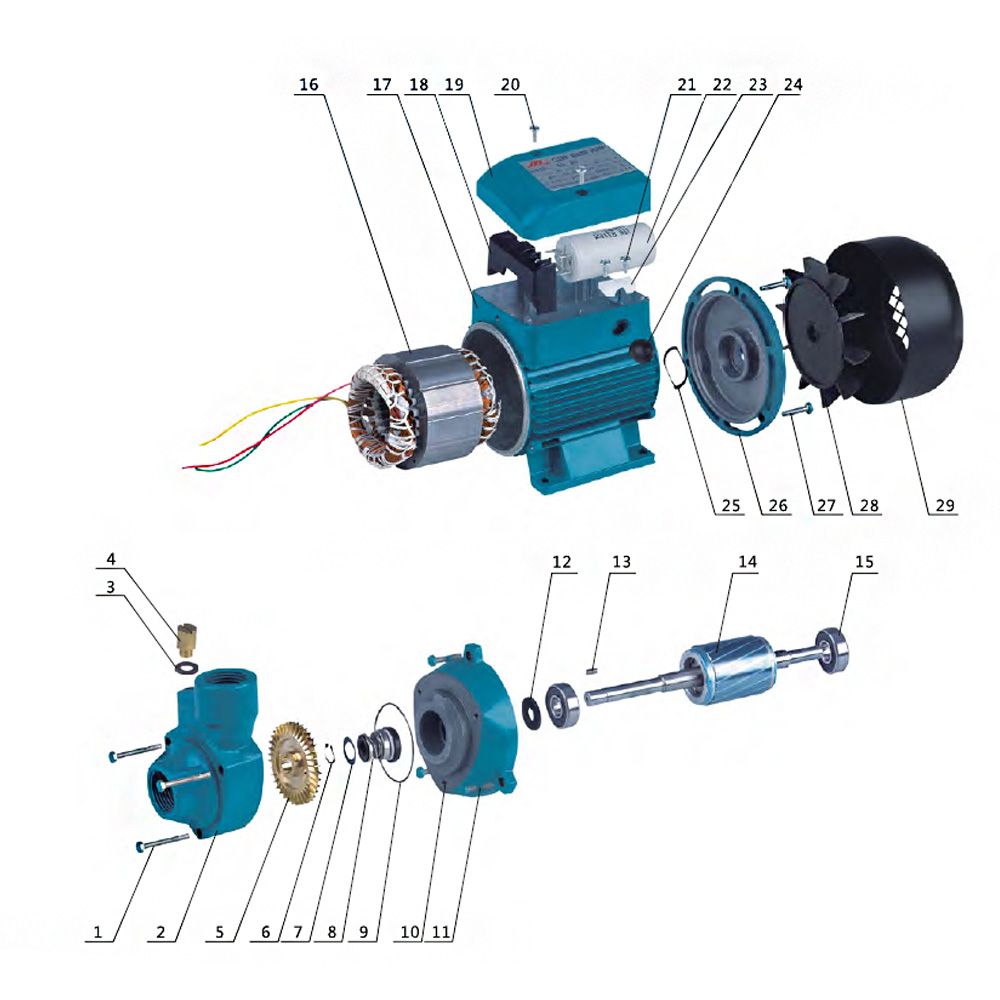

Structure Of Pump

Pump17 Pump20

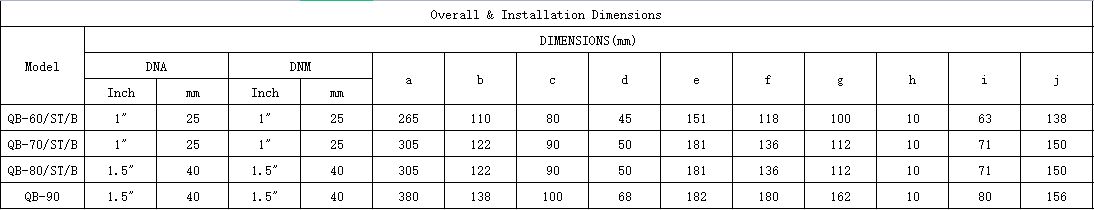

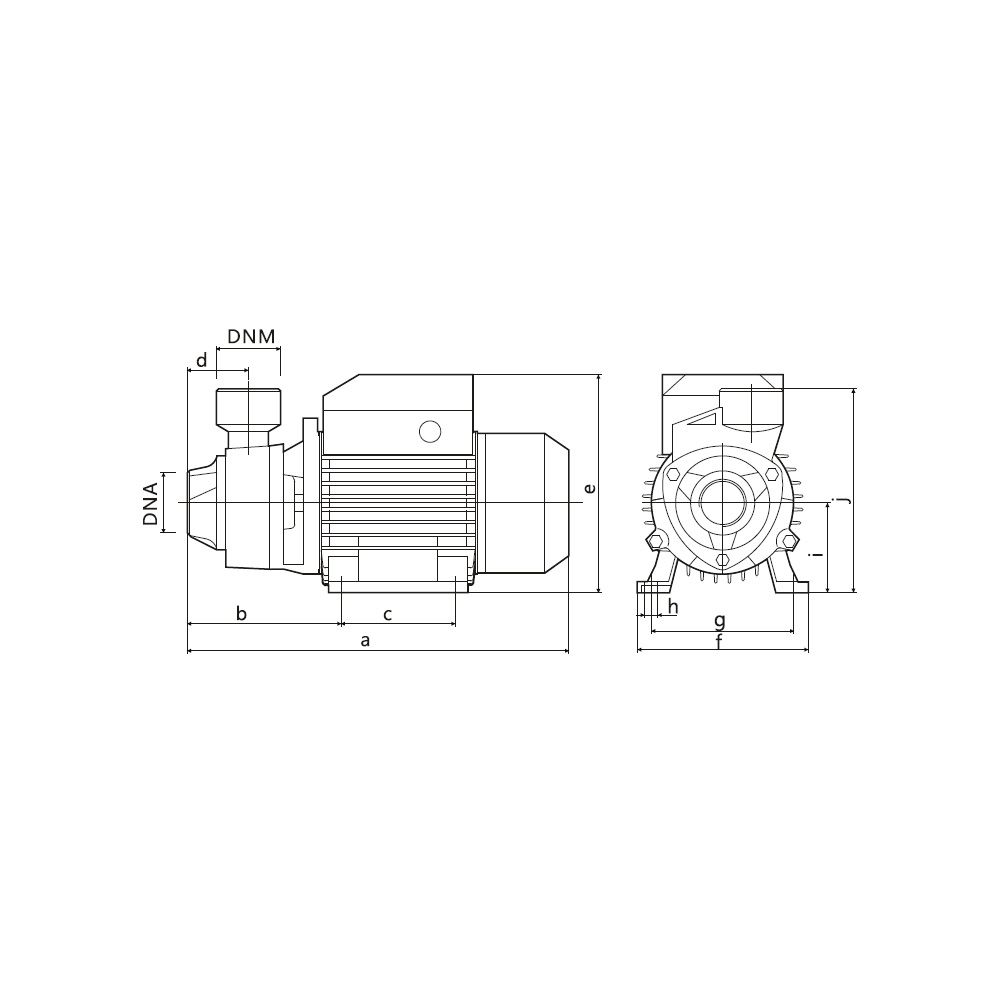

Size Details Of Pump

Pump18 Pump16

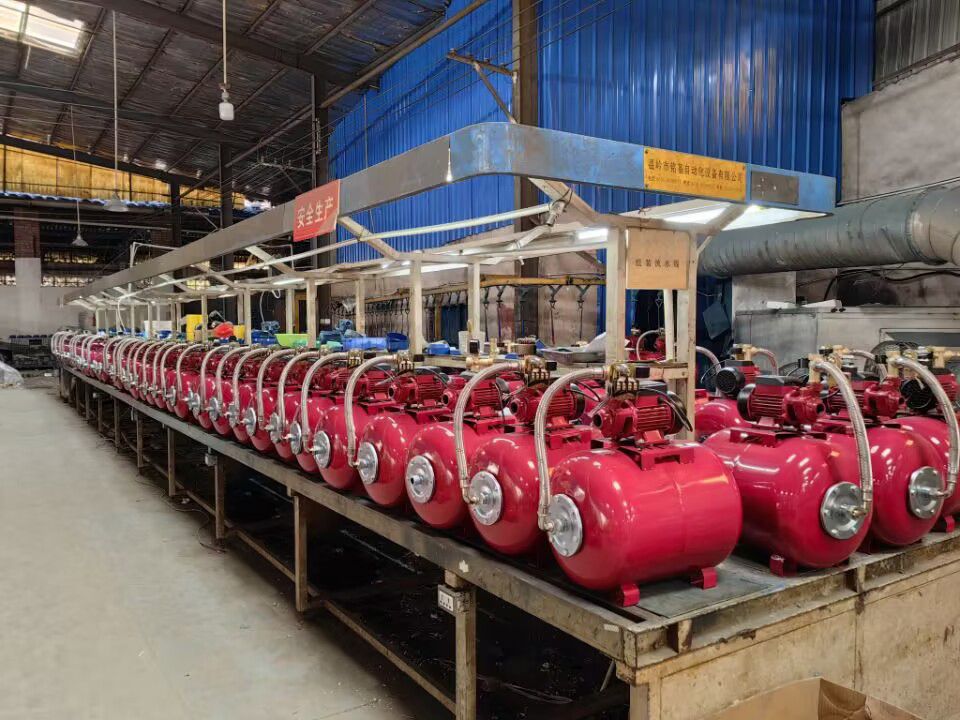

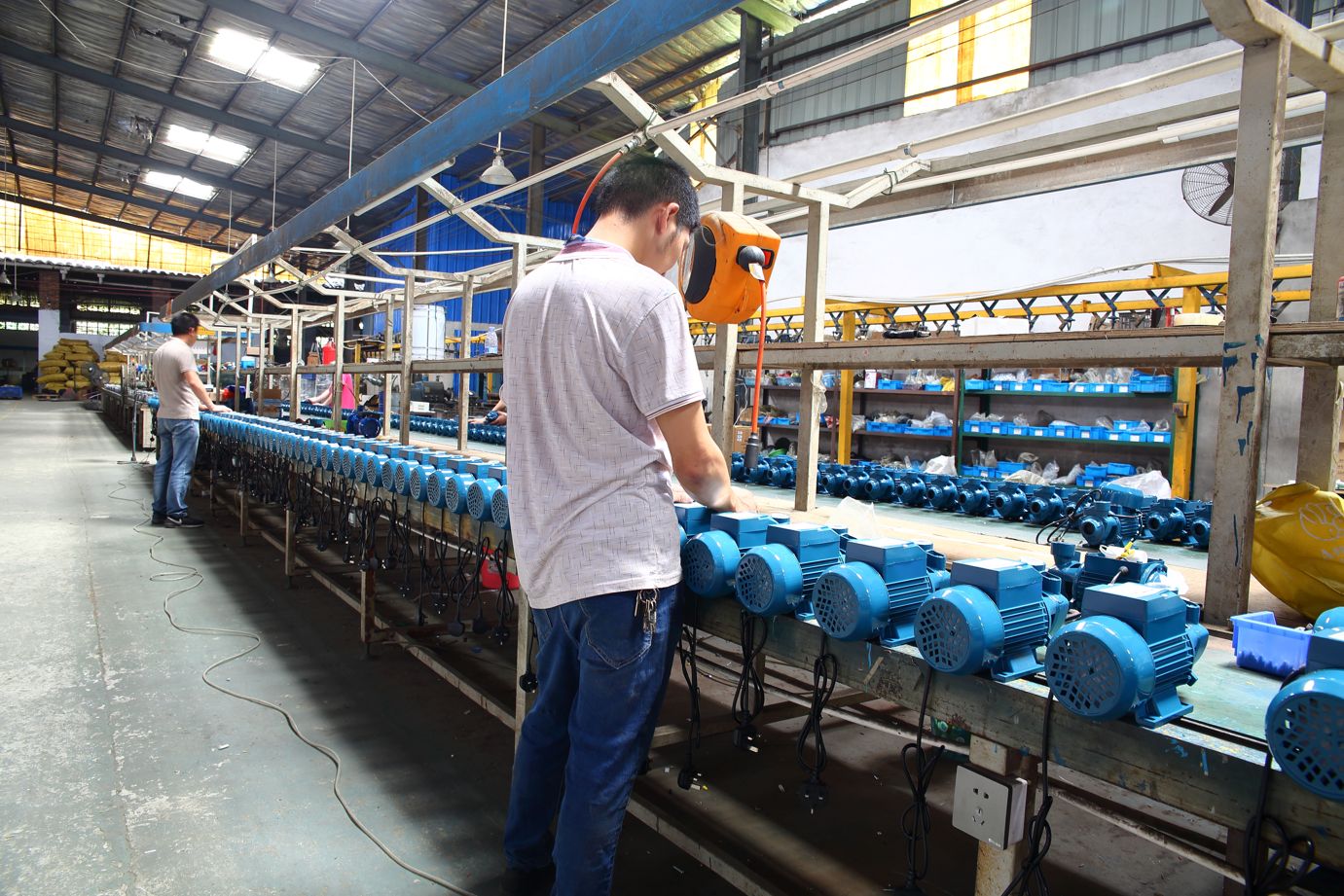

Pictures Of Workshop

Pump22
Pump15

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 40~120mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
