0.16HP -0.75HP DB Series Peripheral Water Pump

Short Description:

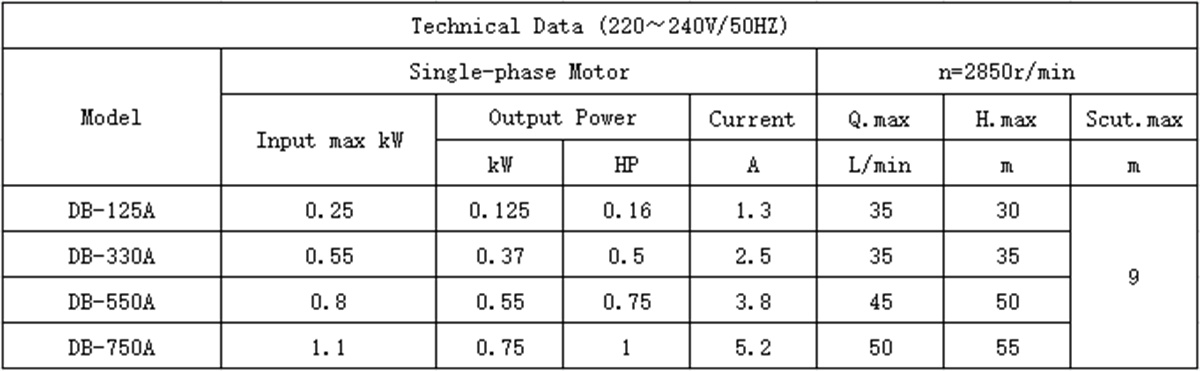

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
DB-125A 0.25 0.125 0.16 1.3 35 30 9
DB-330A 0.55 0.37 0.5 2.5 35 35
DB-550A 0.8 0.55 0.75 3.8 45 50
DB-750A 1.1 0.75 1 5.2 50 55




Product Detail

Product Tags

Applicable Scene

product-description1

PHERIPHERAL PUMP

DB series

Introducing the DB Series Water Pump - a must have product for all your water needs! Our state-of-the-art pumps are equipped with advanced technology to make water supply efficient, reliable and affordable. Say goodbye to the expensive and unreliable manual labor of fetching water from a well or the uncertainty of an unstable water supply.

DB water pumps are designed to supply water with reliable and high performance electric pumps. One of the key features of this great water pump is its ability to provide constant and steady water pressure and flow. So you can enjoy a steady, uninterrupted flow of water in your home, farm or industry.

The DB water pump is made of high-quality materials, which are durable and not easy to wear and tear in daily use. It is easy to install and maintain, making it an attractive option for customers looking for low cost and high performance pumps.

IDB pumps are designed to be energy efficient and environmentally friendly. It consumes only a tiny amount of electricity, saving money on your electricity bill, making it ideal for sustainable and eco-friendly homes. Its energy-efficient features are also perfect for people living in off-grid areas.

In conclusion, DB series pumps are an excellent product for homes, businesses and farms looking for a reliable, efficient and affordable water supply. Its outstanding features, energy efficiency and durability make it a worthwhile investment, guaranteeing you get your money's worth.

WORKING CONDITIONS

Working Situation
Max Suction: 8M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty

PUMP

Pump Body : Cast Iron
Impeller: Brass
Front Cover: Cast Iron
Mechanical Seal: Carton / Ceramic / Stainless Steel

MOTOR

Wire: Copper Wire / Aluminum Wire
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

PRODUCT SPECIFICATIONS

REFERENCE PICTURES

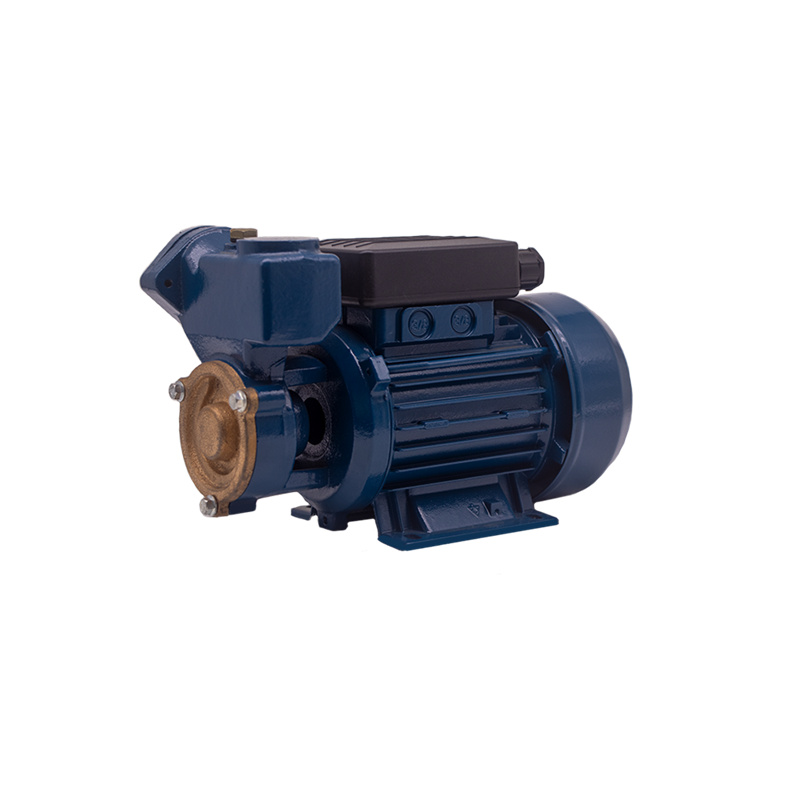

0.16HP 0.125KW DB-125A Peripheral Water Pump08

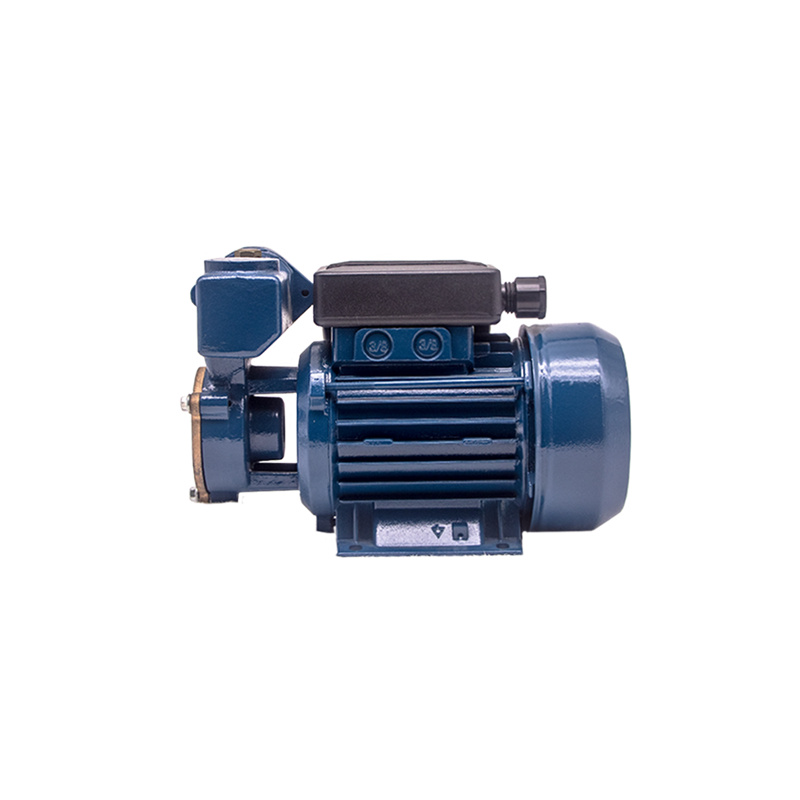

0.16HP 0.125KW DB-125A Peripheral Water Pump01

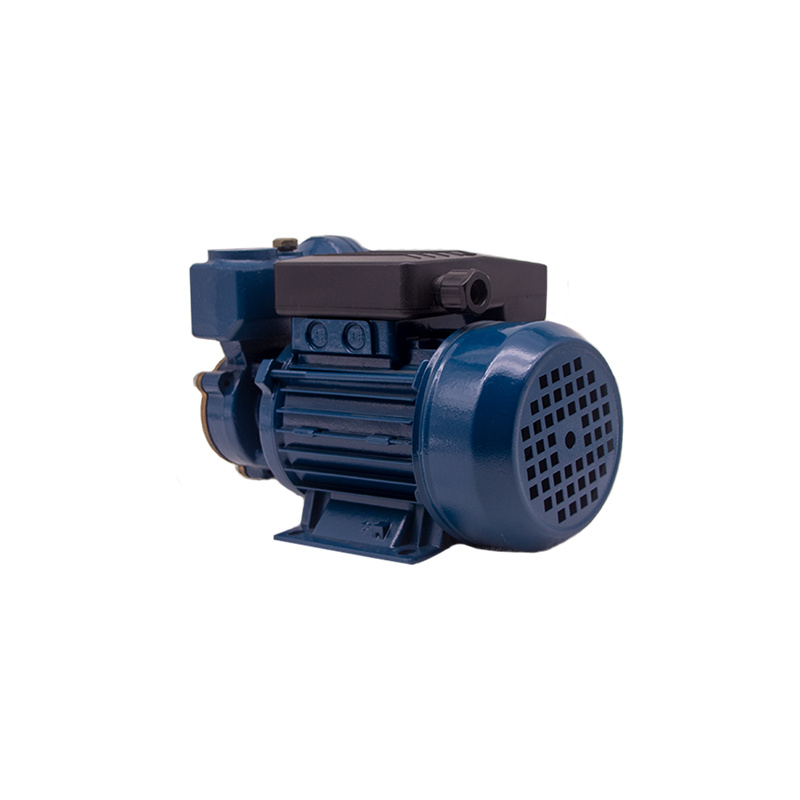

0.16HP 0.125KW DB-125A Peripheral Water Pump02

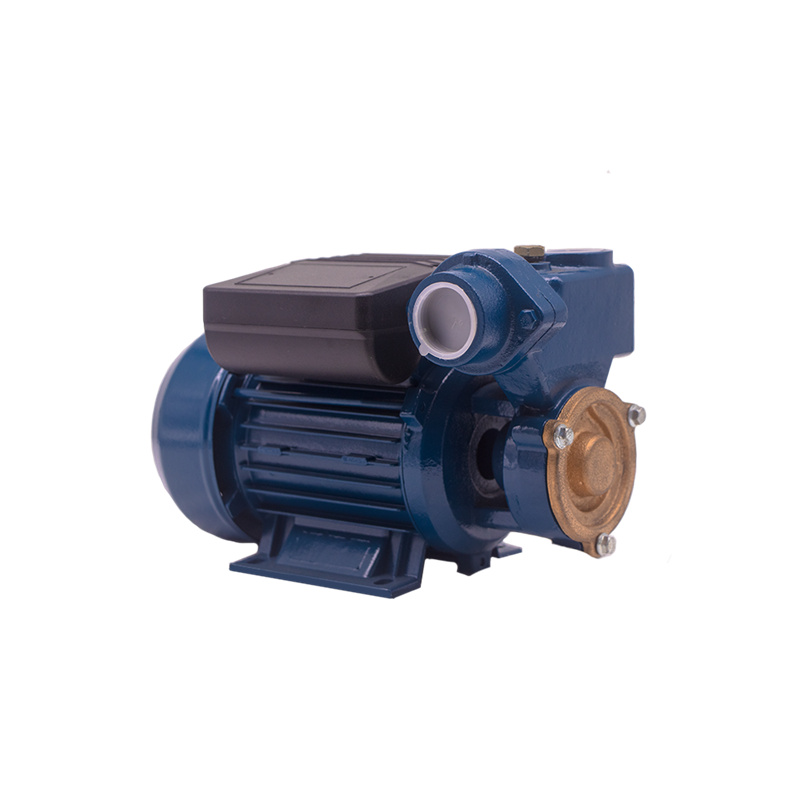

0.16HP 0.125KW DB-125A Peripheral Water Pump06

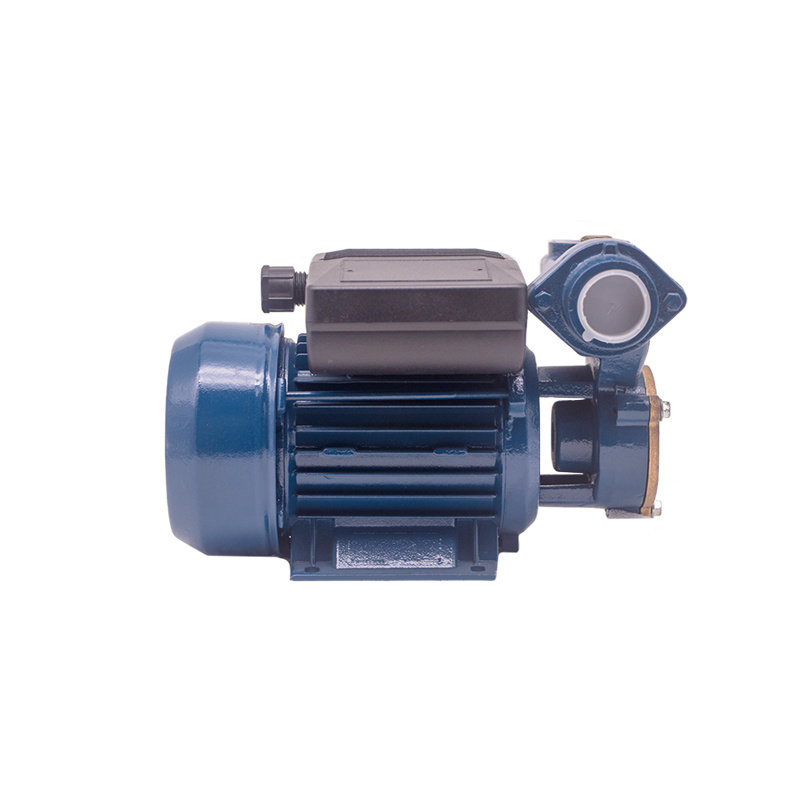

0.16HP 0.125KW DB-125A Peripheral Water Pump05

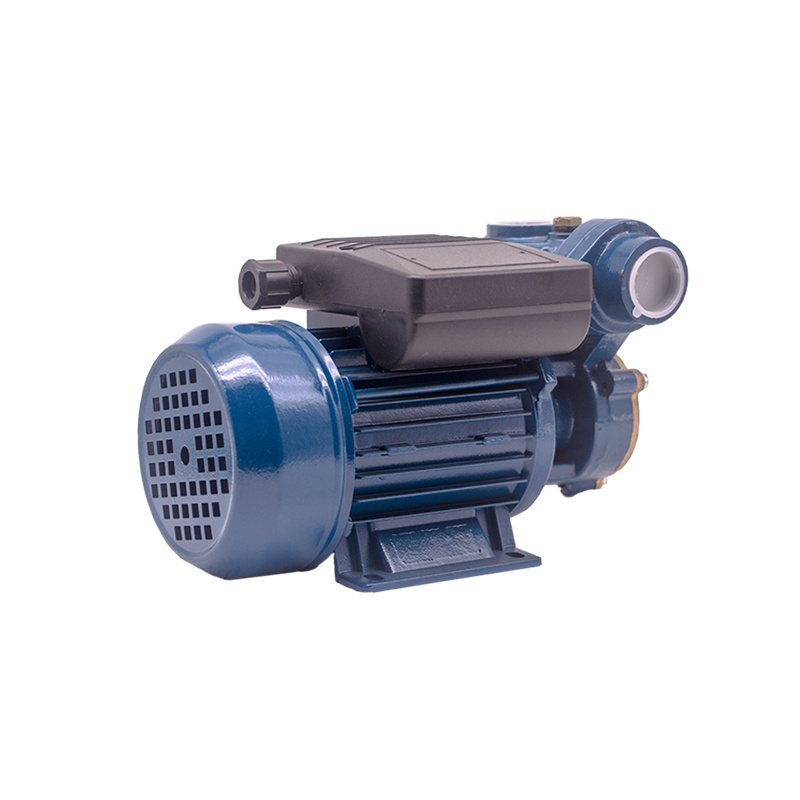

0.16HP 0.125KW DB-125A Peripheral Water Pump04

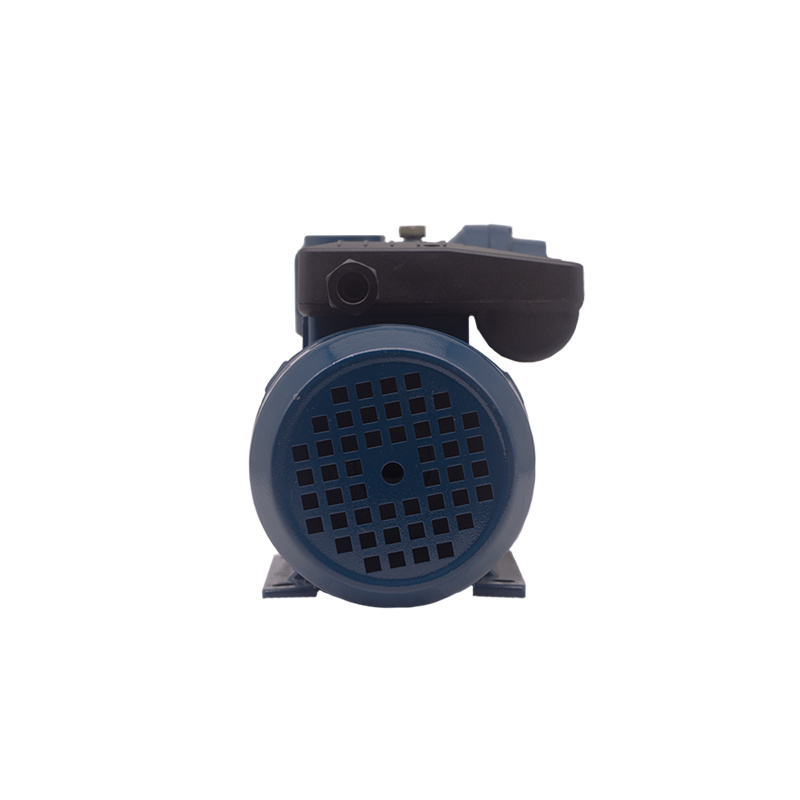

0.16HP 0.125KW DB-125A Peripheral Water Pump03

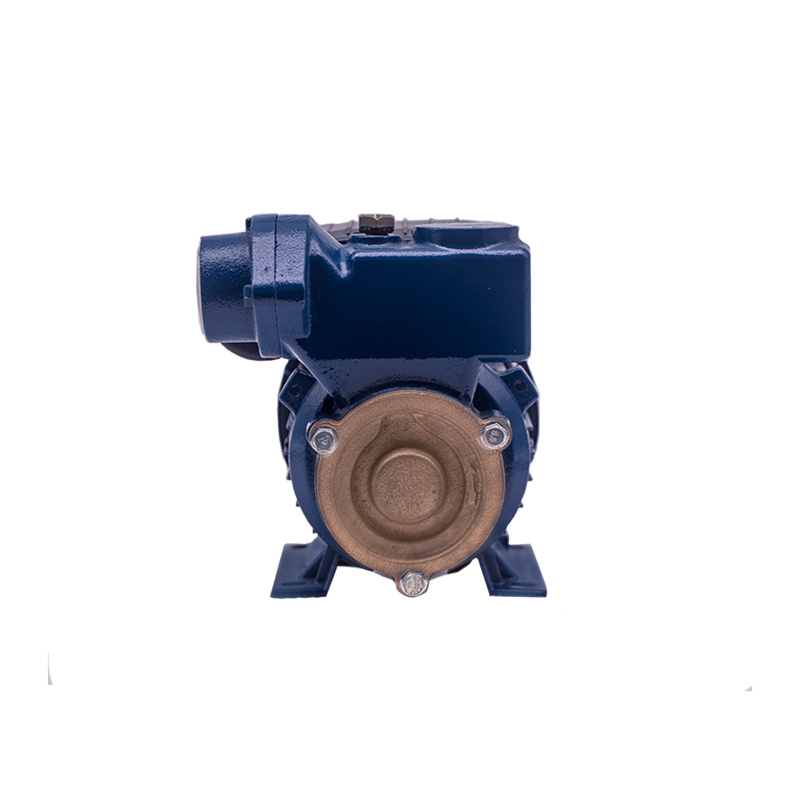

0.16HP 0.125KW DB-125A Peripheral Water Pump07

TECHNICAL DATA

product description02

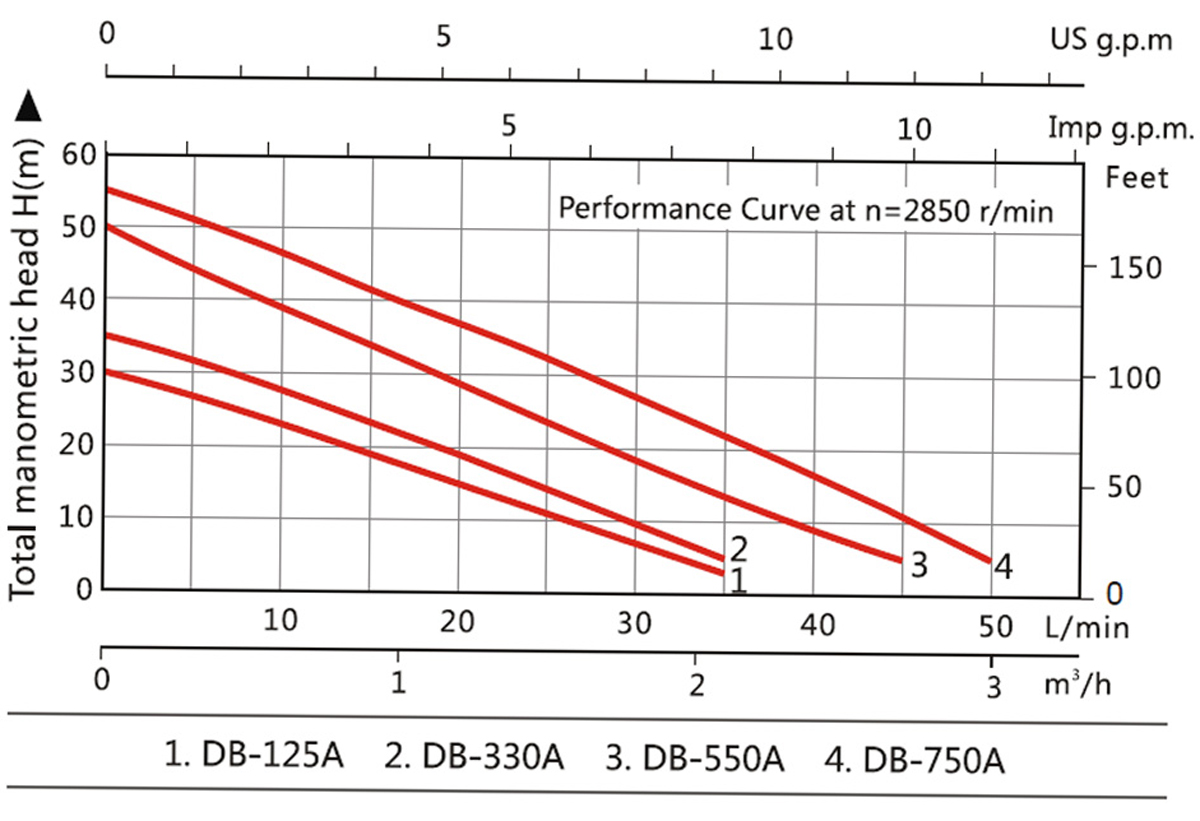

PERFORMANCE CHART AT N=2850min

product-description3

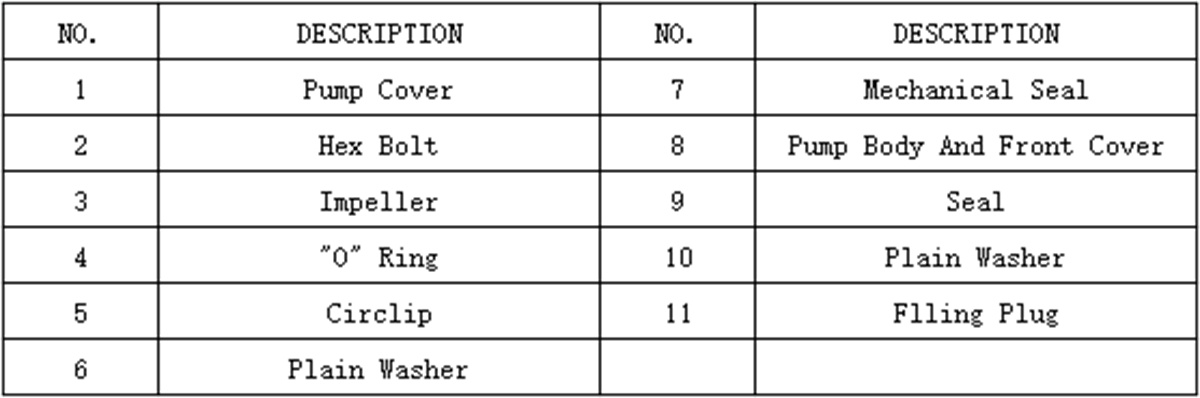

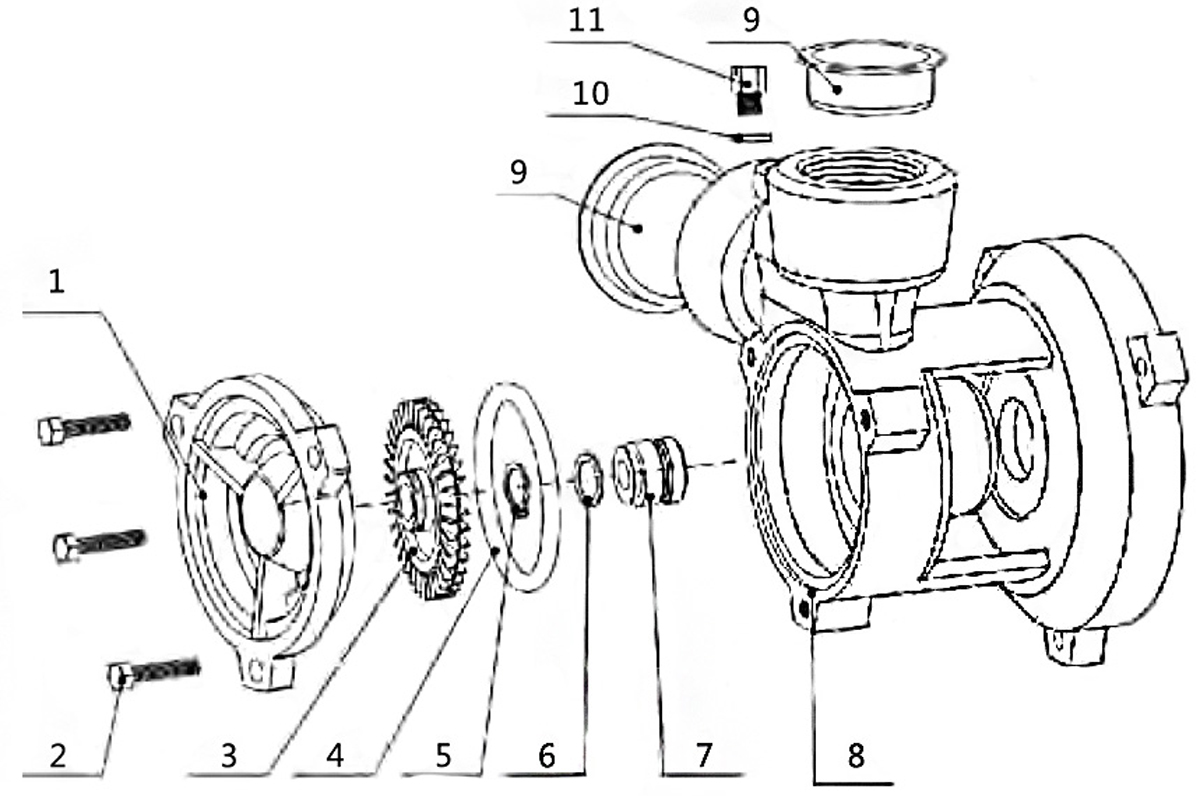

STRUCTURE OF PUMP

product-description2

product description01

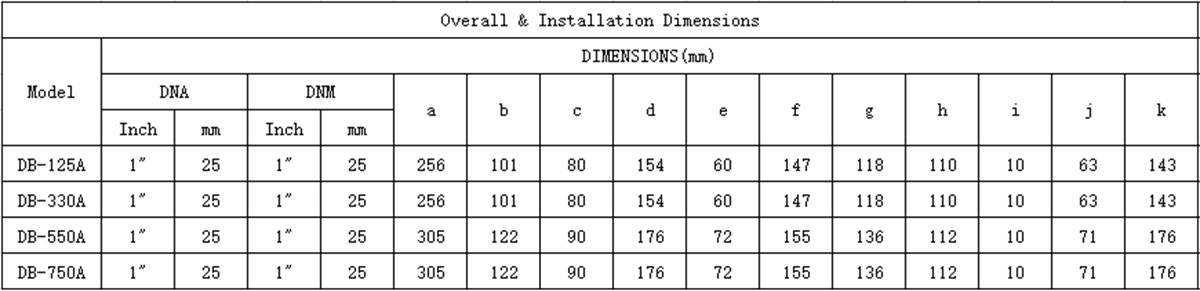

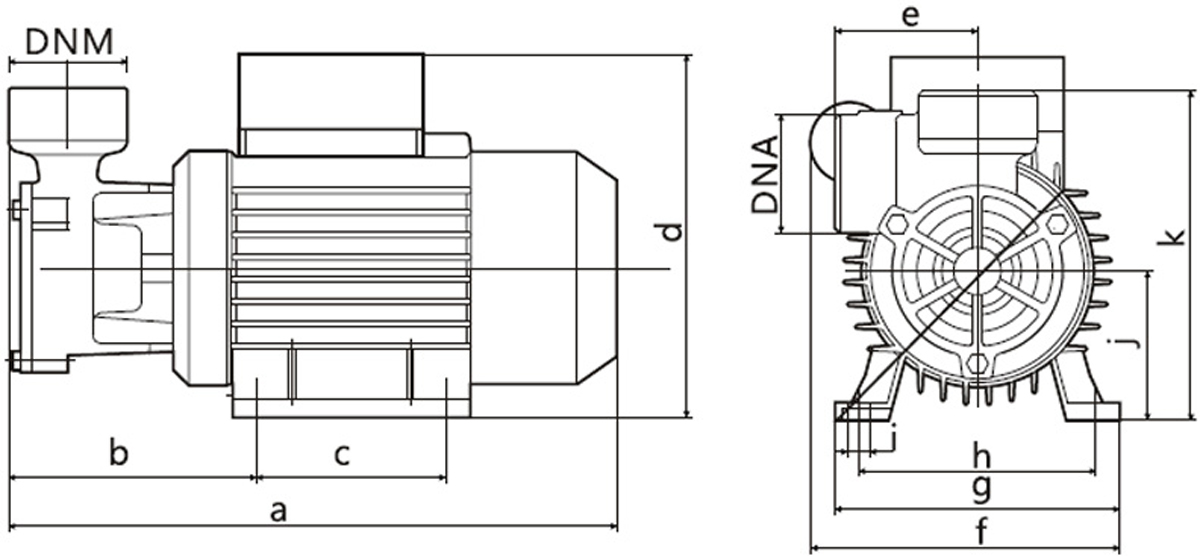

SIZE DETAILS OF PUMP

product-description1 product description03

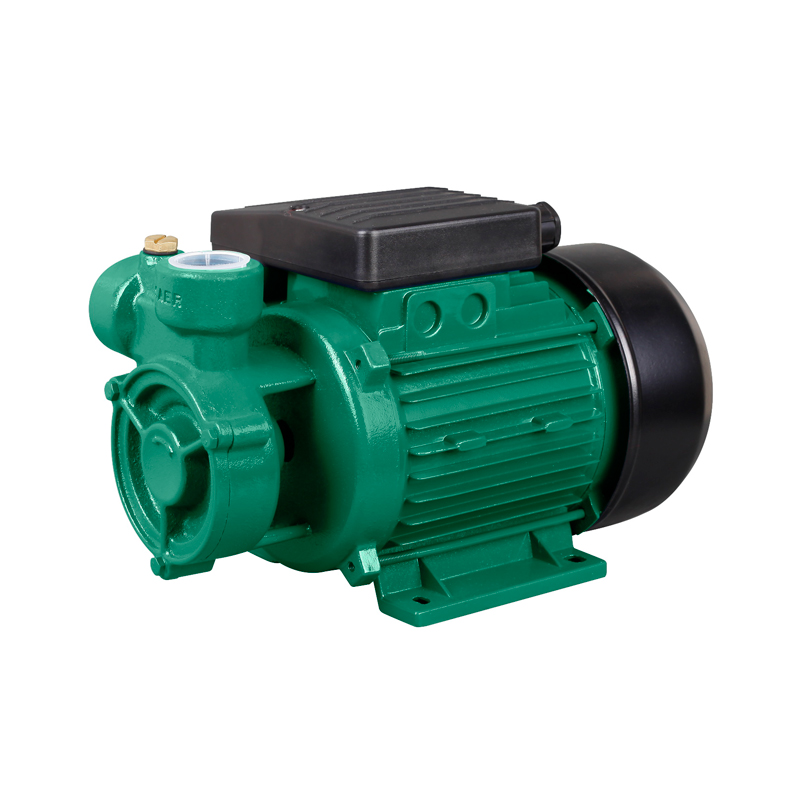

REFERENCE COLORS

product-description1

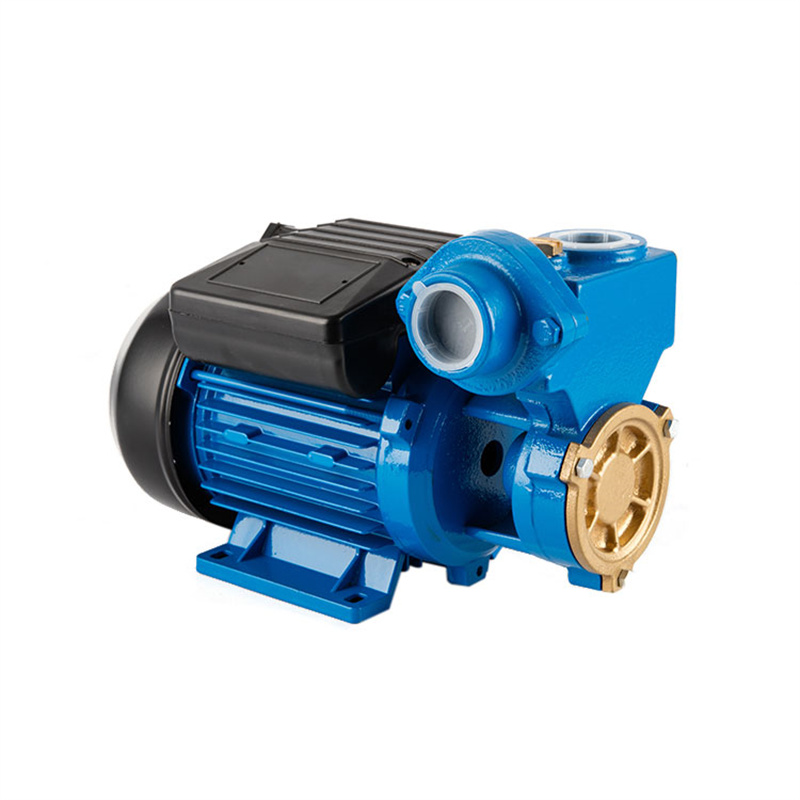

0.16HP 0.125KW DB-125A Peripheral Water Pump09

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 20~40mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
