1/2HP / 0.37KW KF/0 Peripheral Water Pump

Short Description:

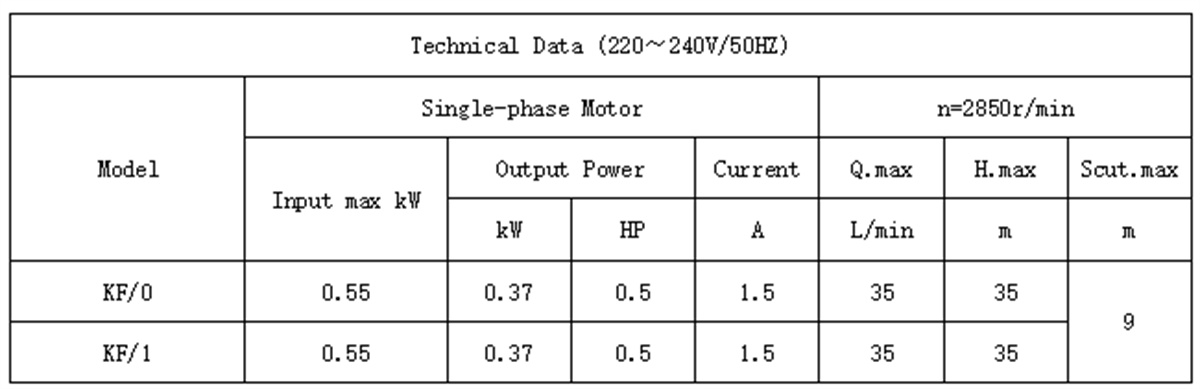

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
KF/0 0.55 0.37 0.5 1.5 35 35 9
KF/1 0.55 0.37 0.5 1.5 35 35

Product Detail

Product Tags

Applicable Scene



KF series

Introducing the 0.5HP KF Series Peripheral Water Pump, a premium quality pump designed to provide exceptional performance and reliable water supply. This pump is ideal for home use as it is designed to handle a wide variety of water supply applications including pressurized water, irrigation and small industrial water supplies.

The pump is made of high-quality materials to ensure durability and longevity. The pump body is made of cast iron, known for its strength, toughness and wear resistance. The impeller and shaft are also made of high quality materials to provide maximum efficiency and high running capacity.

The pump is also equipped with a thermal overload protector to ensure that the motor is not damaged in case of overload or voltage fluctuations.

0.5HP KF series external water pump is user-friendly, compact and light in design, easy to install and maintain.

In summary, the 0.5HP KF Series Peripheral Water Pump is the perfect choice for anyone looking for a reliable, efficient water supply solution. It is designed to meet the water supply needs of residential and small industrial applications and is built to last. Purchase a 0.5HP KF Series Peripheral Water Pump today and enjoy high performance water supply for years to come.

Working Situation

Max Suction: 8M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty


Pump Body : Cast Iron
Impeller: Brass
Front Cover: Cast Iron
Mechanical Seal: Carton / Ceramic / Stainless Steel


Wire: Copper Wire / Aluminum Wire
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

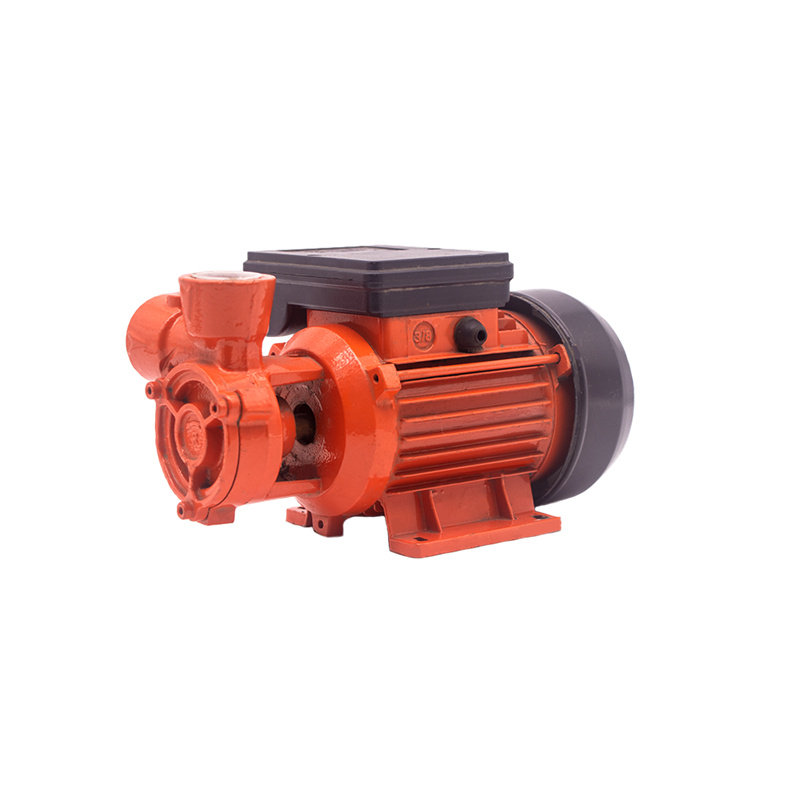

1 2HP 0.37KW KF 0 Peripheral Water Pump08

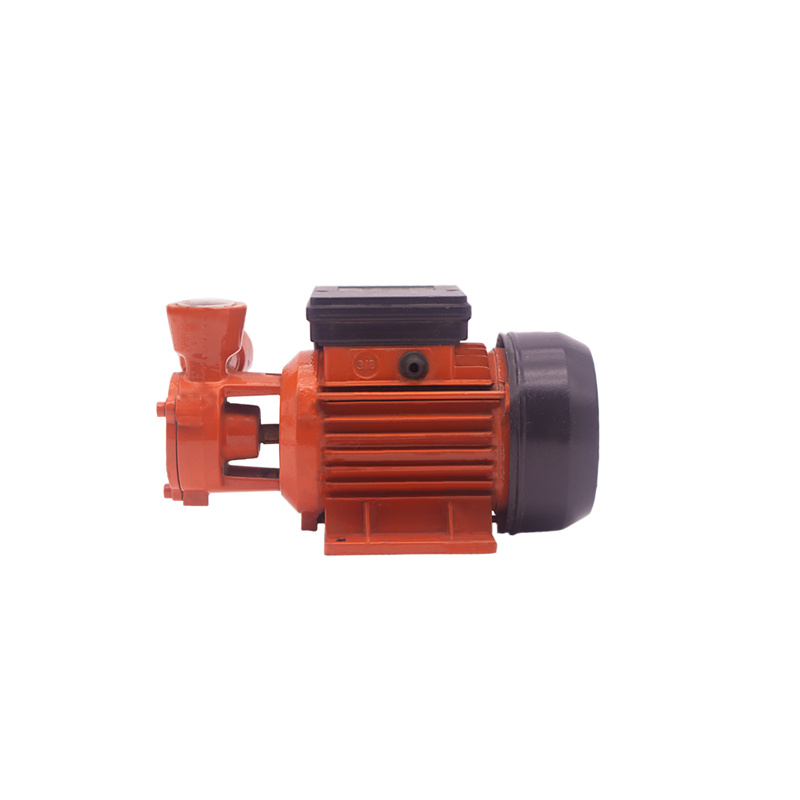

1 2HP 0.37KW KF 0 Peripheral Water Pump01

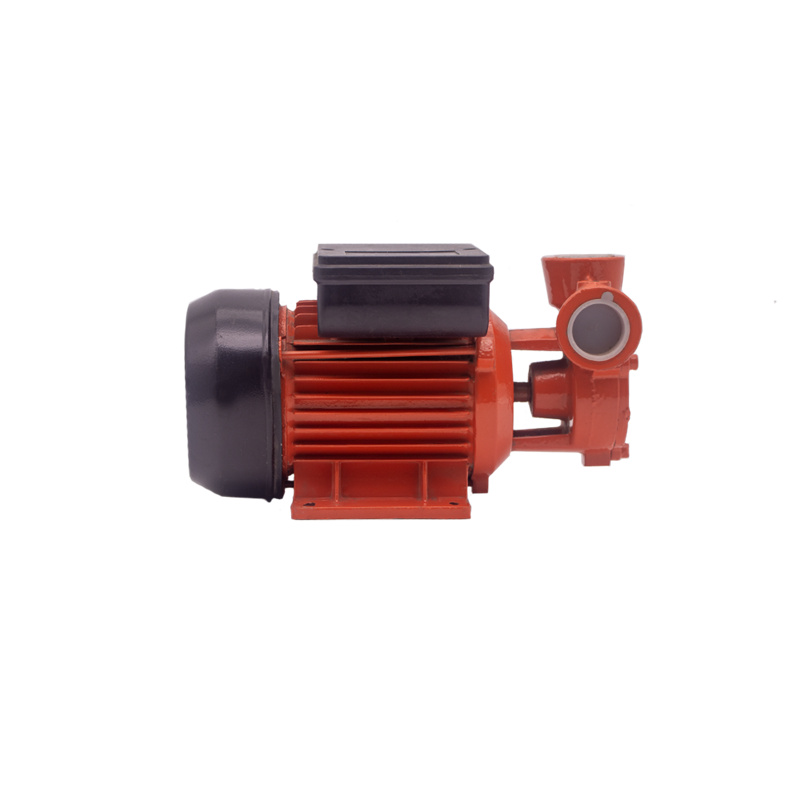

1 2HP 0.37KW KF 0 Peripheral Water Pump05

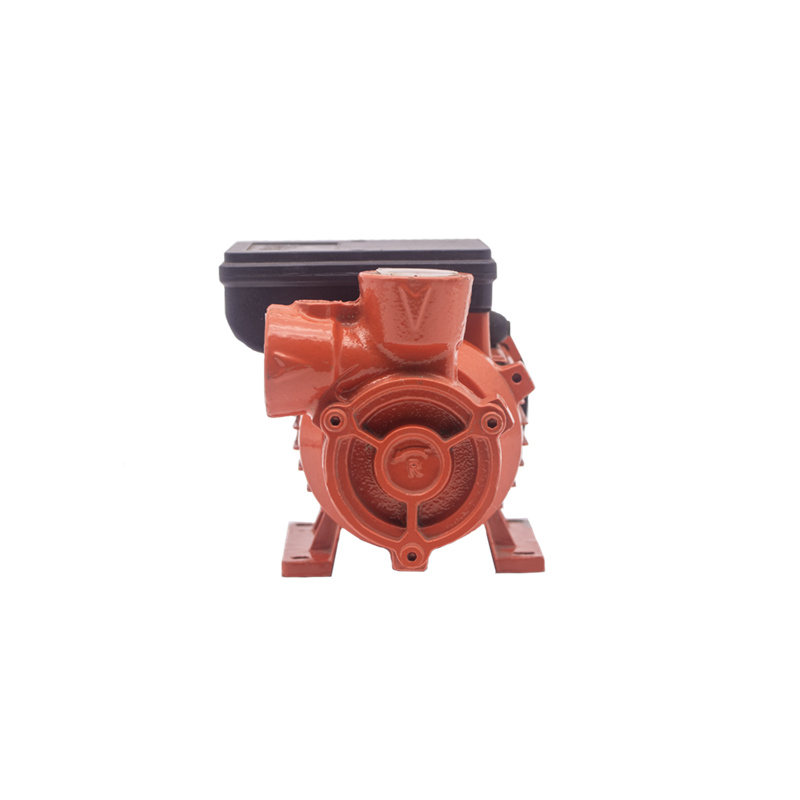

1 2HP 0.37KW KF 0 Peripheral Water Pump07

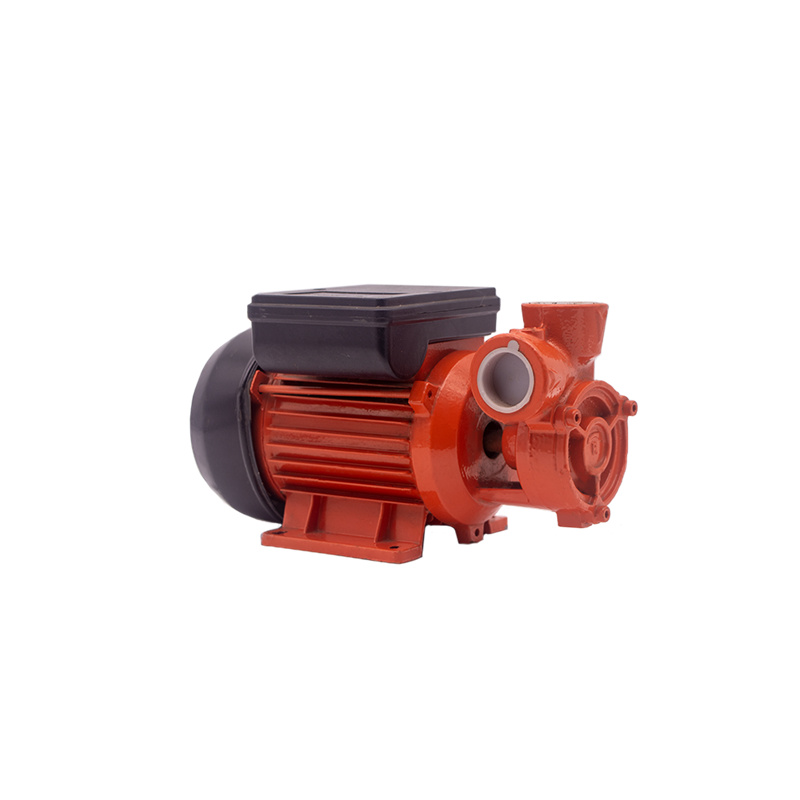

1 2HP 0.37KW KF 0 Peripheral Water Pump06

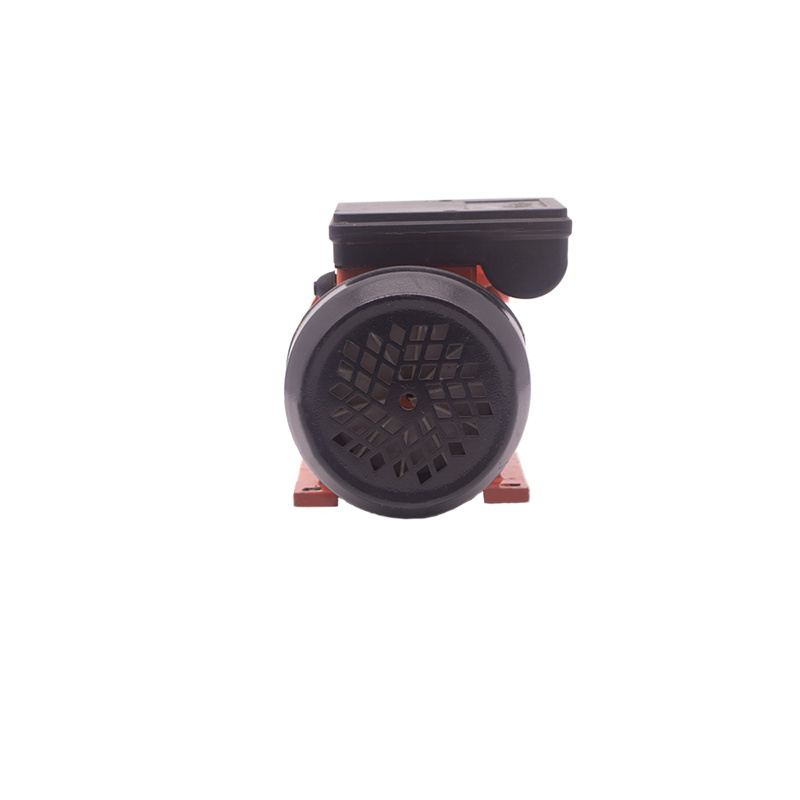

1 2HP 0.37KW KF 0 Peripheral Water Pump03


product description01


product description04


product-description1 product description03


product-description2 product description02

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 30~60mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
