1.1HP / 0.75KW IDB50 Peripheral Water Pump
Applicable Scene
PHERIPHERAL PUMP
IDB series
IDB series are suitable for pumping clean water. They are particularly suitable for domestic applications. Such as water supply from wells and pools, pressure boosting, gardening sprinkling, washing booths.
Working Situation
Max Suction: 8M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous Duty
CONDITIONS PUMP
Pump Body: Cast Iron
Impeller: Brass
Front Cover: Cast Iron
Mechanical Seal: Carton / Ceramic / Stainless Steel
MOTOR
Wire: Copper Wire / Aluminum Wire
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
PRODUCT SPECIFICATIONS

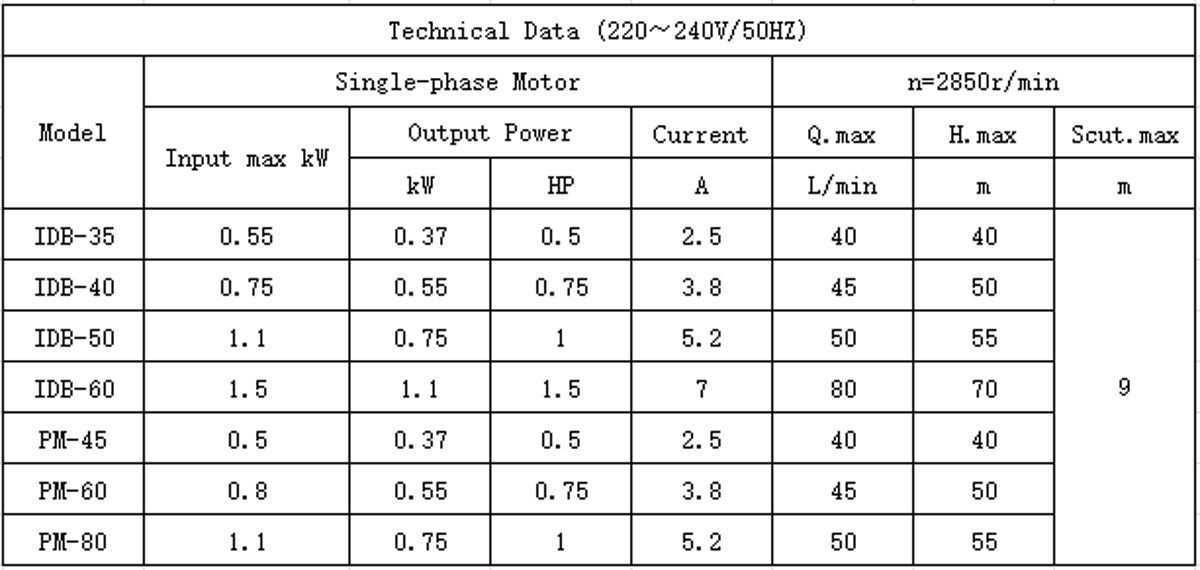

TECHNICAL DATA

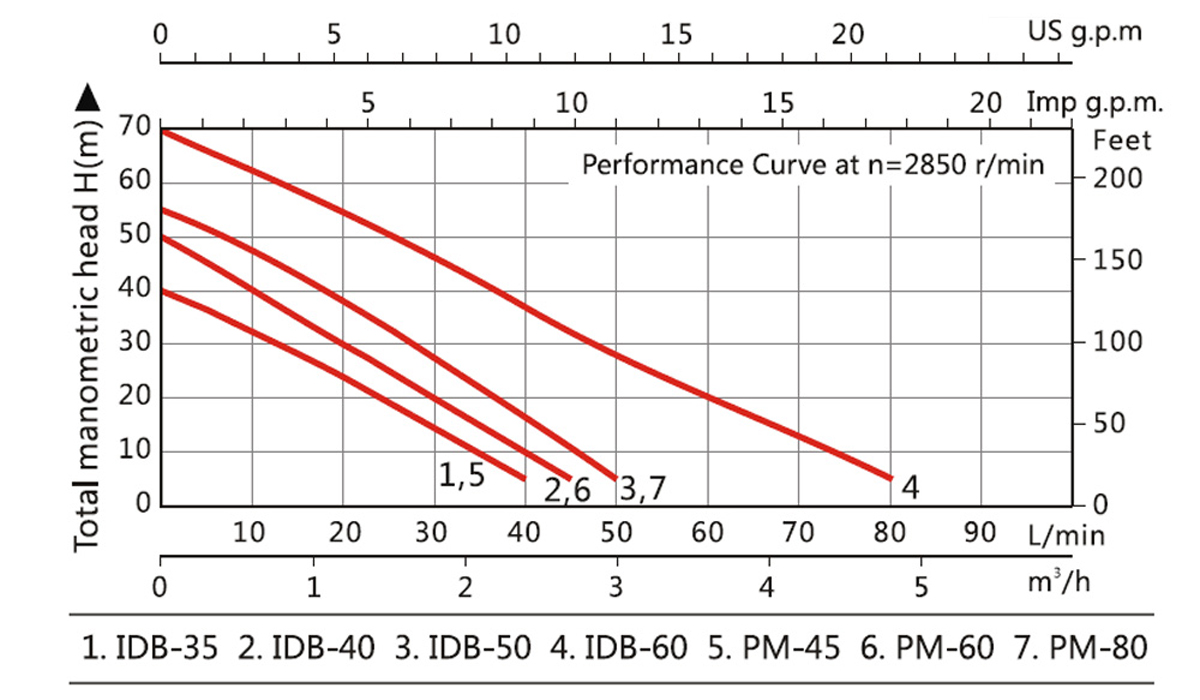

PERFORMANCE CHART AT N=2850min

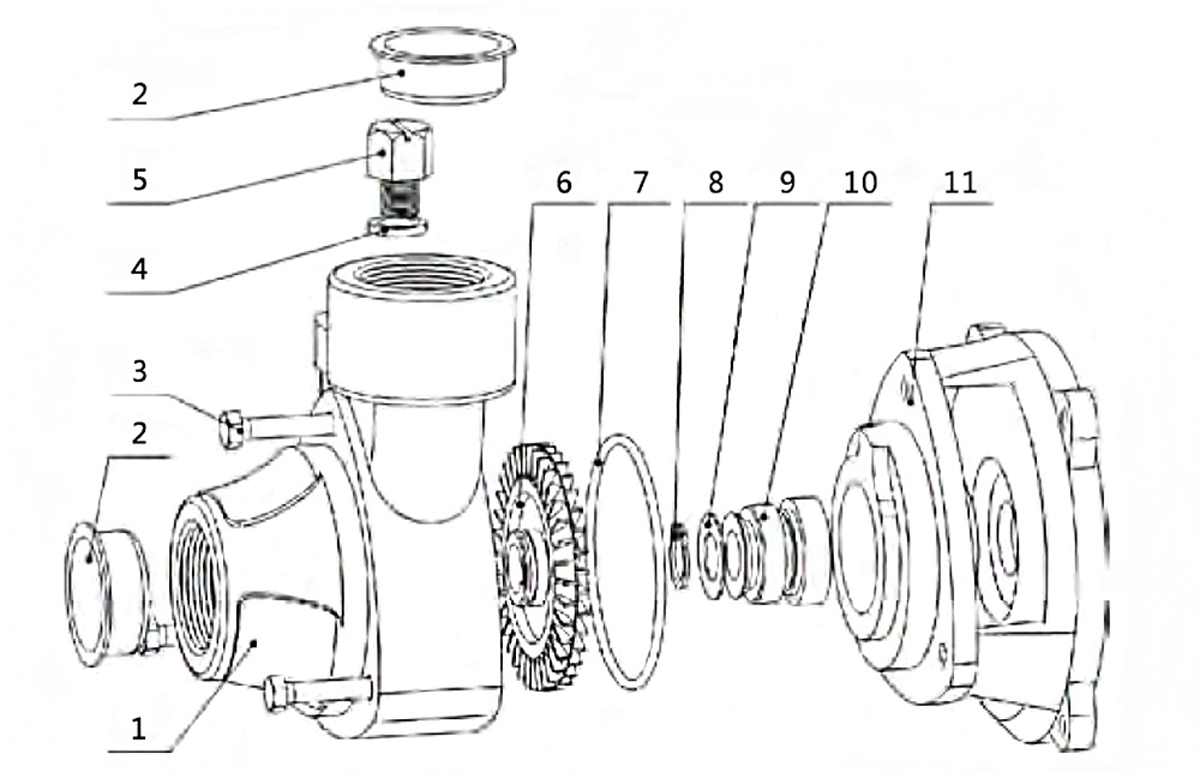

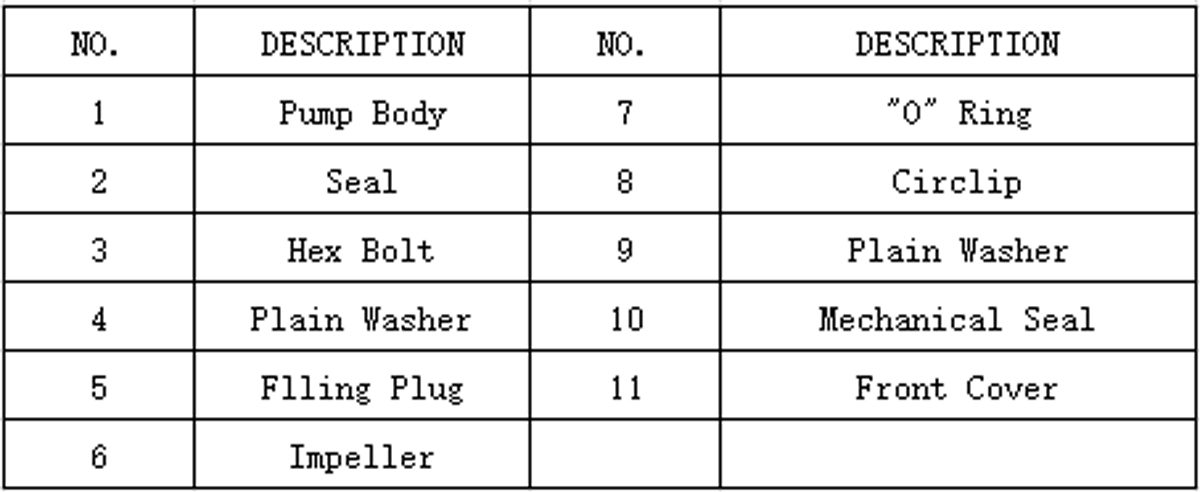

STRUCTURE

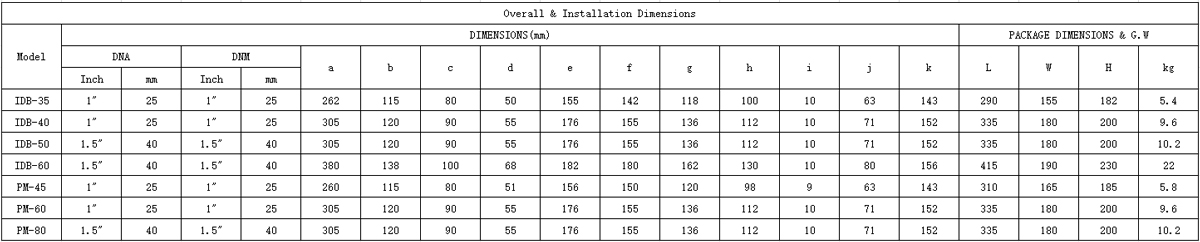

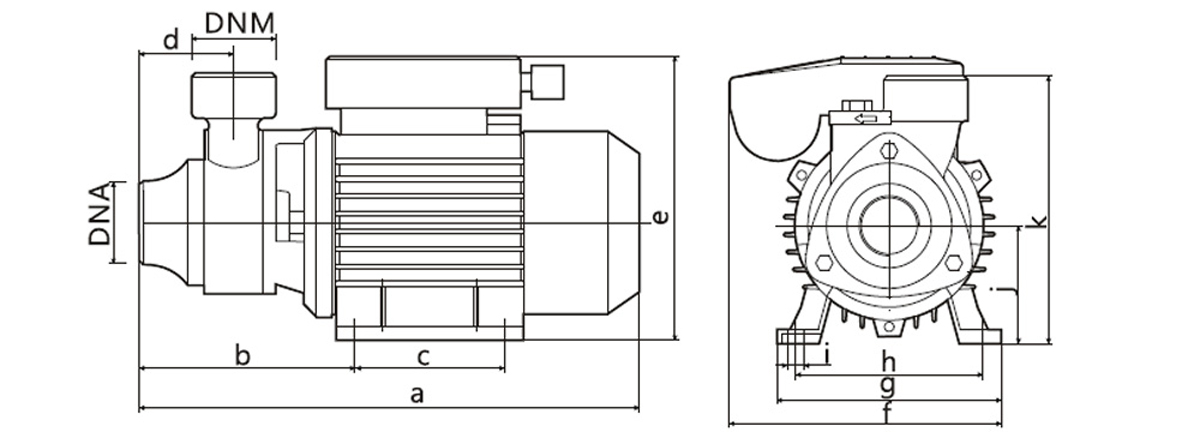

SIZE DETAILS
Custom service
| Color | Blue, green, orange, yellow, or Pantone color card |
| Carton | Brown corrugated box, or color box(MOQ=500PCS) |
| Logo | OEM(YOUR BRAND with authority document), or our brand |
| Coil/Rotor length | length from 50~80mm, you could select them according to your request. |
| Thermal Protector | Optional part |
| Terminal Box | different types for your selection |
