0.5HP-1.5KW IDB Series Peripheral Water Pump

Short Description:


Product Detail

Product Tags

Applicable Scene

product-description1

PHERIPHERAL PUMP

IDB series
IDB series are suitable for pumping clean water. They are particularly suitable for domestic applications. Such as water supply from wells and pools, pressure boosting, gardening sprinkling, washing booths.

Working Situation
Max Suction: 8M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous Duty

CONDITIONS PUMP

Pump Body: Cast Iron
Impeller: Brass
Front Cover: Cast Iron
Mechanical Seal: Carton / Ceramic / Stainless Steel

MOTOR

Wire: Copper Wire / Aluminum Wire
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

PRODUCT SPECIFICATIONS

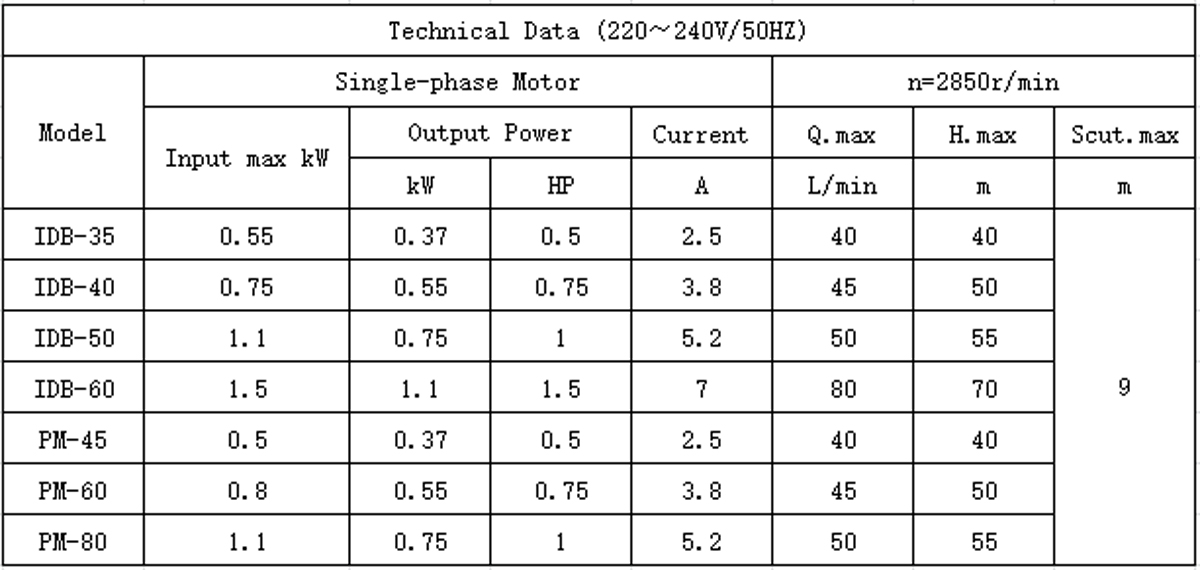

TECHNICAL DATA

product-description1

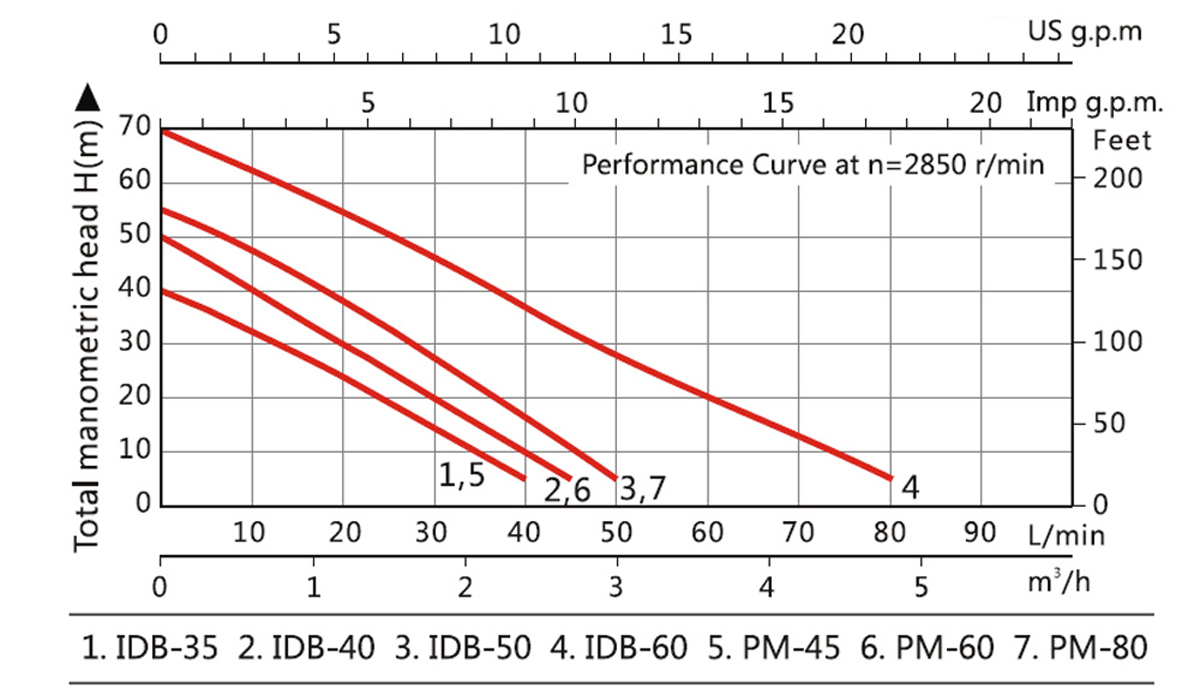

PERFORMANCE CHART AT N=2850min

product-description7

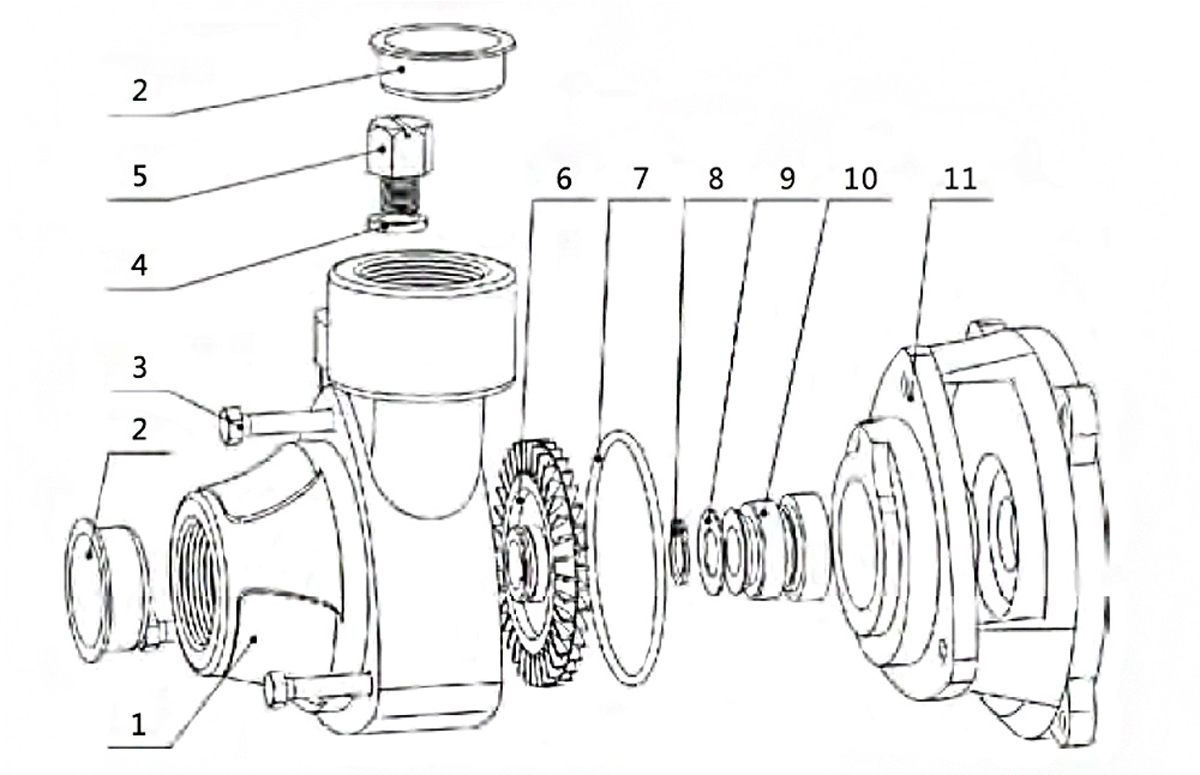

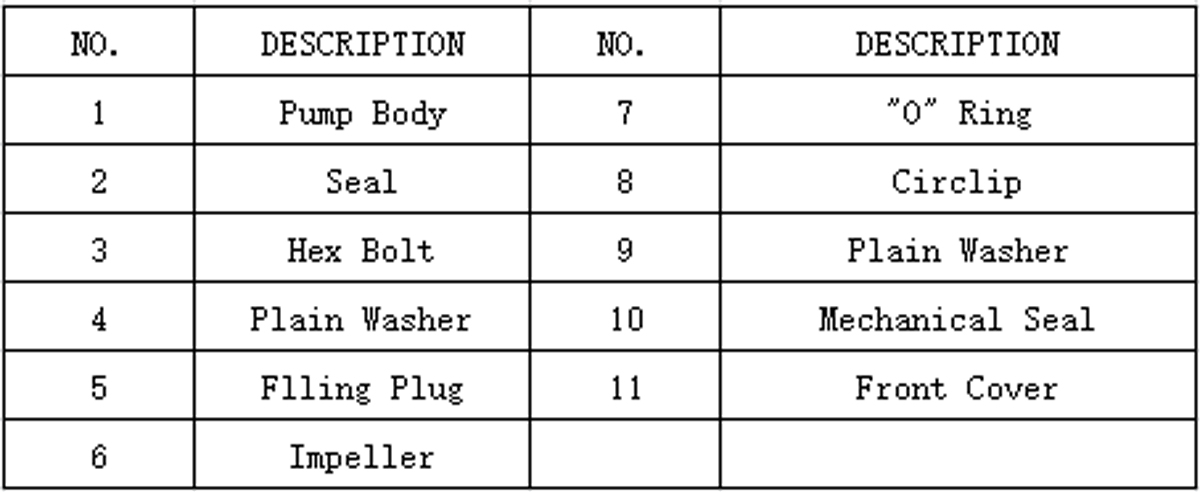

STRUCTURE

product-description6 product-description2

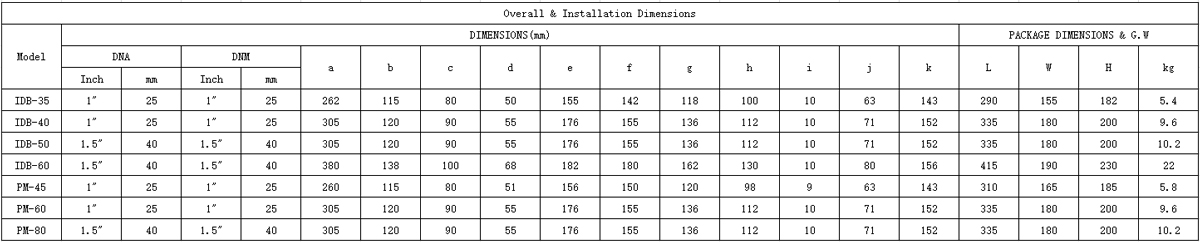

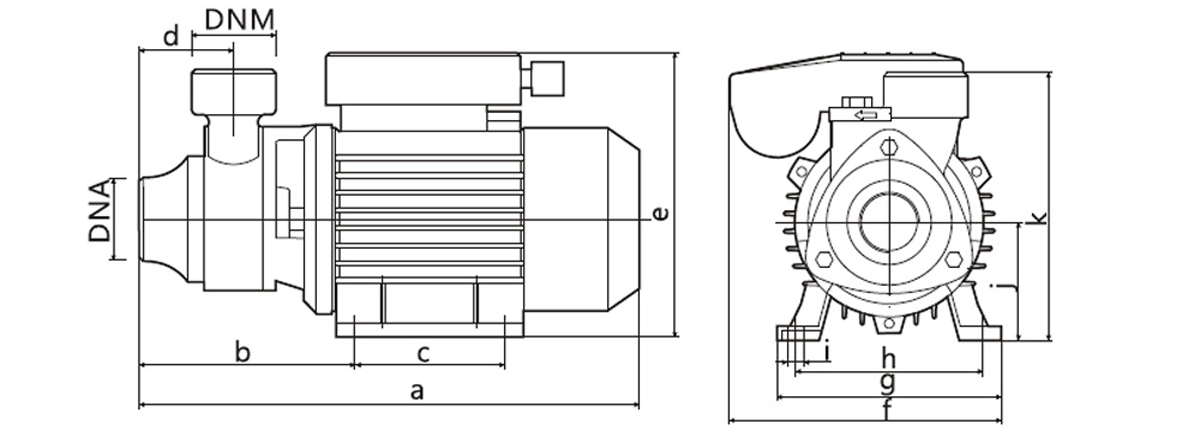

SIZE DETAILS

product-description3 product-description4

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 60~90mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
