0.5HP -2HP DP Series Self-Priming Water Pump

Applicable Scene

Self-priming DP series Water Pump

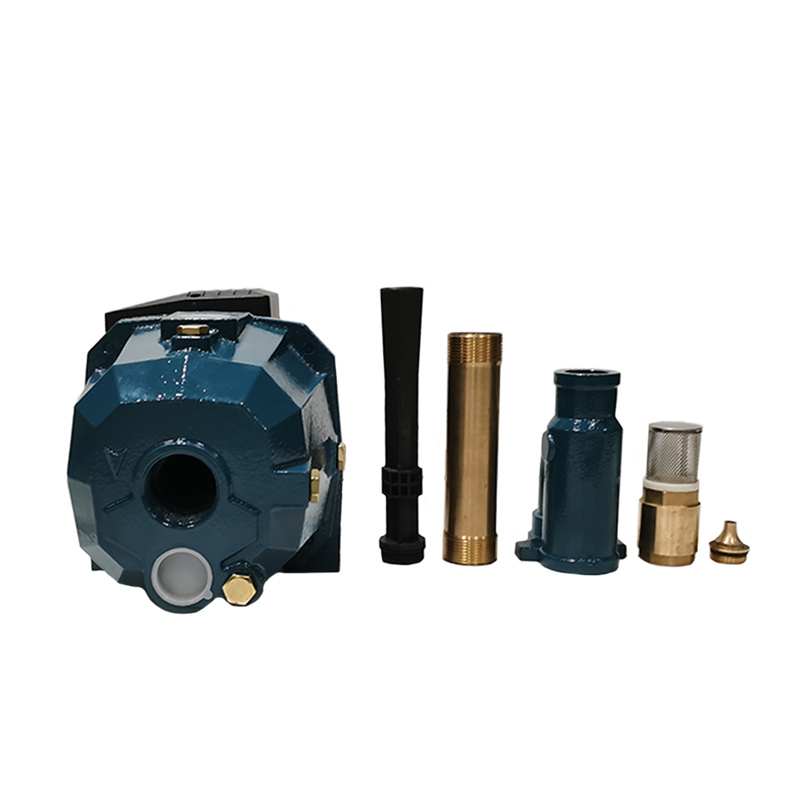

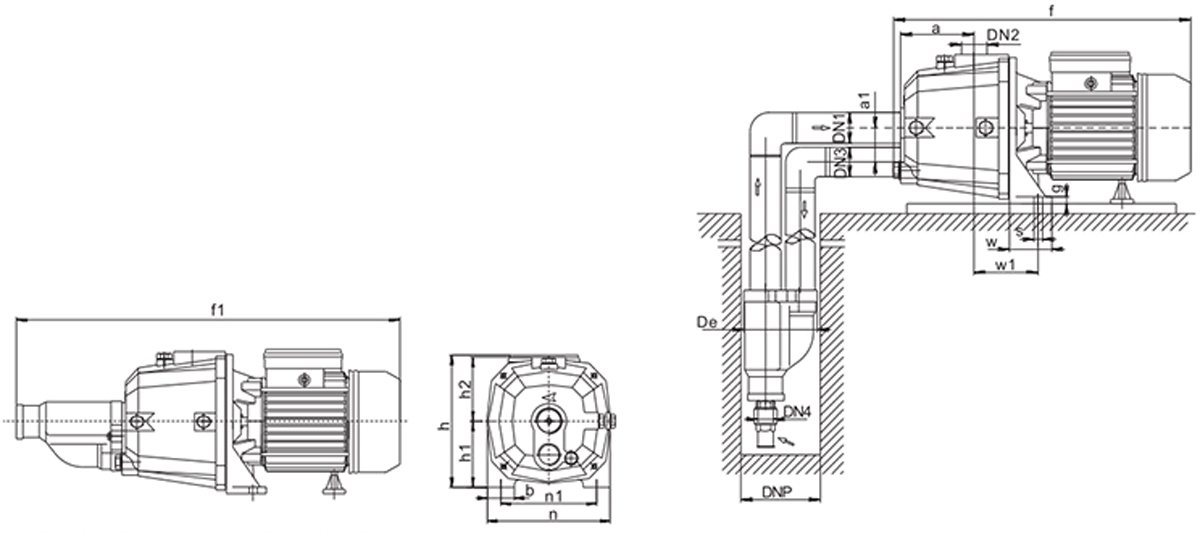

DP Self-priming deep-Well pumps consist of an ejector unit and a centrifugal pump The ejector unit can be put in a 4" diameter well. These pumps are suitable to convey clean water or non-aggressive chemical fluids. They are suitable to pump water from deep well and supply water automatically by pressure tank and pressure control. It is always advisable to install a foot valve with a strainer on the bottom of inlet pipe.

WORKING CONDITIONS

Max Suction: 8M
Max Liquid Temperature: 50○C
Max Ambient Temperature: +45○C

Operating Conditions

▶Liquid temperature up to 60℃
▶Ambient temperature up to 40℃
▶Total suction lift up to 9m
▶Continuous duty

PUMP

▶Pump Body: Cast Iron
▶Impeller: Brass/P.P.O
▶Mechanical Seal: Carbon/Ceramic/Stainless Steel

MOTOR

▶Single Phase
▶Heavy Duty Continuous Work
▶Motor Housing: Aluminum
▶Shaft:Carbon Steel/Stainless Steel
▶Insulation: Class B/Class F
▶Protection: IP44/IP54
▶Cooling: External Ventilation Motor Housing: Aluminum

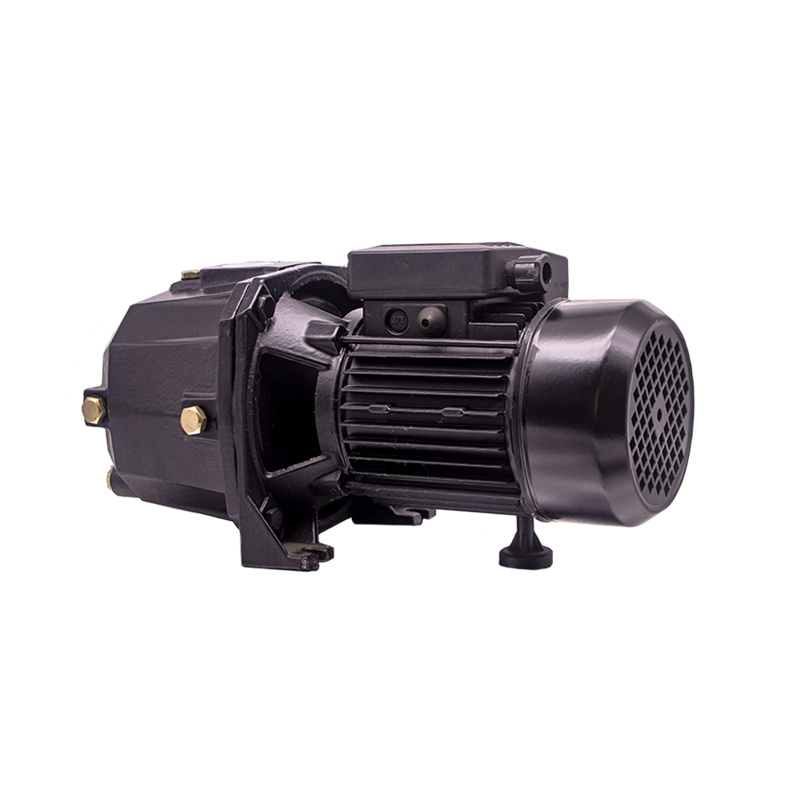

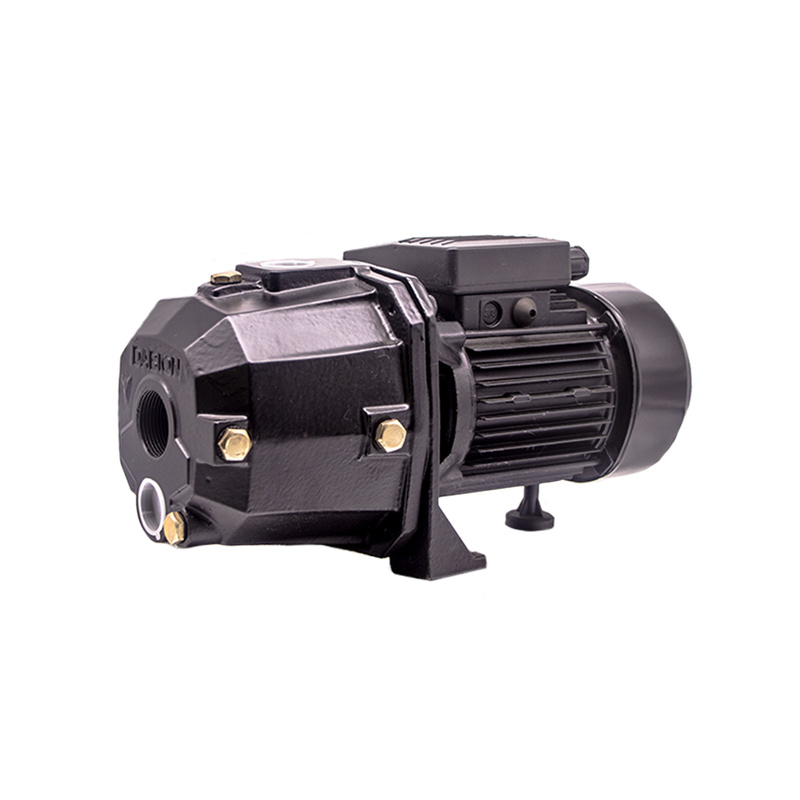

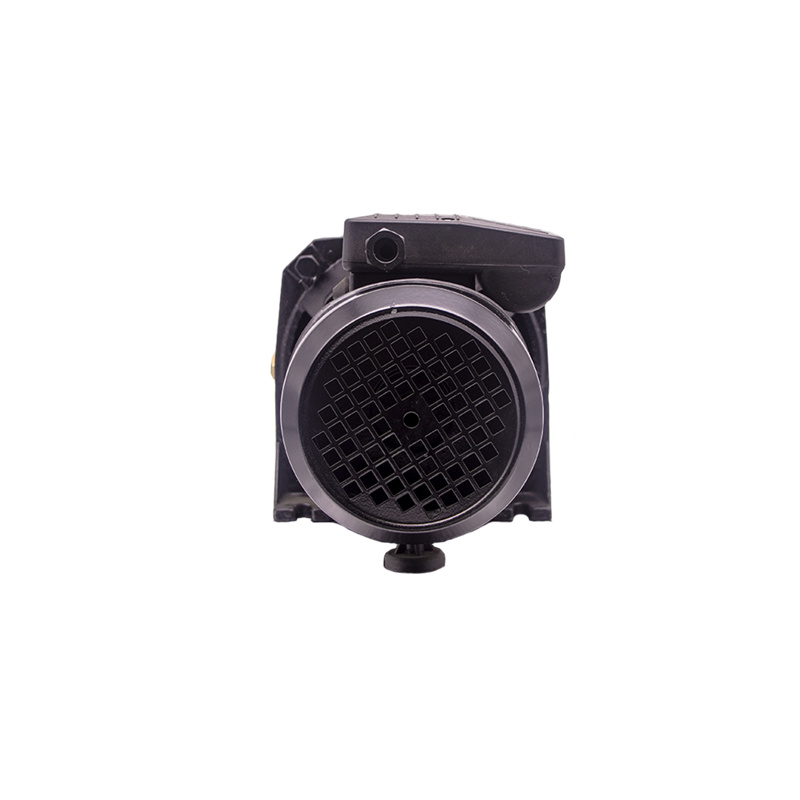

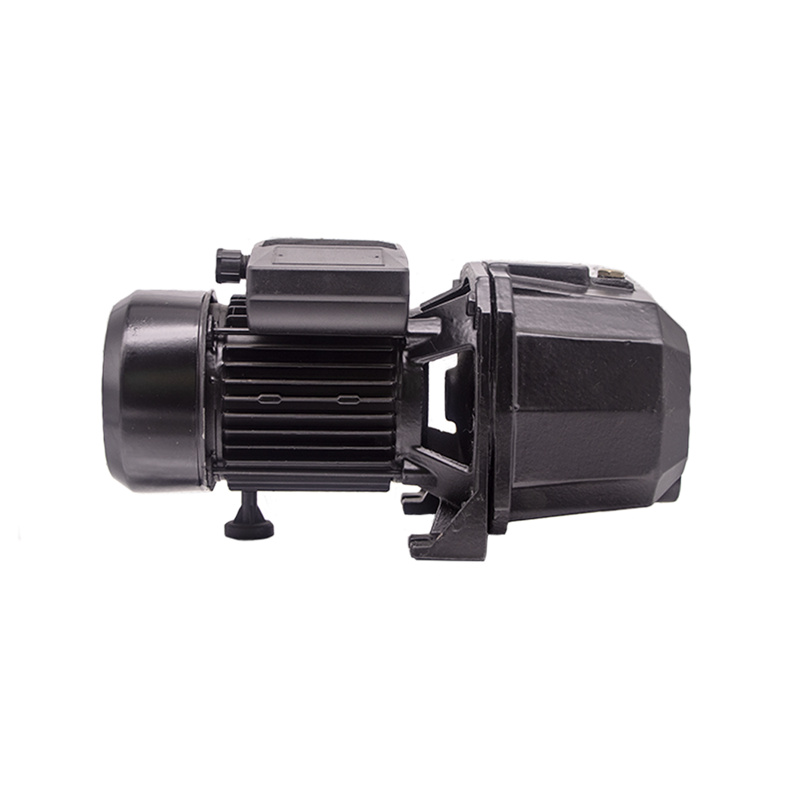

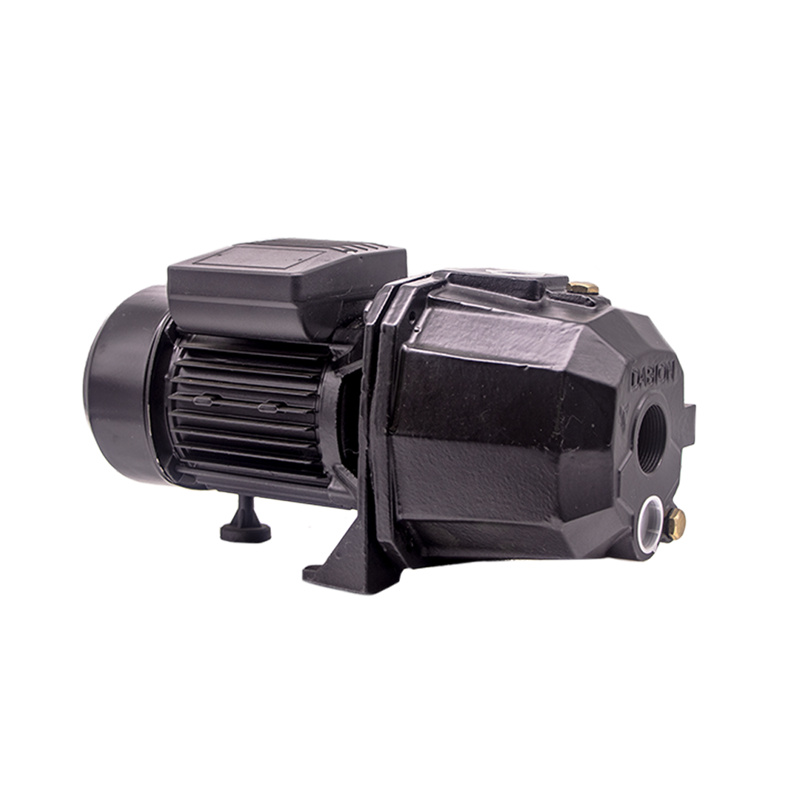

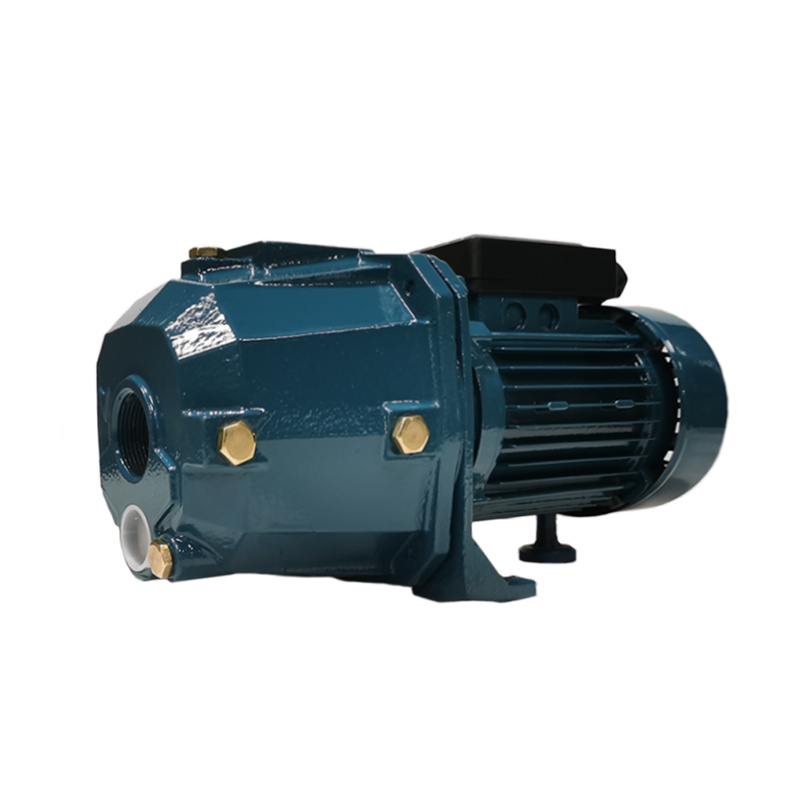

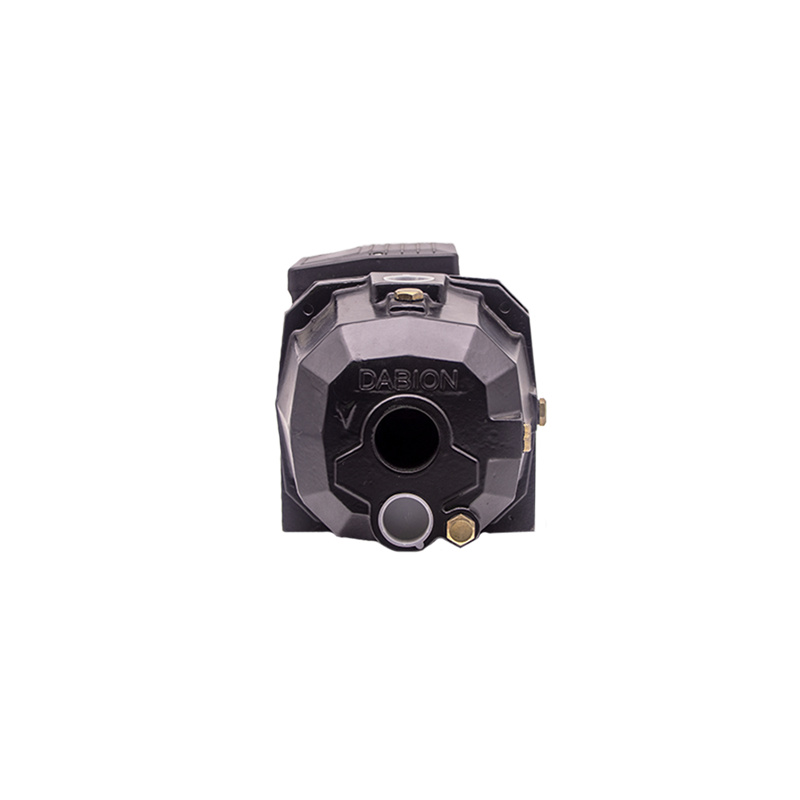

PICTURES OF ITEMS
